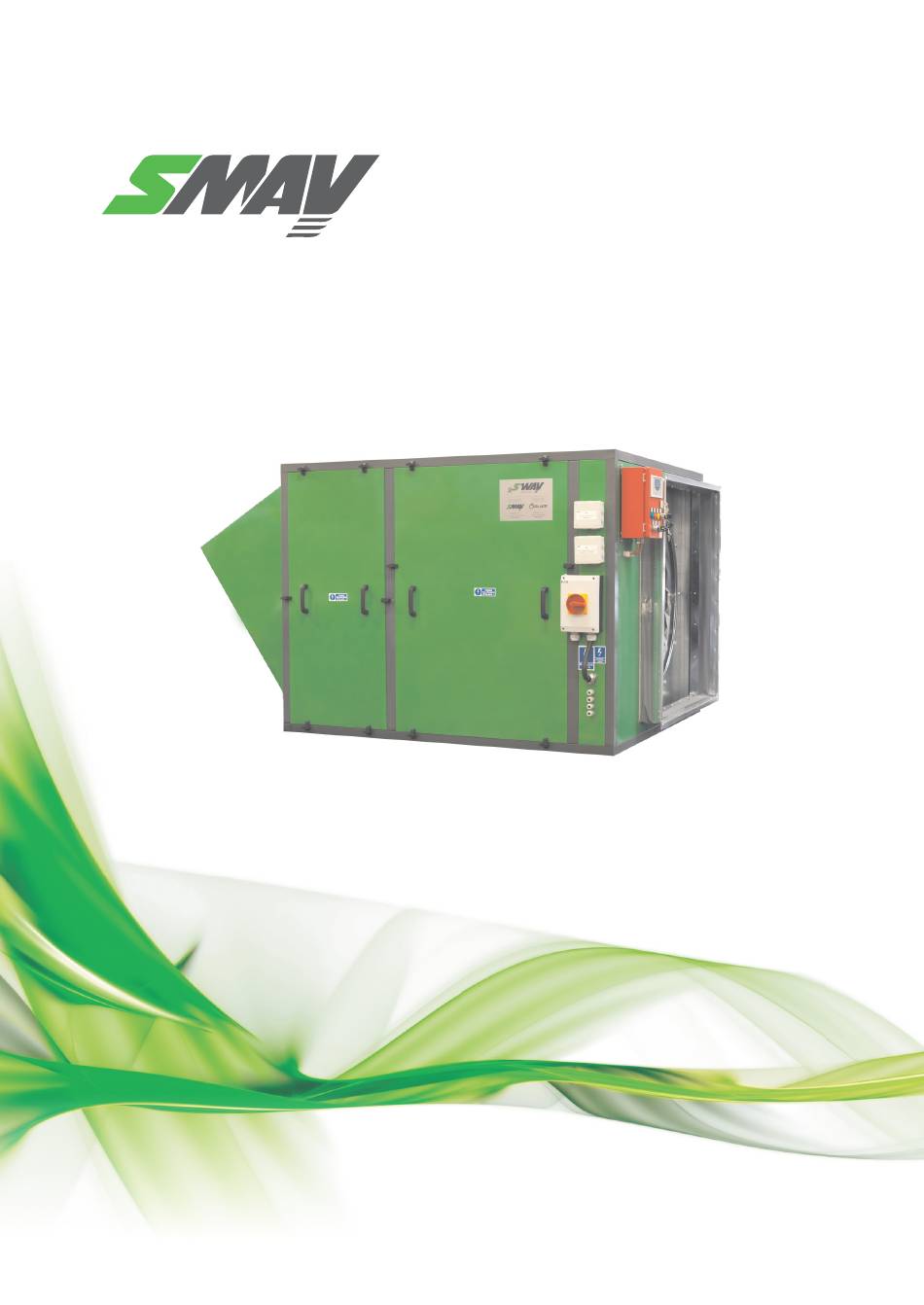

SMAY iSWAY-FC Manual

Pressure differential kit in smoke and heat control systems
Hide thumbs Also See for iSWAY-FC:

Advertisement

Quick Links

Download this manual
Pressure differential kit
in smoke and heat control systems
®
iSWAY-FC
®
iSWAY-FC – series unit
The functionality and reliability in hydraulic,
electrical and electronic aspects in accordance with:
Technical Approval ITB AT-15-9020/2012,
confirmed by Certificate of Conformity ITB-2189/W
and the national Declaration of Conformity Smay LLC No. 282/2013
SMAY LLC
/
Ciep³ownicza St. 29
/
31-587 Kraków
tel.
680 20 80
/
fax.
680 20 89
/
e-mail: info@smay.eu
+48 12
+48 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the iSWAY-FC and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY iSWAY-FC

Summary of Contents for SMAY iSWAY-FC

  • Page 1 The functionality and reliability in hydraulic, electrical and electronic aspects in accordance with: Technical Approval ITB AT-15-9020/2012, confirmed by Certificate of Conformity ITB-2189/W and the national Declaration of Conformity Smay LLC No. 282/2013 SMAY LLC Ciep³ownicza St. 29 31-587 Kraków tel.
  • Page 2 (each with its own air supply point ® in reference to the fire floor. It is also possible the use iSWAY-FC units to control the pressure in the air supply duct.
  • Page 3 (reference) Escape corridor Staircase ® Cables connecting TSS with iSWAY-FC Fire brigades access level x - in the case of application of the PN-EN 12101-6 standard, the twin-air intake module should be applied Figure 2. Multiple injection air supply to the staircase Note: 1.
  • Page 4 3. P-MACF - remote pressure sensor connected to iSWAY-FC unit by Local FireBUS loop. ® In case when iSWAY-FC unit is not located directly at the top of protected space what could create the need to carry out a long impulse tubes of pressure measurement, a replacement solution in the form of P-MACF ®...
  • Page 5 (PDS). ® iSWAY-FC units with a single air supply point to the protected space do not require vertical air supply ducts to pressurize the staircase. Spared area can be used to build in air ductwork used to pressurize fire-fighting lobbies.
  • Page 6 - compact pressurization unit with integrated control system Application ® iSWAY-FC-D - with pressure sensor P-MACF and regulator MAC-FC – fire-fighting lobbies pressurization system capable to supply constant compensative air volume to the smoke extracted corridors. Additional unit supplying air to the staircases or lift shafts.

  • Page 7: Emergency Mode

    (with regulators MAC-D Min is equipped with control system type “D” (FC-D). ® 8. iSWAY-FC unit designed to protect high rise staircases (reversible flow PDS), is equipped with control system type “R” (FC-R). The above technical solution reduces total power supply and communication cables length, the demand for electricity and eliminates the need for pressure regulating dampers that take up a lot of space along with its ®...
  • Page 8 Location in the building and units options Thanks to a compact structure and small size, the devices from iSWAY-FC series units can be located in almost any place, both indoors and outdoors. A wide range of air supply fans with different capacities and available pressures enables number of possible locations at any floor of the building at the roof or at the ground level.
  • Page 9 After determining the direction of assembly it is recommended to remove drain holes plugs Ø 14 in the bottom ® profiles of the device housing. M8 mounting hole locations have been set so to allow to mount iSWAY-FC unit in any direction according to the Drawing 9.1. Vertical assembly requires a special foot, which is available in range ®...
  • Page 10 ® In the case of mounting of iSWAY-FC units in the facility in the amount of 1 to 3 (without the fire-fighting lobbies), for such system the common Control - Signal Board shall be applied (TSS-1 to TSS-3 respectively). For higher number of devices or complex PDS the use of Operating Conditions Monitoring Device (MSPU) together with Control Board (TS) shall be applied.
  • Page 11 Operating Conditions Monitoring Device (MSPU) Operating Conditions Monitoring Device (MSPU) is a supplement of the SMAY Sp. z o.o. offer in the range of smoke and heat control systems. The purpose of the unit is to control the data transmission channels and monitoring of the operating parameters of the key ®...
  • Page 12 The maximum number ® of sensors (addresses) on the loop is 32, except that the 2 addresses are reserved for iSWAY-FC-D unit which pressurizes fire-fighting lobbies. In case of fire, P-MACF sensor at the fire floor a Fire Alarm Signal (FAS), ®...
  • Page 13 Similarly to P-MACF ® it is connected to iSWAY-FC-D unit by bus loop of Local FireBUS. Each regulator is supplied with 24VDC power supply. The maximum number of sensors (addresses) on the loop is 32, except that the 2 addresses are ®...
  • Page 14 Smoke detector in the duct housing ® All devices from iSWAY-FC series are equipped with a smoke detector located inside the housing that informs about the possibility of secondary smoke transport to the protected space. When the smoke is detected the unit is automatically turned off or an optional alarm is reported informing about the risk of sucking in the smoke.
  • Page 15 Anti-Frost System ® The new version of iSWAY-FC units introduces system preventing shut-off dampers from freezing in extremely low temperatures. To seal the dampers a specialist sealing system resistant to low temperatures was used. Also used was directional radiator (IR heater) system that is switched on automatically according to the set and measured temperature.

  • Page 16: Principle Of Operation

    / max). ® The iSWAY-FC unit was tested in a I.F.I. Institute for Industrial Aerodynamics in Aachen, Germany in accordance with the current test procedure constituting part of the revised European standard revEN 12101-6. The tests were conducted for the largest unit of the type of series with 15 kW motor for the air supply fan capacity of 48 500 m / h, in the range of leakage from 300 m / h to 36 000 m / h.
  • Page 17 ® iSWAY-FC - compact pressurization unit with integrated control system Principle of operation ® Figure 12. Official summary of the test parameters of iSWAY-FC unit. version 5.2.6 w w w . s m a y . p l...

  • Page 18: Operation Modes

    (monitoring and control). ® In the SAFETY WAY system the 2 FireBUS loops can be distinguished: 1. „Global FireBus” interconnects in the loop MAC-FC (R) (iSWAY-FC (D) (R) and TSS or TS regulators (depending on system configuration). The tasks: - the transfer of Fire Alarm Signal (FAS) information between devices,...

  • Page 19: Dimensions And Weight

    1700 1500 1280 1200x1200 1000x1000 ® Table. 1. Summary of dimensions of the iSWAY-FC units. ® iSWAY-FC unit – the summary of hydraulic and electrical parameters Power Available Active Protection inside Suggested power Apparent Suggested protection Weight Capacity...
  • Page 20 (Figure 17.). ® Among other default versions of iSWAY-FC units, is a version with air intake module (Figure 18.) and the smallest unit “0” designated for vertical assembly with adjustable air intake module (Figure 19.). In order to achieve the declared capacity of the air supply fan, directly next to the unit in the direction of the airflow there should be a section of straight duct with minimum length equal to the diameter of the air supply fan applied.
  • Page 21 - iSWAY-FC intake air flow direction - iSWAY-FC outtake ® Figure 15. Basic version of the iSWAY-FC unit with flexible connectors (KE) at the air intake/supply sides (ductwork assembly version). Stand-by air intake damper Stand-by air intake damper Air flow direction ®...
  • Page 22 Structure performance options Detail A ® Figure 18. Vertical assembly version of the smallest „0” iSWAY-FC unit – adjustable air intake closed Detail A ® Figure 19. Vertical assembly version of the smallest „0” iSWAY-FC unit – adjustable air intake opened w w w .

  • Page 23: Electrical And Communication Connections

    Actuator BLE24-Belimo Control and monitoring room e.g. BMS ® Figure 20. Block diagram of the connection of TSS-1 Board with a single iSWAY-FC unit. Control – signal board Multiblade air damper Actuator BLE24-Belimo Measurement of static pressure differential – pulse tubes e.g. PVC Ö 6 Control and monitoring room e.g.
  • Page 24 – pulse tubes e.g. PVC Ö 6 Control and monitoring room e.g. BMS ® Figure 22. Block diagram of the connection of TSS-3 Board with 3 iSWAY-FC units w w w . s a f e t y w a y . p l version 5.2.6...
  • Page 25 Junction box PZ Power supply/control cable Control Board, 24 VDC (dual intake) Damper regulator with integrated ® number of iSWAY-FC type units pressure sensor MAC-D Min Guaranteed power supply cable 24 VDC P-MACF, MAC-D Min Guaranteed power supply cable Multiblade air damper...
  • Page 26 Service side ® Figure 24. Minimum distance of iSWAY-FC units from fixed structural elements Twin-Air Intake Module REQUIREMENTS FOR DUCTWORKS SUPPLYING THE AIR TO THE UNIT (FROM THE INTAKE) – TWIN-AIR INTAKE...
  • Page 27 PWIIS-SRC damper Identification ® Rating plate with a list of basic information on the given device is placed on the housing of each iSWAY-FC unit. Typ – specifies the device's technical specifications, e.g. FC 1.20 S/N – serial number Rok – production year –...
  • Page 28 T-MAC - 8 szt P-MACF - 16 szt NOTE: Smay LLC company, with orders of more than 3 iSWAY-FC devices designated to handle a single object, recommends Monitoring of Working Conditions of Machines (MSPU) along with the Signal Board (TS), which allow for the integration and central monitoring of aeration unit.
