Sturtevant Richmont EMTSK 36/4 Operating Instructions

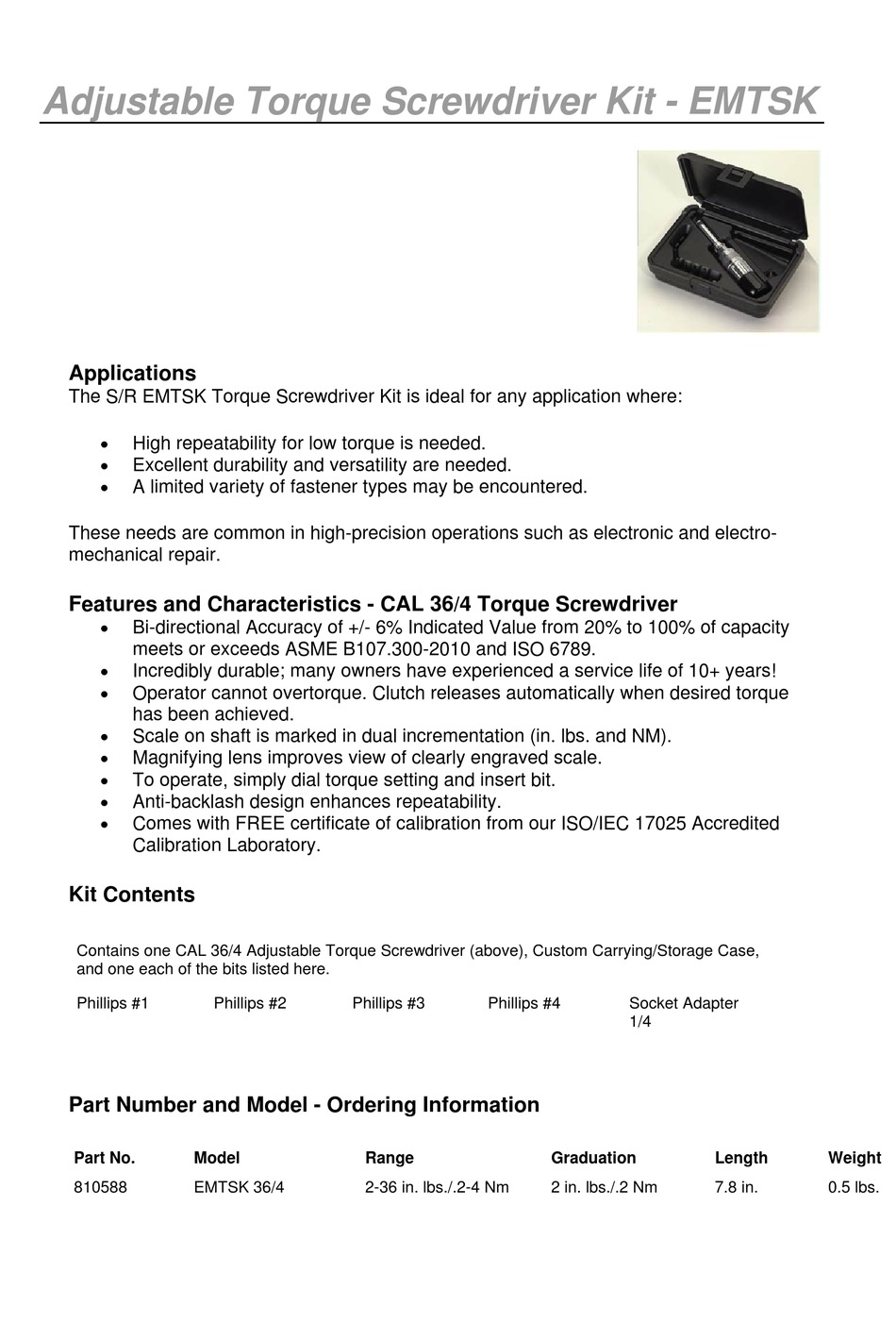

Adjustable Torque Screwdriver Kit - EMTSK

Applications

The S/R EMTSK Torque Screwdriver Kit is ideal for any application where:

High repeatability for low torque is needed.

Excellent durability and versatility are needed.

A limited variety of fastener types may be encountered.
These needs are common in high-precision operations such as electronic and electro-
mechanical repair.

Features and Characteristics - CAL 36/4 Torque Screwdriver


Bi-directional Accuracy of +/- 6% Indicated Value from 20% to 100% of capacity
meets or exceeds ASME B107.300-2010 and ISO 6789.

Incredibly durable; many owners have experienced a service life of 10+ years!

Operator cannot overtorque. Clutch releases automatically when desired torque
has been achieved.

Scale on shaft is marked in dual incrementation (in. lbs. and NM).

Magnifying lens improves view of clearly engraved scale.

To operate, simply dial torque setting and insert bit.

Anti-backlash design enhances repeatability.

Comes with FREE certificate of calibration from our ISO/IEC 17025 Accredited
Calibration Laboratory.

Kit Contents

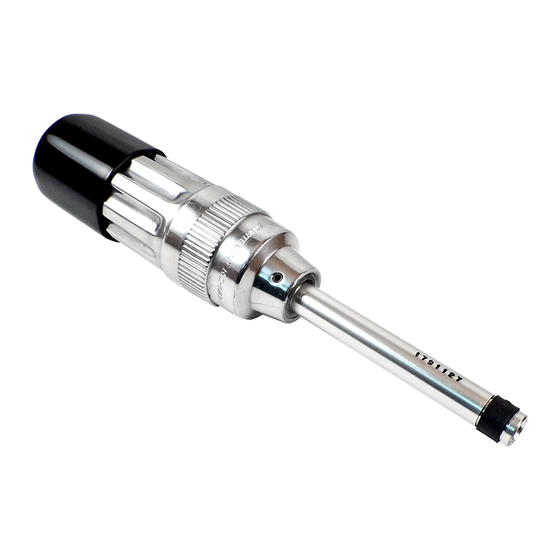

Contains one CAL 36/4 Adjustable Torque Screwdriver (above), Custom Carrying/Storage Case,
and one each of the bits listed here.
Phillips #1

Part Number and Model - Ordering Information

Part No. Model
810588 EMTSK 36/4
Phillips #2 Phillips #3
Range
2-36 in. lbs./.2-4 Nm
Phillips #4 Socket Adapter
1/4
Graduation
2 in. lbs./.2 Nm
Length Weight
7.8 in. 0.5 lbs.
