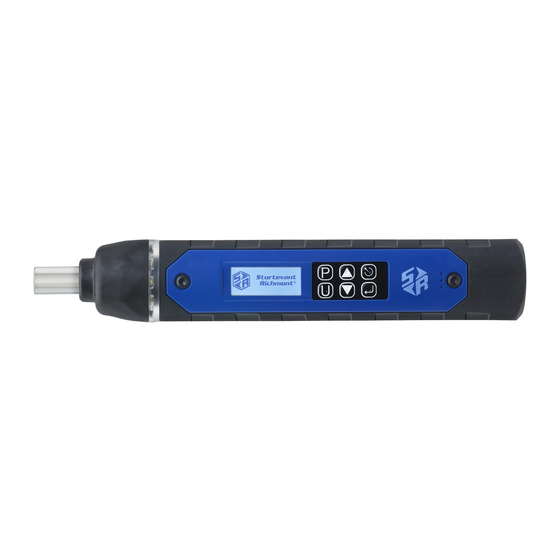

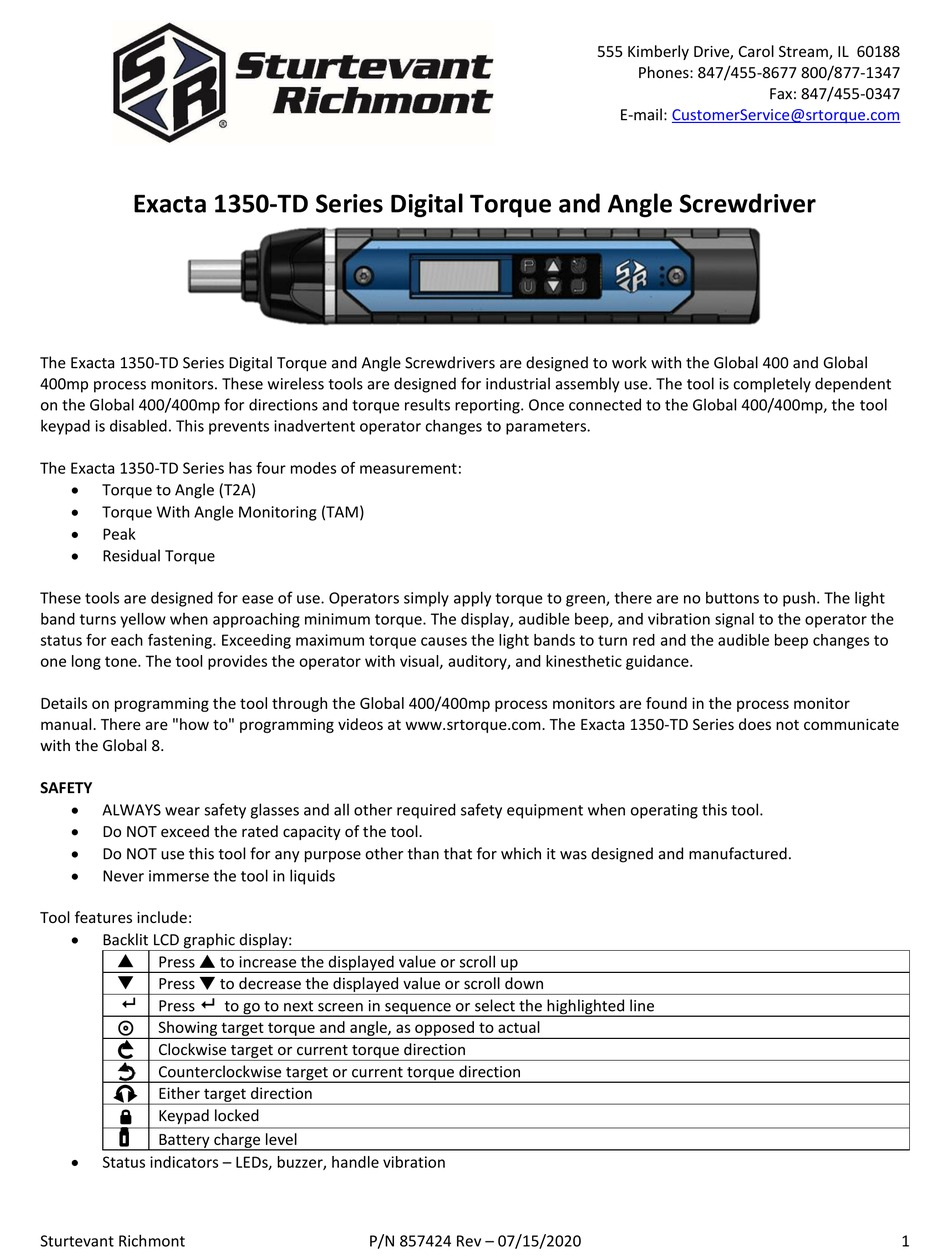

Exacta 1350-TD Series Digital Torque and Angle Screwdriver
The Exacta 1350-TD Series Digital Torque and Angle Screwdrivers are designed to work with the Global 400 and Global
400mp process monitors. These wireless tools are designed for industrial assembly use. The tool is completely dependent
on the Global 400/400mp for directions and torque results reporting. Once connected to the Global 400/400mp, the tool
keypad is disabled. This prevents inadvertent operator changes to parameters.
The Exacta 1350-TD Series has four modes of measurement:
•
Torque to Angle (T2A)
•
Torque With Angle Monitoring (TAM)
•
Peak
•
Residual Torque
These tools are designed for ease of use. Operators simply apply torque to green, there are no buttons to push. The light
band turns yellow when approaching minimum torque. The display, audible beep, and vibration signal to the operator the
status for each fastening. Exceeding maximum torque causes the light bands to turn red and the audible beep changes to
one long tone. The tool provides the operator with visual, auditory, and kinesthetic guidance.
Details on programming the tool through the Global 400/400mp process monitors are found in the process monitor
manual. There are "how to" programming videos at www.srtorque.com. The Exacta 1350-TD Series does not communicate
with the Global 8.
SAFETY
•
ALWAYS wear safety glasses and all other required safety equipment when operating this tool.
•
Do NOT exceed the rated capacity of the tool.
•
Do NOT use this tool for any purpose other than that for which it was designed and manufactured.
•
Never immerse the tool in liquids
Tool features include:
•
Backlit LCD graphic display:
 Press  to increase the displayed value or scroll up
 Press  to decrease the displayed value or scroll down
 Press  to go to next screen in sequence or select the highlighted line
⊚
Showing target torque and angle, as opposed to actual
Clockwise target or current torque direction
Counterclockwise target or current torque direction
Either target direction
��
Keypad locked
Battery charge level
•
Status indicators – LEDs, buzzer, handle vibration
