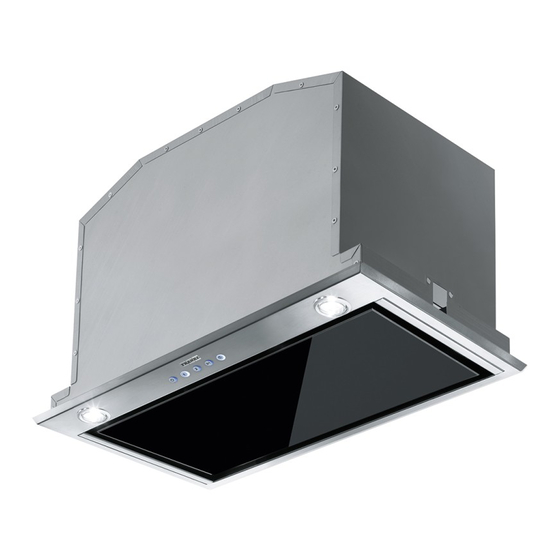

Franke FBI 537 XS/BK Instructions For Use And Installation Advice
Hide thumbs
Also See for FBI 537 XS/BK:
- Instructions for use manual (76 pages) ,
- Instructions for use and installation (68 pages)
Table of Contents
Advertisement
Quick Links
Instructions for use and installation
GB
Cooker Hood
Istruzioni per l'uso e l'installazione
IT
Cappa
Mode d'emploi et installation
FR
Hotte de Cuisine
Bedienungsanleitung und Installation
DE
Dunstabzugshaube
Kullanım ve montaj talimatları
TR
Davlumbaz
Instrukcja obsługi i instalacji
PL
Okap kuchenny
Інструкція з експлуатації і встановлення
UK
Витяжка
Uživatelská Pøíruèka
CZ
Odsavač par
FBI 537 XS/BK
FBI 537 XS/WH
FBI 737 XS/BK
FBI 737 XS/WK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Franke FBI 537 XS/BK
Summary of Contents for Franke FBI 537 XS/BK
- Page 1 Hotte de Cuisine Bedienungsanleitung und Installation Dunstabzugshaube Kullanım ve montaj talimatları Davlumbaz Instrukcja obsługi i instalacji Okap kuchenny Інструкція з експлуатації і встановлення Витяжка Uživatelská Pøíruèka Odsavač par FBI 537 XS/BK FBI 537 XS/WH FBI 737 XS/BK FBI 737 XS/WK...
- Page 2 INDEX SAFETY INFORMATION ................................. 4 CHARACTERISTICS ................................7 INSTALLATION ..................................8 USE ...................................... 10 CARE AND CLEANING ................................. 11 INDICE INFORMAZIONI SULLA SICUREZZA ............................ 13 CARATTERISTICHE ................................16 INSTALLAZIONE ................................. 17 USO ...................................... 19 PULIZIA E MANUTENZIONE ..............................20 SOMMAIRE CONSIGNES DE SÉCURITÉ...
- Page 3 ІНДЕКС ІНФОРМАЦІЯ З ТЕХНІКИ БЕЗПЕКИ ............................ 58 ХАРАКТЕРИСТИКИ ................................61 ВСТАНОВЛЕННЯ ................................62 ВИКОРИСТАННЯ ................................64 ДОГЛЯД І ЧИЩЕННЯ ................................65 OBSAH INFORMACE O BEZPEČNOSTI ............................67 HLAVNÍ PARAMETRY ................................. 70 INSTALACE ..................................71 POUŽITÍ ....................................73 ČIŠTĚNÍ A ÚDRŽBA ................................74...
-
Page 4: Safety Information
SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. The wire connection has to be done by specialized technician. - Page 5 • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- Page 6 • The appliance is not to be used by persons (including children) with re- duced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Accessible parts may become hot when used with cooking appliances. •...
- Page 7 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Frame Directioned grid Reducer Flange ø 150-120 mm Flap Ref. Q.ty Installation Components Screws Screws 2,9 x 9,5 Screws 2,9 x 6,5 Q.ty Documentation Instruction Manual...
-
Page 8: Installation
INSTALLATION Fitting the Hood canopy BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS: • Disconnect the wires to the Commands at the connectors. • Disconnect the wires to the Light at the con- nectors. • The Hood can be installed directly on the underside of the wall unit. -
Page 9: Recirculation Version Air Outlet
Connections AIR OUTLET DUCTING VERSION When installing the Ducting version, join the Hood to the outlet duct using a rigid or flexible pipe ø150 or 120 mm, selection of which is at the discretion of the installation technician. • Insert flaps 11b on the Hood Canopy Outlet. Connecting the ø... - Page 10 Control panel BUTTON FUNCTIONS T1 Motor Turns the Motor off. T2 Speed Turns the Motor on at Speed one. Button lights up continuously. T3 Speed Turns the Motor on at Speed two. Button lights up continuously. T4 Speed When pressed briefly, turns the Motor on at Speed three. Button lights up continuously.
-
Page 11: Care And Cleaning
CARE AND CLEANING Opening Panel • Open the Panel by pulling it. • Clean the outside with a damp cloth and neutral detergent. • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances. -
Page 12: Replacing The Activated Charcoal Filter
Activated charcoal filter (Recirculation version) These filters are not washable and cannot be regenerat- ed, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage. REPLACING THE ACTIVATED CHARCOAL FILTER • Open the comfort panels pulling them downwards. •... - Page 13 Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it 991.0531.761_ver7 - 191031 - D00004333_06...
