Summary of Contents for Geutebruck G-ST 2000+

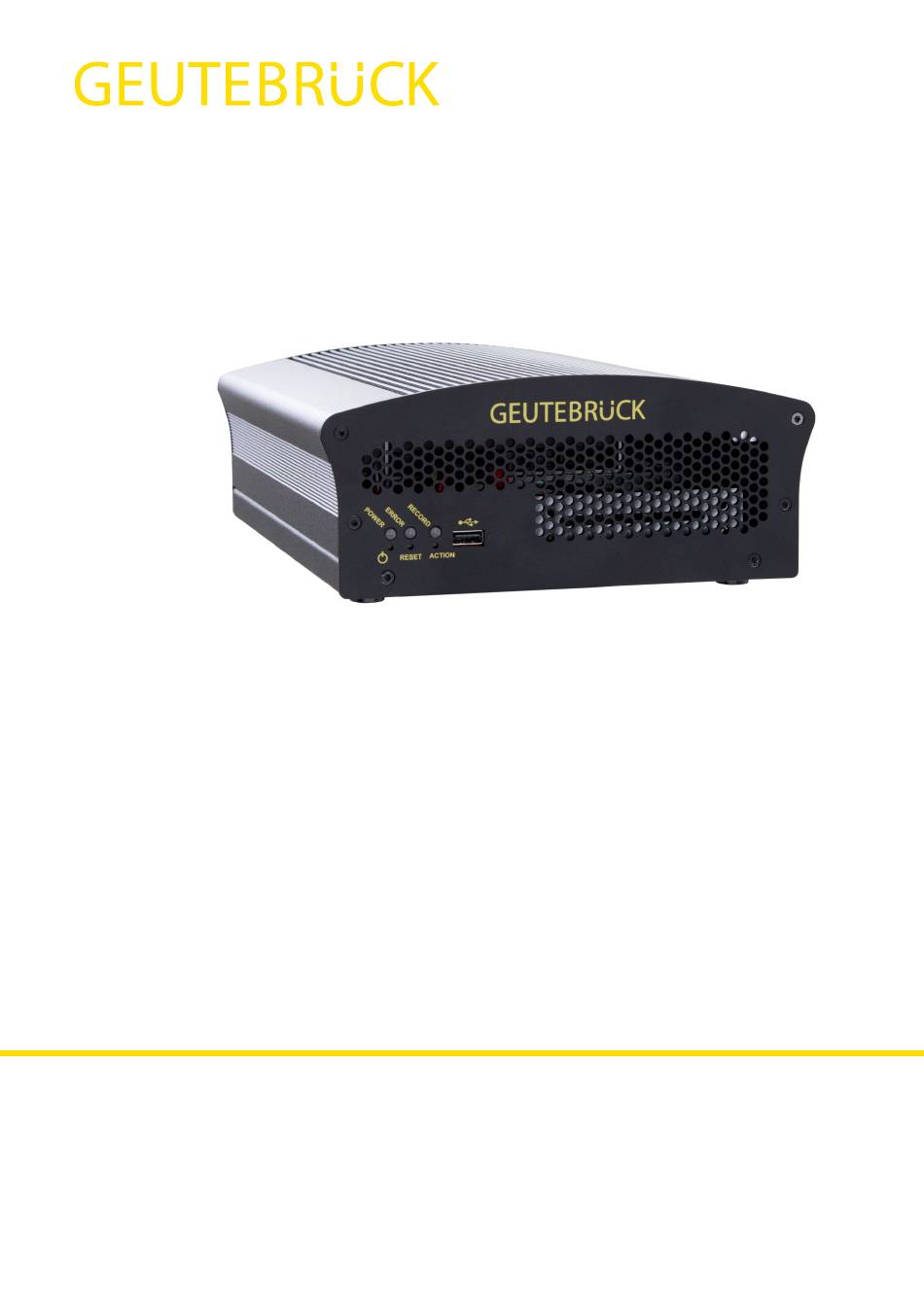

- Page 1 G-ST 2000+ Installation manual...
-
Page 2: Introduction
Introduction The information in this document can be changed without prior notice. Without the express written consent of GEUTEBRÜCK, no part of these documents may be reproduced or transferred, either mechanically or elec- tronically, for any use. © 2020 by GEUTEBRÜCK All rights reserved. These operating instructions represent the current technological state of our devices. -
Page 3: Table Of Contents
Introduction Table of Contents Introduction ..................1 General instructions and safety ............. 3 Intended use ....................3 Description and definition of signs .............. 3 General safety instructions ................. 4 Device description ................5 G-ST 2000+ at a glance ................5 Transportation, storage, initial commissioning ........... -
Page 4: General Instructions And Safety
General instructions and safety General instructions and safety Intended use The G-ST 2000+ is a high-performance digital video management system based on state-of-the-art processor architectures. The G-ST supports direct recording and playback of network cameras. The record- ing rate depends on the type of network camera. Standard and megapixel cameras can be recorded and displayed in the relevant format in all resolutions supported by the camera. -
Page 5: General Safety Instructions
General instructions and safety General safety instructions When using the device or performing maintenance on it, the following safety instruc- tions are to be observed to protect the operator, the service technician and the de- vice: During design and construction of the device, the acknowledged state-of-the-art ... -
Page 6: Device Description

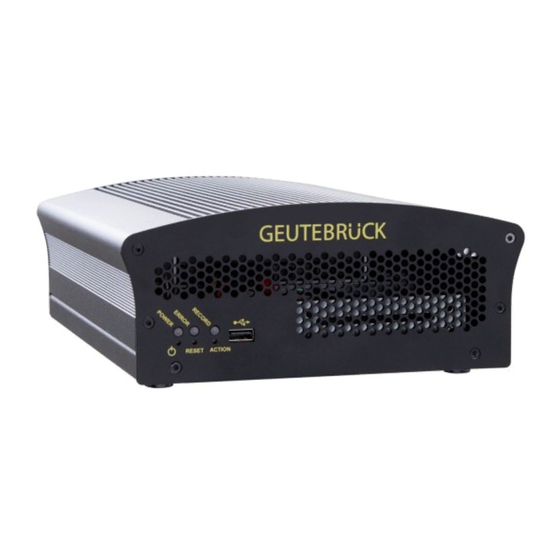

Device description Device description G-ST 2000+ at a glance Recommended uses and applications The G-ST 2000+ is an ideal plat- form for Geutebrück software, par- ticularly for smaller installations with a compact design. The device is equally suitable as a satellite in complex, networked ap- plication scenarios. -
Page 7: Transportation, Storage, Initial Commissioning
Device description Transportation, storage, initial commissioning Transportation and storage The device is shipped from the factory in a shipping box with special cushion pack- ing. This protects the device from damage during transportation. Whenever possible, use the original device packaging. Transportation and storage conditions ... -
Page 8: Device Views
Device description Device views Front view Figure: Front view Power: Power indicator LED Power button Error: Error LED Lights permanently in the event of a malfunction. Reset button Record: Recording LED Flashes or lights up permanently when images are passed on to the database. "Action”... -
Page 9: Rear View
Device description Rear view G-ST 2000+ 9 10 Figure: Rear view G-ST 2000+ basic device Connection for voltage supply (12 VDC) Control inputs for connecting external contacts for the event-based image recording/relay outputs Serial RS-232 interface C OM1 + COM2 (9-pin Sub-D connector) Display port graphics output for connecting PC monitor (2x) Network connection 1 (Ethernet 10/100/1000 Base/T –... - Page 10 Device description The position of the connections may vary! Please check the accompanying mainboard manual if the configuration is different. G-ST 2000+ (with optional analog extension card) 10 11 Figure: Rear view G-ST 2000+ (with analog kit-H4 hot) Connection for voltage supply (12 VDC) Control inputs for connecting external contacts for the event-based image recording/relay outputs Serial RS-232 interface C OM1 + COM2 (9-pin Sub-D connector)
-
Page 11: Installation And Commissioning
Installation and commissioning Installation and commissioning Requirements Checking conditions Before you integrate your G-ST into an existing network, you must ensure that the following conditions are met: There is a functioning network with TCP/IP protocol (100/1000 Mbit Ethernet). For other networks, the successful integration of G-ST must first be demon- strated. -
Page 12: Preparations
Installation and commissioning Preparations Before you begin establishing connections and specifying configurations, you should familiarize yourself with the hardware and use of your system: Number and manufacturer of the recording cameras. Number and type of input contacts for event recording. -
Page 13: Installation Of A Hard Disk For The Video Database
Installation and commissioning Installation of a hard disk for the video database If you have purchased the G-ST 2000+ without a hard disk, please follow these steps to install one. Please note that opening the device can affect warranty terms. This should only be carried out by qualified staff. -
Page 14: Connecting Devices
Installation and commissioning Installing the HDD The holder of the HDD in the cover is secured with three screws. These must be loosened so that the hard disk can be inserted and screwed in with the four screws. The holder must then be screwed back on. The power supply must then be plugged in, and the hard disk and main- board must be connected using the S-ATA data cable. -
Page 15: Turning On The Device
Installation and commissioning Do not connect a cable shield to a ground connection (pin). Keep the twisted part of the cable shield in the plug (socket) for as little time as possible. Turning on the device Before turning the unit on, please observe the following safety information. - Page 16 Installation and commissioning The G-ST comes delivered with English as its language setting. To change the language displayed in Windows, follow these steps: Add the desired language. Define the language as the primary language. 1. Double click on the Language icon and click on “...
-
Page 17: Integrating The Device Into The Network
Installation and commissioning 5. By clicking on your country language and on Options you access the activa- tion menu for the primary language. 6. Activate your language by clicking " Make this the primary language " and fol- low the instructions. Integrating the device into the network It is best to have the following work performed by an administrator:... -
Page 18: Working With The G-St 2000
Working with the G-ST 2000+ Working with the G-ST 2000+ Assigning contacts Digital inputs The G-ST has 8 control inputs, each with an internal pull-up resistor of 1 kΩ after +5 The control inputs are distributed onto a 25-pin Sub-D socket (input 1-8). This is located on the back of the device. - Page 19 Working with the G-ST 2000+ Digital outputs Each unit has 4 floating digital outputs. Like the digital inputs, these are distributed onto the two 25-pin sub-D socket (relay 1-4). Using the digital outputs, you can switch external devices, for example, to report sys- tem errors.
-
Page 20: Using Other Connections
Working with the G-ST 2000+ Using other connections Analog video connections (optional) Connect FBAS cameras or other FBAS signal sources to the BNC input jacks of the video inputs "VID1", "VID2", etc. Depending on the base unit, you have: 4 FBAS inputs for G-ST 2000+ with Analog kit-H4 hot, item No. 1.02840 ... -
Page 21: External Connections
Working with the G-ST 2000+ External connections The following external connections are available on the rear of the device: PS2 ports Mouse and keyboard and be connected to the PS2 ports. Figure: PS2 ports USB 2.0/3.0 You can connect external devices to the 5 (2 USB 2.0, 2 USB 3.0 rear / 1 front USB 2.0) available USB ports Figure: USB 2.0/3.0 DisplayPort for monitor... -
Page 22: Turning Off The Device
Working with the G-ST 2000+ Serial port COM1 and COM2 At the COM1/COM2 port, there is a an RS-232 interface via 9-pin Sub-D sock- ets RS-232. Figure: COM1 and COM2 The 9-pin COM plugs are assigned by default as follows: Figure: Pin assignment for COM connection –... -
Page 23: Resetting The System To Factory Settings
Resetting the system to factory settings Resetting the system to factory settings Recovery DVDs are provided with your G-ST. This allows for the recovery of the software in- stalled at delivery as well as the original settings. Please note that the recovery process should only be carried out by qualified personnel, as all data on the C drive will be overwritten! Back up your settings on an external disk beforehand. - Page 24 Resetting the system to factory settings 6. In the “Troubleshoot” menu, click the menu button "GEUTEBRUECK Recovery Solution" (restoring a drive). 7. Select the size of the Windows partition and – confirm by clicking on “RECOVERY START”. 8. Confirm the disk partitioning by clicking on “Yes”. System recovery will now start.
- Page 25 Technical alterations reserved. GEUTEBRÜCK GmbH Im Nassen 7-9 | D-53578 Windhagen | Tel. +49 (0)2645 13 7-0 | F ax-999 | E-mail: info@geutebrueck.com | Web: www.geutebrueck.com...
