CADMAN 6003

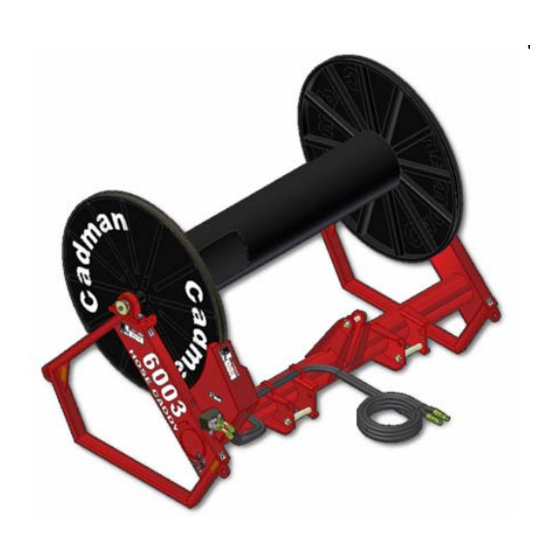

3-Point Hitch Hose Caddy
OPERATOR'S, PARTS and
MAINTENANCE MANUAL
2007 EDITION
TR-MAN-6003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6003 and is the answer not in the manual?

Questions and answers

Related Manuals for Cadman 6003

Summary of Contents for Cadman 6003

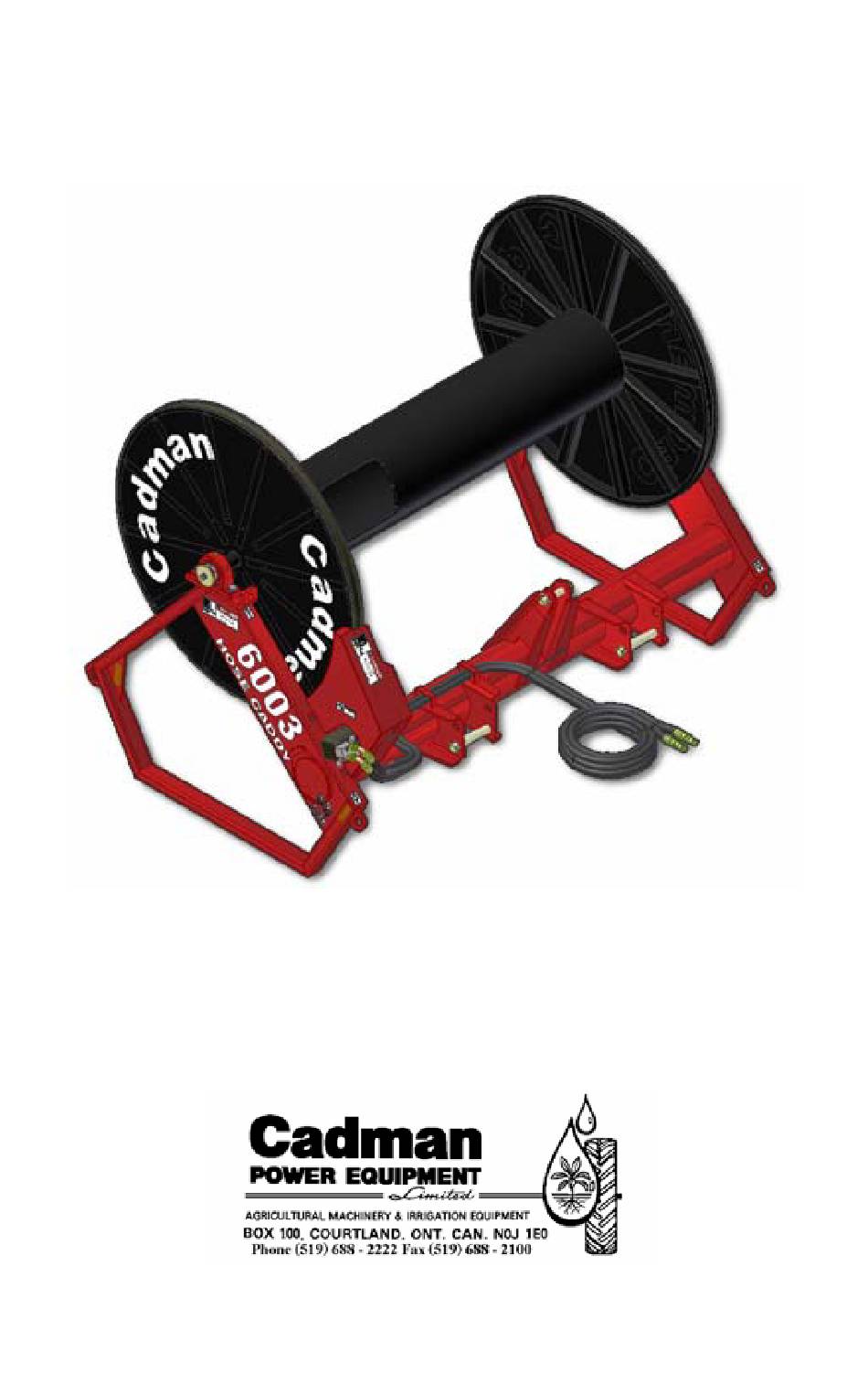

  • Page 1 CADMAN 6003 3-Point Hitch Hose Caddy OPERATOR’S, PARTS and MAINTENANCE MANUAL 2007 EDITION TR-MAN-6003...

  • Page 3: Table Of Contents

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Creation Revision date: date: 10MAR06 25JUN07 Ivon LeBlanc Ivon LeBlanc Table of Contents Table of Contents..................1 3-Point Hitch Hose Caddy ................3 Warranty Policy....................4 When Applying Liquid Manure ..............5 Safety Precautions..................6 Important Note .....................7 Safety Decals....................8 Unloading Your Hose Caddy ..............9...
  • Page 4 TR-MAN-6003 3-POINT HITCH HOSE CADDY Page 2 of 24...

  • Page 5: 3-Point Hitch Hose Caddy

    3-POINT HITCH HOSE CADDY 3-Point Hitch Hose Caddy We would like to thank you for purchasing your new Cadman 3-Point Hitch Hose Caddy. You have purchased a product of superior quality that will serve your needs for a long time provided you follow this manual and safety procedures.

  • Page 6: Warranty Policy

    This warranty will be considered void if any alterations or modifications have been made to the machine without the express written consent of CADMAN POWER EQUIPMENT LIMITED outlining the nature and the extent of such modifications.

  • Page 7: When Applying Liquid Manure

    TR-MAN-6003 3-POINT HITCH HOSE CADDY When Applying Liquid Manure Environmental concerns seem to be driving legislative agendas in many agricultural areas across the continent. Current and pending laws in many agricultural regions of North America are changing the ways in which the agricultural community is expected to manage their liquid animal waste products.

  • Page 8: Safety Precautions

    3-POINT HITCH HOSE CADDY Safety Precautions Please take the time to read and understand this manual so that unnecessary errors and risks are avoided. If you have any questions or concerns, please contact Cadman Power Equipment Ltd. or your local dealer/distributor. •...

  • Page 9: Important Note

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Important Note Things to keep in mind while using the Cadman 3-Point Hitch Hose Caddy are: • This Hose Caddy is capable of holding the following number soft hoses: Hose Size Quantity ∅ 6 in. X 660 ft ∅...

  • Page 10: Safety Decals

    • replace any missing decals • if applicable, include the current safety decal specified by Cadman Power Equipment Limited on any components installed during repair Figure 2 – Replace Decal img-00131.png To obtain the required replacement safety decals contact Cadman Power Equipment Limited.

  • Page 11: Unloading Your Hose Caddy

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Unloading Your Hose Caddy Complete the following instructions to unload your Hose Caddy… Step 1 Connect your tractors 3-Point Hitch to the Hose Caddy. You can mount this unit on most Category 2, 3, or 3N three-point hitch system and for more convenience a Quick Hitch system.
  • Page 12 TR-MAN-6003 3-POINT HITCH HOSE CADDY Step 3 Once on site, engage the tractor hydraulics so that the drum OPERATOR NOTE rotates away from the rear of the tractor. This will allow the soft Where field conditions hose to unreel. permit, always attempt...

  • Page 13: Loading Your Hose Caddy

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Loading Your Hose Caddy Prior to loading the Hose Caddy Cadman Power Equipment Limited recommends that you clean the hoses with a proper clean-out procedure (i.e. clean-out ball launcher or water flushing). Complete the following instructions to load your Hose Caddy…...
  • Page 14 TR-MAN-6003 3-POINT HITCH HOSE CADDY Page 12 of 24...

  • Page 15: Parts Section

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Parts Section From Serial Number: 0710603HC63 - 6003 Frame Assembly ∗ ..................14 Drive Assembly ..................16 Decals ∗.......................20 ∗ Up to Serial Number: 0700507HC63 - 6003 Drive Assembly ..................18 ∗ All assemblies marked with an asterisk apply to all model serial numbers.
  • Page 16 TR-MAN-6003 3-POINT HITCH HOSE CADDY Frame Assembly ∗ 6003 (All Models) Page 14 of 24...
  • Page 17 DECAL - AMBER REFLECTIVE 40-598 DECAL - RED REFLECTIVE 40-599 2 1/2 IN. PILLOW BLOCK BEARING 40-602 DECAL - CADMAN 3 PT HOSE DRUM 40-706 LABEL - LIFT POINT 40-933 LABEL - TIE DOWN POINT 40-947 LABEL - OPERATOR MANUAL...
  • Page 18 TR-MAN-6003 3-POINT HITCH HOSE CADDY Drive Assembly 6003 (From 0710603HC63) DETAIL A Page 16 of 24...
  • Page 19 TR-MAN-6003 3-POINT HITCH HOSE CADDY Drive Assembly 6003 (From 0710603HC63) Item Description Part Number SPROCKET RETAINING PLATE 01-314-B SPRING ADJUSTING ROD 06-635-B QD BUSHING 1 1/4 X 5/16 IN. KEYWAY 10-BUS-QD125 #80 RIVETED ROLLER CHAIN/LINK 10-CHN-80-1RIV #80 CONNECTING LINK 10-LNK-80CONN...
  • Page 20 TR-MAN-6003 3-POINT HITCH HOSE CADDY Drive Assembly 6003 (0700507HC63 or earlier) Page 18 of 24...
  • Page 21 TR-MAN-6003 3-POINT HITCH HOSE CADDY Drive Assembly 6003 (0700507HC63 or earlier) Item Description Part Number SPROCKET RETAINING PLATE 01-314-B SPRING ADJUSTING ROD 06-635-B QD BUSHING 1 1/4 X 5/16 IN. KEYWAY 10-BUS-QD125 #80 RIVETED ROLLER CHAIN/LINK 10-CHN-80-1RIV #80 CONNECTING LINK...
  • Page 22 TR-MAN-6003 3-POINT HITCH HOSE CADDY Decals ∗ 6003 (All Models) Page 20 of 24...
  • Page 23 DECAL - 3 POINT HOSE CADDY PANEL 40-530-6003 DECAL - AMBER REFLECTIVE 40-598 DECAL - RED REFLECTIVE 40-599 DECAL - CADMAN 3 PT HOSE DRUM 40-706 LABEL - LIFT POINT 40-933 LABEL - TIE DOWN POINT 40-947 LABEL - OPERATOR MANUAL...

  • Page 24: Required Maintenance

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Required Maintenance Prevention of mechanical failure is the goal of any good maintenance schedule. The secret to preventing unwanted down time is to adhere to a maintenance schedule suited to the way you use the equipment. Your maintenance schedule should include...
  • Page 25 N / A (see “Lubricants”) Table 2 - Required Maintenance - Before Storing NOTE: Proper storage of the Cadman 3-point Hitch Hose Caddy will greatly prolong the operational life of the unit. Lubricants Any good grade multi-purpose, waterproof grease is compatible with...

  • Page 26: Useful Information

    TR-MAN-6003 3-POINT HITCH HOSE CADDY Useful Information Length = 12 Inches 1 METER = 39.37 Inches 1 FOOT = 0.3048 Meter = 3.2808 Feet 1 ROD 1 MILE Area = 144 Square Inches 1 SQUARE FOOT = 0.0929 Square Meters...
