9
10
•
Wi-Fi (IEEE 802.11 b/g/n)
Internet Connection
•
Temperature measurement in
the range -50
100 probe
•
Temperature and Relative
Humidity measurement at device
location
o
o
C to 200
C with PT-

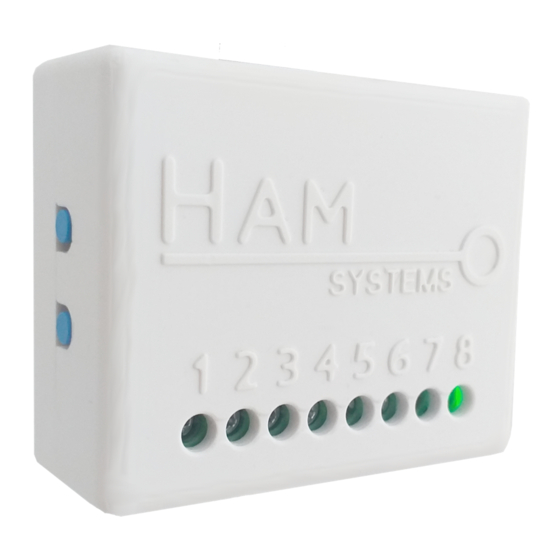

ThermoSense

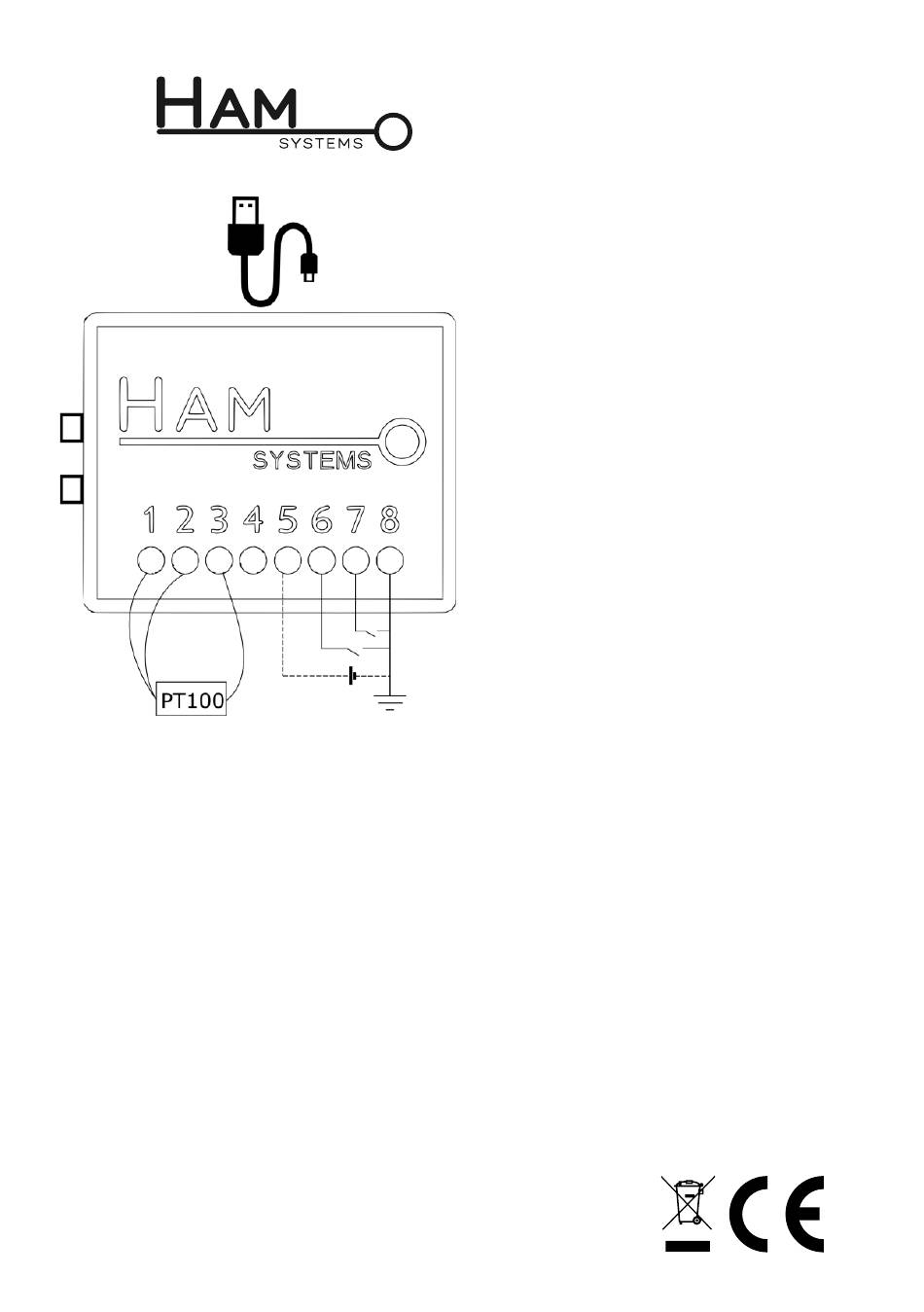

1. P1 probe wire
2. P1 probe wire (same color as 1)
3. P2 probe wire
4. NC
5. V+ power supply (alternative
to micro-USB)
6. G1 dry contact 1
7. G2 dry contact 2
8. GND dry contact common,
11
supply ground/negative
9. RESET
10. SETUP
11. Connection Status LED
•
Power supply through micro-USB
cable or DC power supply unit
•
RESET and SETUP button
•
Easy installation
•
Up to 2 dry contact inputs (for door
sensing and more)
Warranty: 2 years
1
Advertisement
Table of Contents
Related Manuals for Ham ThermoSense
Summary of Contents for Ham ThermoSense
- Page 1 ThermoSense 1. P1 probe wire 2. P1 probe wire (same color as 1) 3. P2 probe wire 4. NC 5. V+ power supply (alternative to micro-USB) 6. G1 dry contact 1 7. G2 dry contact 2 8. GND dry contact common, supply ground/negative 9.
- Page 2 5. Check the device is connected to the router and the internet by looking at the green LED. If the device is connected to the HAM platform, the green LED should be lit. 6. If the previous steps were successful and the device is connected to the internet, then you will be redirected to the a screen where you can monitor your device.
- Page 3 Setup alerts when a dry contact chang- your smartphone. es state, e.g. a door opens For Android: https://play.google.com/ • Setup alerts when temperature is out store/apps/details?id=com.ham.app of the desired range via SMS, e-mail, For iOS: https://itunes.apple.com/us/ phonecalls and push notifications app/ham-systems/id1262469559 •...
- Page 4 TROUBLESHOOTING The green LED does not turn on and The temperature measurement is way the device is reported as disconnected on the internet platform • Check that you have connected the If the green LED is not lit, then the PT-100 probe correctly and that device may be unable to be connected there is a good connection between...
