Summary of Contents for ennoLogic eH710T

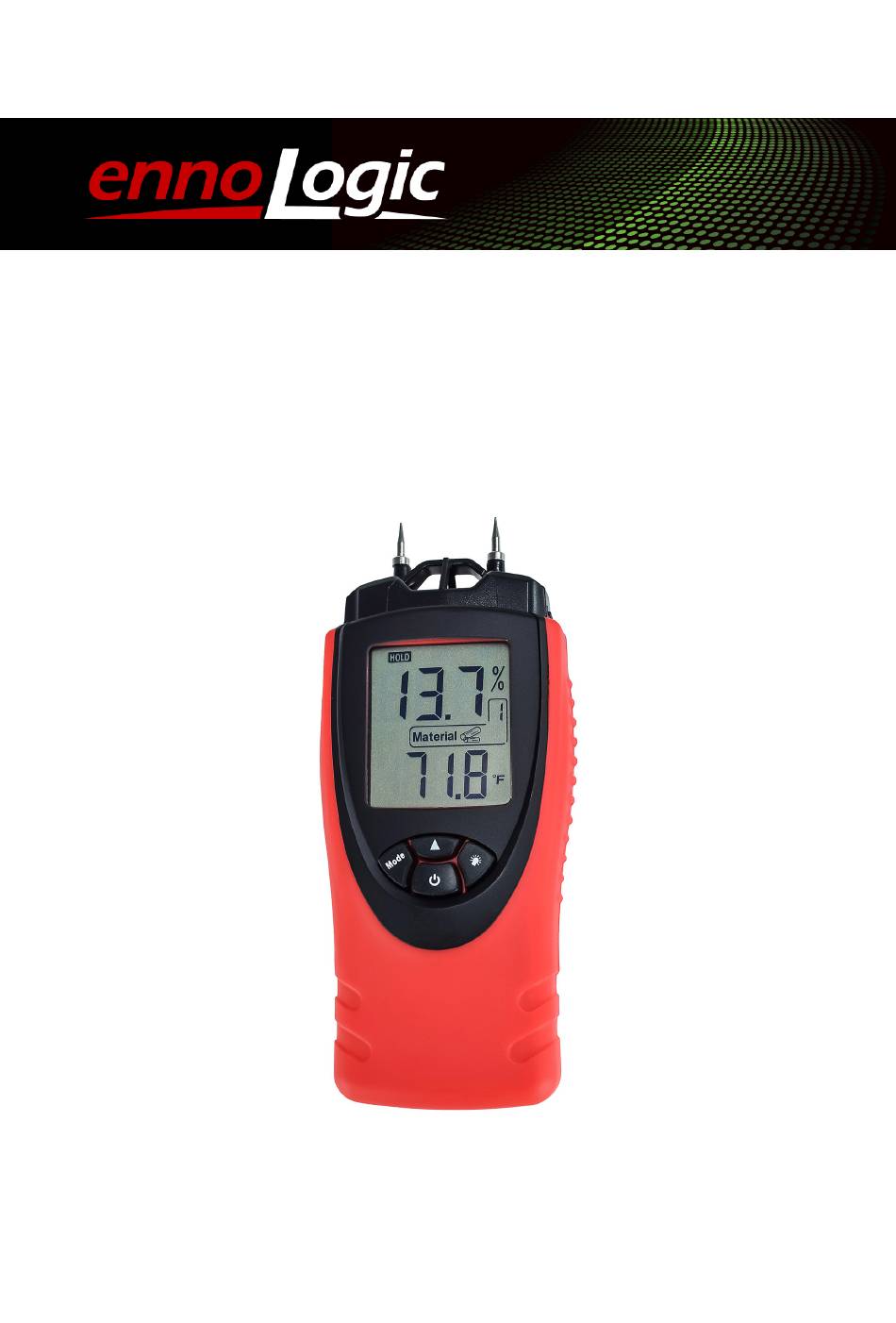

- Page 1 Moisture Meter User Manual...
- Page 2 Moisture Meter ennoLogic eH710T Made in China User Manual Version 2.2. Revised 10/2/2020. © 2020 ennoLogic®. All rights reserved. https://ennologic.com...
-
Page 3: Table Of Contents
Table of Contents 1. Overview ............. 1 1.1 Important Safety Considerations – Please Read ..1 1.2 LCD Display ..............2 1.3 Keypad ................2 1.4 Battery Installation or Replacement ......3 1.5 How to Use Your Moisture Meter......3 Power On/Off.............. -
Page 4: Overview
1. Overview Thank you for purchasing the ennoLogic eH710T moisture meter. This meter is a professional moisture meter that measures the water content of wood and building materials. It also measures air temperature. Please read the instructions in this manual carefully before using the moisture meter. -
Page 5: Lcd Display
1.2 LCD Display 1 - Hold indicator 2 - Max indicator 3 - Min indicator 4 – Moisture value 5 – Selected material indicator 6 – Wood or building material symbol 7 – Air temperature unit 8 – Air temperature value 1.3 Keypad 1 –... -
Page 6: Battery Installation Or Replacement
1.4 Battery Installation or Replacement Open the battery cover on the back of the instrument and install three 1.5V AAA batteries according to polarity indicators (alkaline batteries are recommended). Please replace the batteries when the low battery symbol appears. 1.5 How to Use Your Moisture Meter Power On/Off To turn the moisture meter on press the power button briefly, press it again to turn it off. - Page 7 display, you may want to turn on the backlight by pressing the backlight button. 2. Choose your material setting with the arrow button. Press this button briefly multiple times to move through settings 1-7. The material number will be displayed along with one of two material symbols: (wood) or (building...
-
Page 8: Hold And Max / Min Value Display
readings from internal cut surfaces rather than outer bark. Note: you do not need to press any buttons to take a reading. Simply hold the pins in contact with the material and wait a few seconds for the moisture reading to change from “Lo”... -
Page 9: Temperature Unit Selection And Self Check
Mode button and then wait to see the three dashes followed by the “ ” symbol to know the unit is operating correctly. If the unit displays “ ” instead of “ ” there is a problem with the unit and you’ll need to contact support@ennologic.com. -
Page 10: Specifications
2. SPECIFICATIONS 2.1 Parameters measured Percentage of water Wood and building materials, see content [%] table below for details Air temperature -10 ~ 50°C, + 14 ~ 122°F [°C or °F] 2.2 Moisture measuring ranges for various materials Setting Measuring Material Range Material 1... -
Page 11: Technical Specifications
2.3 Technical Specifications Moisture Sensor Electrical Resistance (Conductivity) Measurement Air Temperature Sensor NTC Temperature Sensor Resolution 0.1%; 0.1°C; 0.1°F Accuracy ±2%; ±1°C Sampling Rate 0.5s Operation Conditions -10 ~ 50°C; + 14 ~ 122°F; 10% ~ 90%RH Storage Conditions -20 ~ 60°C; -4 ~ 140°F; 10% ~ 75%RH Power Supply 3 x 1.5V AAA batteries... - Page 12 Manual de Usuario en Español: https://ennologic.com/eh710t/es Manuel de l’Utilisateur en Français: https://ennologic.com/eh710t/fr Bedienungsanleitung in Deutsch: https://ennologic.com/eh710t/de Manuale d'Uso in Italiano: https://ennologic.com/eh710t/it ennoLogic.com PO Box 25207 Eugene, OR 97402...
