PCB Piezotronics 482C05 Installation And Operating Manual

PCB Piezotronics 482C05 Installation And Operating Manual

Four-channel, icp sensor signal conditioner

Advertisement

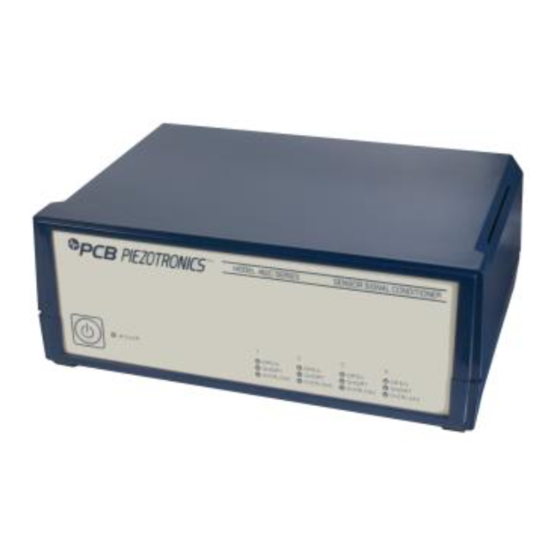

Model 482C05/NP
Four-channel, ICP® Sensor Signal Conditioner
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 482C05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PCB Piezotronics 482C05

  • Page 1 Model 482C05/NP Four-channel, ICP® Sensor Signal Conditioner Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
  • Page 2  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 The 482C Series is available with many different options from PCB. This manual describes the functions of the most economical signal conditioner with unity gain (482C05) and x1, x10, x100 jumper selectable gain (482C15), of that series.
  • Page 7: Table Of Contents

    Table of Contents Table of Contents 1-1. Introduction 1-2. Safety Considerations 1-3. Equipment Rating 1-4. Model 482C15 System Description 1-5. Model 482C05 System Description 1-6. Installation 1-7. Grounding Techniques 1-8. Unit Power 1-9. Maintenance and Repair Appendix Specification Sheet Outline Drawing...
  • Page 8: Introduction

    MULTICHANNEL SIGNAL CONDITIONER MODEL 482C GENERAL OPERATION MANUAL 1-1. Introduction ® The Model 482C05 is a basic ICP signal conditioner that provides an adjustable current source to drive ICP sensors. Additionally it has Open, Short and Overload Input fault condition indicators. ®...
  • Page 9: Equipment Rating

    +120°F (0 to +50°C), in an environment having <85% relative humidity. Its line power frequency range is 47-63 Hz. The 482C15/482C05 devices require 34-38 VDC with 200 mA to operate. In turn, they supply 26 VDC @ 2 to 20 mA excitation voltage to connected ICPsensors or in-line charge converters.
  • Page 10 MULTICHANNEL SIGNAL CONDITIONER MODEL 482C GENERAL OPERATION MANUAL indicates a signal level of +/-10V Peak has been detected and the signal may be in danger of clipping. These fault lights are active for all channels, at the same time. 1-4.4. Gain selection / Jumper definition The 482C15 has internal jumpers that are accessed by opening the top cover.
  • Page 11: Model 482C05 System Description

    Installation Both the Model 482C15 and the Model 482C05 come packaged in a standard box and require very little in term of installation. The box should be located in such a way as to allow convenient access to the power outlet for disconnect purposes.
  • Page 12: Unit Power

    CAUTION 3: Refer to the rear panel for proper input voltage. Only PCB supplied power sources will ensure noise specifications and CE ratings. 1-8. Maintenance and Repair It is not recommended that the customer attempt repairs of the Model 482C15 or 482C05. Should trouble occur, contact the factory for assistance.
  • Page 13 Model Number Revision: J FOUR-CHANNEL, ICP® SENSOR SIGNAL CONDITIONER ECN #: 43617 482C05 Performance ENGLISH OPTIONAL VERSIONS Channels Optional versions have identical specifications and accessories as listed for the standard Sensor Input Type(s) ICP® ICP® model except where noted below. More than one option may be used.
  • Page 14 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATED ARTWORK 37737 5.92 [150.3] 8.07 [205.0] 5.51 [140.0] 2.97 [75.4]...

This manual is also suitable for:

482c05/np482c15
