Encore Presentation System
Complete Show Control
The Encore Presentation System is the most advanced video processing and
presentation control system on the market today. The system provides source selection,
advanced windowing features, seamless switching, video effects and integrated control
for professional video presentations. Encore's modular, scalable architecture allows the
system to support a wide variety of show configurations. The system can efficiently
support from 1-32 screens with any combination of independent display or seamless
wide-screen display elements.
Advertisement
Related Manuals for Barco Encore
Summary of Contents for Barco Encore

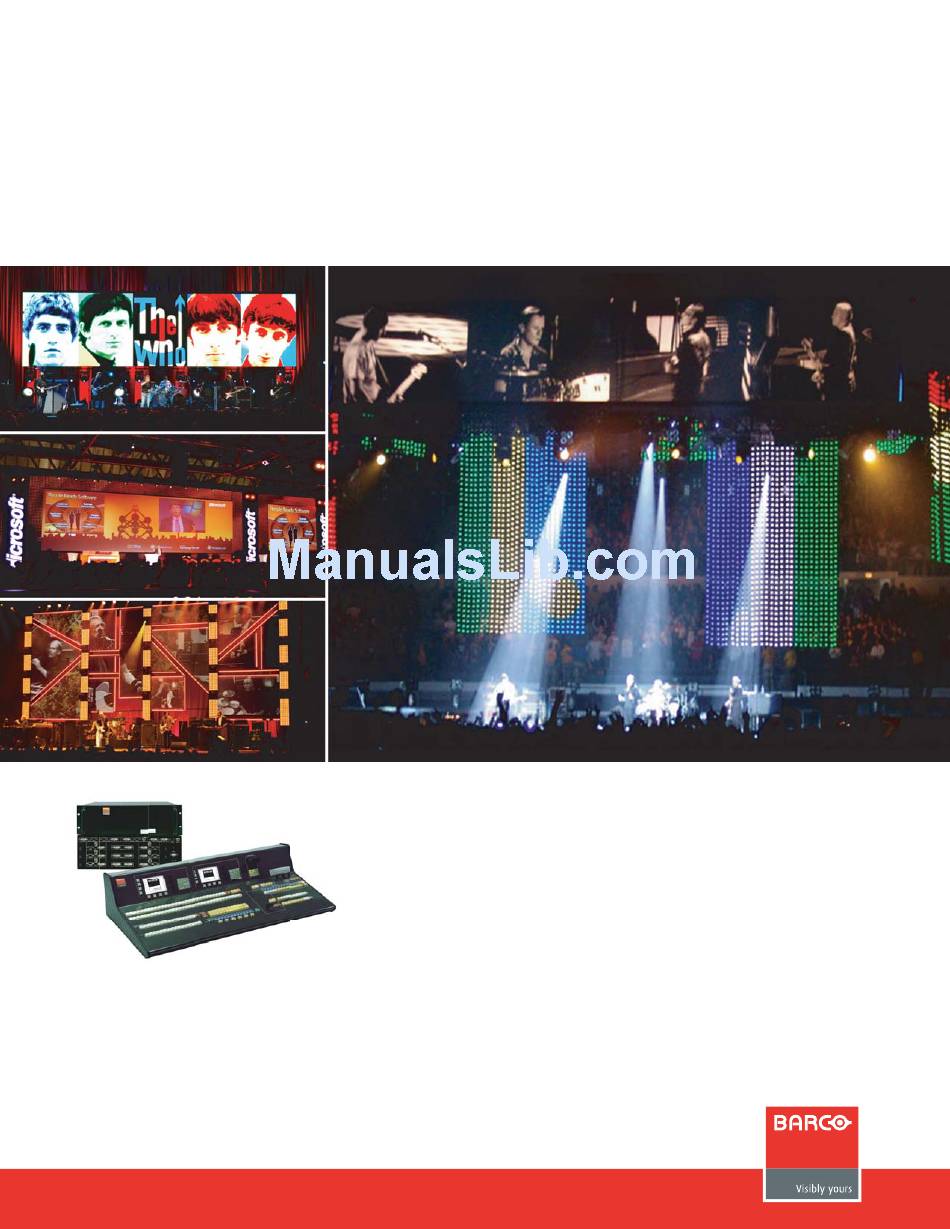

- Page 1 Encore Presentation System Complete Show Control The Encore Presentation System is the most advanced video processing and presentation control system on the market today. The system provides source selection, advanced windowing features, seamless switching, video effects and integrated control for professional video presentations. Encore's modular, scalable architecture allows the system to support a wide variety of show configurations.
- Page 2 Each window can be resized and positioned in real time, with programmable Borders and Drop Shadows EXPANDABLE FROM 1 to 32 SCREENS Encore supports any combination of single-screen, multi-screen or edge-blended widescreen applications. NATIVE HIGH RESOLUTION BACKGROUND Background transition effects are independent of the windowing channels.
-
Page 3: System Overview
From the smallest single-screen event to the most critical widescreen edge-blended presentation, only one system on the market handles every challenge with power and ease — the Encore Presentation System. Each Encore system consists of a Controller and one or more Video Processors, and each system is designed to grow in tandem with your creative requirements. With a full array of unsurpassed features, dynamic input flexibility and the superb quality of Barco Folsom scaling, Encore is the premiere choice for today's demanding presentation marketplace. -
Page 4: The Encore Video Processor
VPX also includes the same output connectors as the standard VP. The VPx can also be used as a multiple preview display processor. By sending the preview outputs from other Encore VP and VPx units to the “multi-view” VPx, you can combine multiple preview outputs on a single display. On the “multi-view” monitor, preview outputs can be arranged in any size or location, and the monitor display itself is managed from any of the Encore Controllers. - Page 5 Single Mixer Effects A single Mixer Encore system provides two backgrounds, two scaleable mixer layers plus an unscaled DSK. Note that if the DSK is in use, the background cannot transition between A and B. The DSK and background channels are unscaled, in all cases.
-
Page 6: Controller Features
PIP and Keys, or use it to adjust the value of a highlighted parameter on the Touch Screen. Controller Features Encore Processors supported Widescreen support External Router Control Inputs supported Destinations supported Available Presets Layers supported... - Page 7 Total Event Control The Encore System Controllers support events by allowing integrated control of multiple Encore Video Processors in addition to matrix switchers. Encore Controller LC Preset Buttons Buttons enable you to store and recall Controller setups. Each button represents a single “look”...
- Page 8 Program 2 Destination 1 Destination 2 Preview 1 Preview 2 Encore Video Processor #1, 3M/E Encore Video Processor #2, 3M/E •Non-stack system, up to 6 layers •3M/E Video Processor (x2), SDI Router (x1), RGBHV Router (x1) •5 Destinations: (1,2) Projectors, (3) ScreenPRO-II, (4,5) Aux monitors...
- Page 9 Analog Inputs 16 x 16 MatrixPRO RGBHV Program 1 Program 2 Program 3 Preview 1 Preview 2 Preview 3 Encore Video Processor #1, 3M/E Program link VP #2 Source link Program link VP #3 Source link Destination 4: ImagePRO Aux •...
-
Page 10: Encore Configurator
Integration with Signal Routers The use of high quality routers is an integral part of the Encore system. Barco offers analog and digital routers including SDI, HD/SDI and DVI units that are fully compatible with Encore. All of our routers are designed and tested to ensure quality, reliability, robustness and ease of use. - Page 11 Encore Video Processor Specifications Inputs Mixer/Effects Channels Analog Inputs (2 per m/e board) SD and HDSDI Input DVI Input Input Resolutions Native Resolution Analog Inputs Background Channels DVI Input (2 per M/E board) Input Resolutions Downstream Key Input Analog Inputs...
- Page 12 Barco Media and Entertainment 11101 Trade Center Drive Rancho Cordova, CA 95670 31-0313000-02 - Apr 08 Tel. 916 859 2500 Fax 916 859 2515 www.barco.com...
