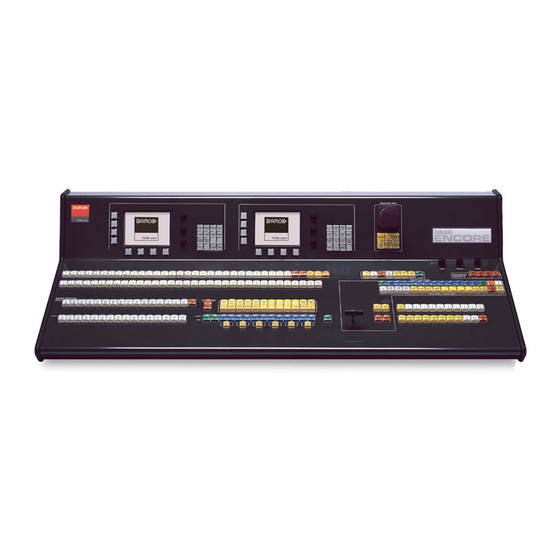

Barco Encore Quick Start Manual

Quick Start Guide

Visibly yours
Ethernet Port
Connect to Ethernet Switch on an isolated
network. Used for communications with
devices such as Video Processors, video
routers, matrix switchers, ScreenPRO-II,
PresentationPRO-II and ImagePRO. Also
used for downloading code.
Keyboard Port
Connect to customer-supplied PS/2
keyboard. Enables certain numeric
entry and "naming" functions.
System Setup
System setup is comprised of 20 sequences,
each of which includes many steps. For
error-free installation, always refer to the
associated section in Chapter 6 of the User's Guide.
The circled sequence numbers are identical.
Before you begin, ensure that your system is properly
cabled. Use the sample "configuration" charts in
Chapter 3 of the User's Guide.
ID Setup and Remote Enable — Set up individual
1
Video Processor, ScreenPRO-II, PrePRO-II and
ImagePRO IDs. Enable remote control on all units.
Peripheral Power Up, Status Check — Power up
2
routers and peripherals. Use Status Menu to check
code compatibility. Download code (if required).
Return to Factory Default — Perform a complete
3
factory reset on all devices. This procedure resets all
router tables and source mappings.
Touch Screen Calibration — Calibrate the
4
Controller's Touch Screen display(s).

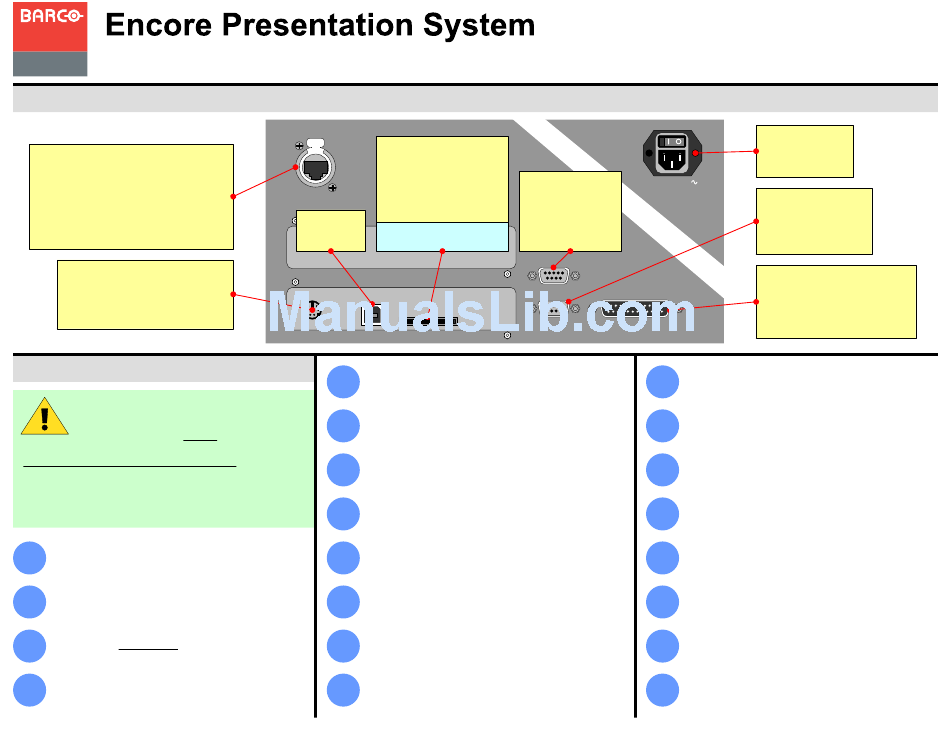

Encore Controller — Rear Panel: Models SC and LC
MultiMedia Card
Insert customer-supplied
Flash Memory Card (min.
512 MB). Enables storage,
ETHERNET
recall and transfer of
system configurations.
USB Port
Note: Use MMC or MMCPlus cards.
Not Used
Do not use SD cards.
KEYBOARD
USB B
MultiMedia Card
Programming EDID — For your background and DSK
5
sources, program EDID to ensure proper
communications to your PCs at the preferred resolution.
Restore from Flash Memory Card — If you backed
6
up to Flash Memory, restore the configuration at this
point. No further setup steps are necessary.
Router Setup — Set up your system's routing
7
switcher(s), including type, communications, output
patching, and designating Aux outputs.
D/A Setup — Set up your system's Distribution
8
Amplifiers, including type, number of outputs, and
output patching.
Input Patching — Associate (patch) specific router
9
inputs to specific source buttons on the Controller.
Assign tally connections as desired.
Destination Setup — Set up single screen, wide
10
screen, stack and ScreenPRO-II destinations. Note that
"stacking" is only available with the Controller LC.
Aux Destination Setup — Set up your system's
11
Auxiliary destinations, including Aux, ImagePRO Aux
and PresentationPRO-II Aux destinations as required.
Output Format Setup — Configure the output format
12
for each Video Processor and ScreenPRO-II. Always
match the native resolution of the display or projector.
Barco Media and Entertainment
11101 Trade Center Drive
Rancho Cordova, CA
95670 • USA
100-240 V
Ext Comm Port
47-63Hz, 2.75A
For serial
communications
with external devices
such as routers
EXT COMM
CONSOLE TALLY
Sync Setup — Set up sync parameters for the monitors
13
and projectors connected to the system.
Genlock Setup — Set up Genlock for each destination
14
selected on the Output Menu.
Projector Setup — Set up your projectors for both
15
single screen and wide screen destinations.
Background Setup — Set up the Controller's two
16
background sources for all single, wide screen, stack
and ScreenPRO-II destinations.
Input Setup — Set up your system's inputs for single,
17
wide screen, stack and ScreenPRO-II destinations.
Both "quick" and "detailed" methods are outlined.
DSK Setup — Set up the Controller's DSK source.
18
Choose between "none," DVI, analog or a captured
frame grab.
Save the Setup — On the System Keypad, press
19
SAVE to save the state of the Controller in non-volatile
memory.
Backup to Flash Memory Card — Back up your
20
system configuration to a customer-supplied Flash
Memory Card.
Phone: +1 (916) 859-2500
Fax: +1 (916) 859-2515
Technical Support: +1 (866) 374-7878
Website: www.barco.com
AC
Connect to AC
power source
Console Port
For serial
communications and
downloading code
Tally Connector
Connect to 8 external devices for
relay closure control. Refer to
Appendix A for connector pinouts.
P/N 26-0313003-00, Rev A
