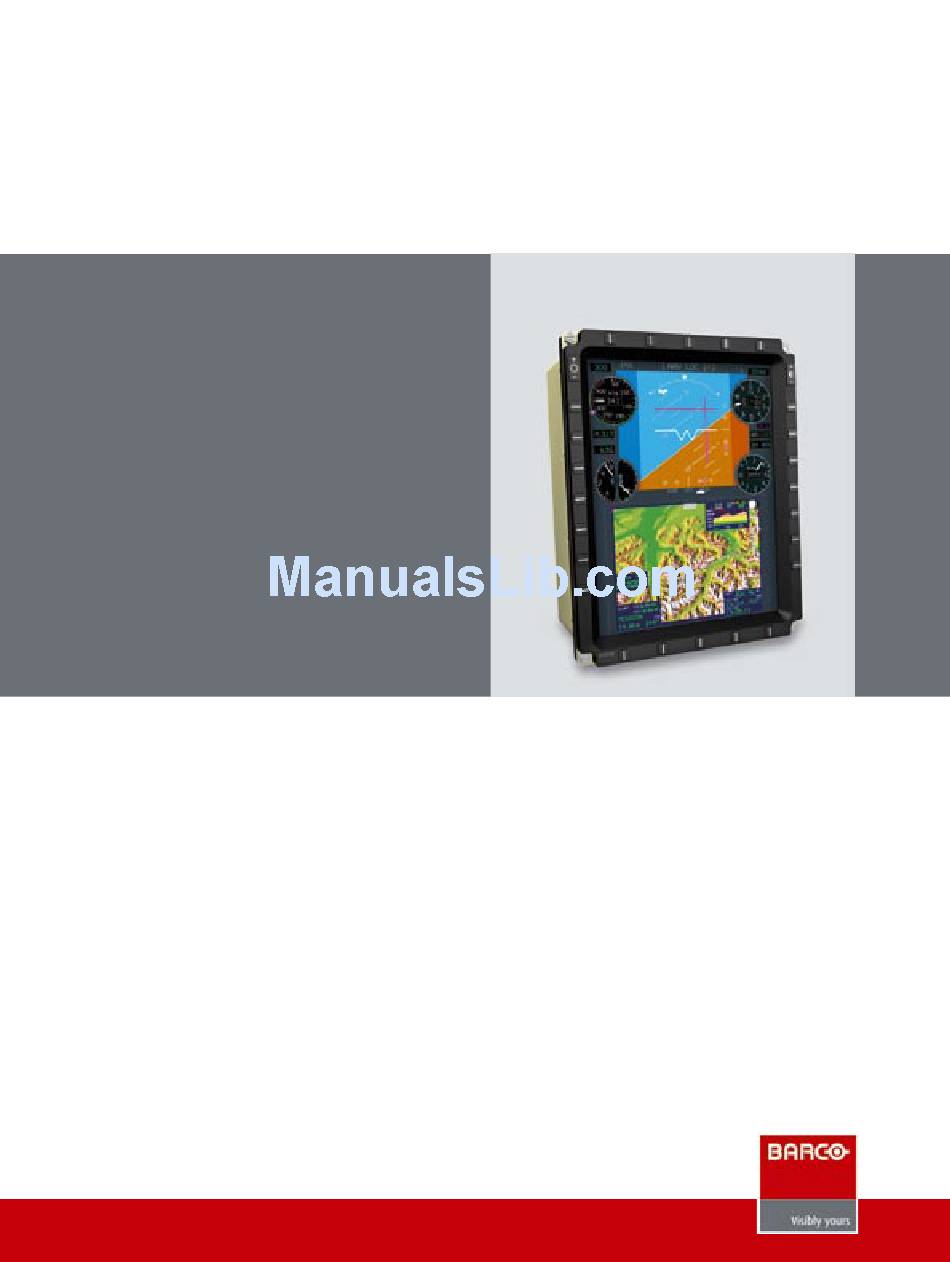

Barco CHDD–268 Specifications

Main features:
• Various input options:
• 2 Digital Video Inputs (DVI)
• Various possible analog video inputs
(video composite, VGA to XGA RGB (SoG
or +H,+V), STANAG 3350A, B & C,...)
• Extra wide viewing angle
• Compact design
• Various keyboard options
• Compatible with night vision option
including day/night mode selection
• Ambient luminance control
• Software loadable through connector
• Compatible with MOSArt TM processing unit
• Optional compatibility with ARINC 817 and
ARINC 818 video standards
• Extensive Built-In Testing (BIT)

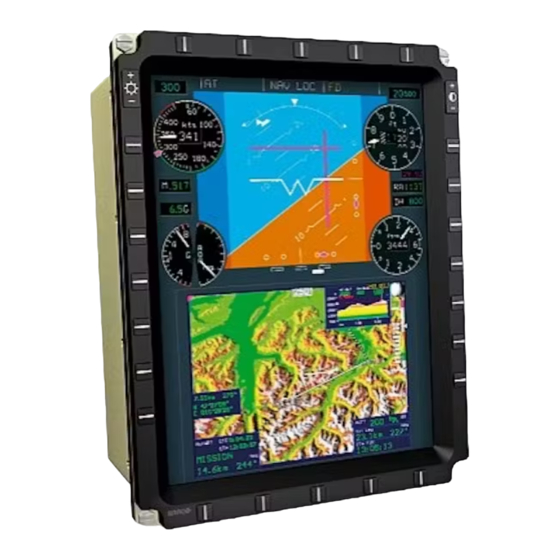

6x8 inch Cockpit Head Down Display
The CHDD-268 is an advanced, 6x8 inch avionics displays that
accepts both digital video inputs (DVI) and most of the currently
available analog video inputs (Composite, RGB, STANAG,...).
Truly innovative, the CHDD-268 also anticipates for the latest
ARINC 817 and 818 digital video standards.
Equipped with sunlight-readable AMLCD and LED backlight
technology, the CHDD-268 provides not only exceptionally
high brightness and excellent contrast, which have become
the hallmark of Barco's avionics displays, but also a very wide
viewing angle of 80° in all directions. It allows the same unit to
be used in portrait as well as landscape mode.
The use of advanced electronics allows for a very compact
footprint (maximum 4" depth) and low power consumption.
The innovative CHDD-268 unit is DO-178B and DO-254 certified
up to level A. Because of this, the display can be used as
Primary Flight Display (in combination with an external symbol
generator) in almost any type of aircraft.
CHDD–268
