- Page 1 INSTALLATION MANUAL PROJECTOR ARM ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE Translation into English language Il presente documento è di proprietà riservata della Euroscreen S.r.l. E’ vietata la riproduzione senza autorizzazione...

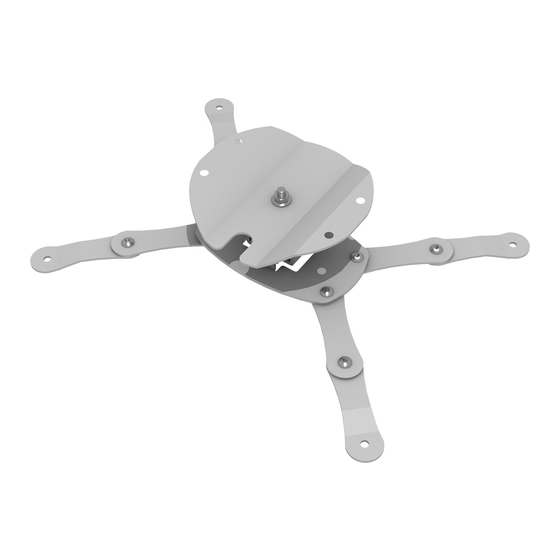

- Page 2 Installation and maintanance manual Projector Arm Mod. B-7 1.0 GENERAL INFORMATION GENERAL INFORMATION First of all congratulations for your choice. We are pleased that you have bought this universal video projector ceiling bracket, which is easy to install and can be used for nearly all LCD and DLP projectors up to 15 Kg.
- Page 3 Installation and maintanance manual Projector Arm Mod. B-7 INSTALLATION PACKAGING CONTENTS When you open the packaging, please CHECK that it contains ALL the components below: Ceiling mounting plate Plate for central join Central joint Socket head Mounting plates for Flanged nut...
- Page 4 Installation and maintanance manual Projector Arm Mod. B-7 ASSEMBLY STEP 01 STEP 02 STEP 03 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 5 Installation and maintanance manual Projector Arm Mod. B-7 STEP 04 STEP 05 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 6 Installation and maintanance manual Projector Arm Mod. B-7 STEP 07 WARNING: 1) Before installing the bracket, check that you have assembled it correctly according to all the mentioned steps. 2) Check that the ceiling is suitable to fix and support the weight of the bracket and the projector.
- Page 7 Installation and maintanance manual Projector Arm Mod. B-7 3.0 MOUNTING THE PROJECTOR MOUNTING EXAMPLE Once fixed the projector’s fixing points, position the mounting plates “E” and “F” on the projector’s chassis so that the centre of the projector arm will be the same of the projector’s centre of gravity.
