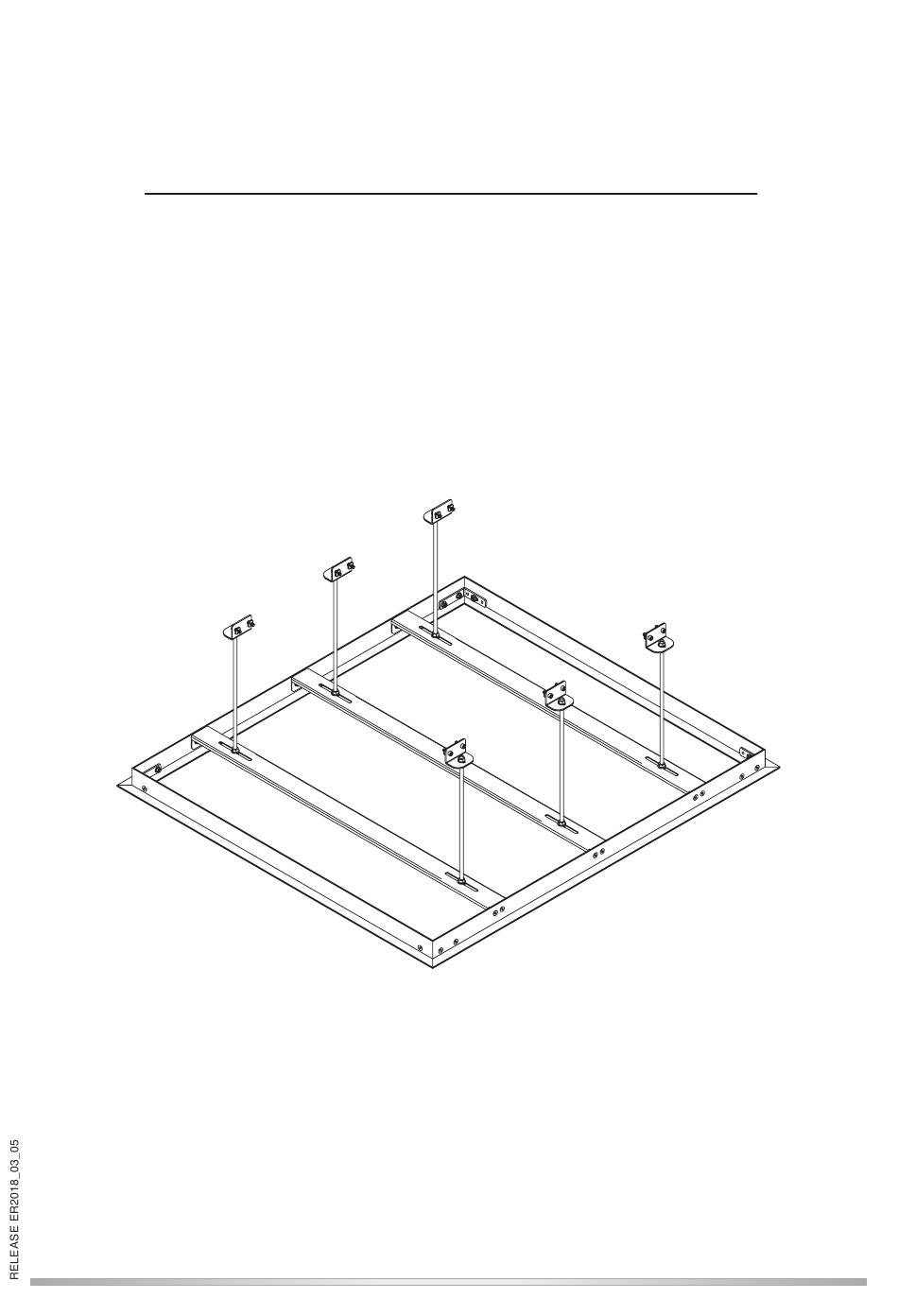

INSTALLATION MANUAL
CEILING TILE HOLDER CT-XL 946
SUITABLE FOR PROJECTOR LIFT MODELS
SI-H XL 300 AND SI-H XL 500
ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE
Translation into English language
Il presente documento è di proprietà riservata della Euroscreen S.r.l.
E' vietata la produzione senza autorizzazione
Advertisement
Summary of Contents for Screenint CT-XL 946
-
Page 1: Installation Manual
INSTALLATION MANUAL CEILING TILE HOLDER CT-XL 946 SUITABLE FOR PROJECTOR LIFT MODELS SI-H XL 300 AND SI-H XL 500 ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE Translation into English language Il presente documento è di proprietà riservata della Euroscreen S.r.l. E’ vietata la produzione senza autorizzazione... - Page 2 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 PACKAGING CONTENT Aluminum profiles of the frame (A) Steel corner brackets, screws and nuts (B) PCS. 04 PCS. 04 PCS. 12 PCS. 12 Nuts M6 Screws M6x16 C-shape profiles, screws and nuts (C) Winded rods, nuts and washers (D) PCS.
- Page 3 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 ASSEMBLY OF THE BEZEL Bezel assembly Assembly detail of the corner Segment L.1093 Corner bracket Nut M6 Screw M6x16 Segment L.993 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 4 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 Assembly of the bezel. Once assembled the bezel, check that L1 has the same length as L2 L1 = L2 Detail of assembled corner bracket Internal External This document is property of Euroscreen Srl.
- Page 5 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 ASSEMBLY OF THE C-SHAPE PROFILES C-shape profiles assembly Detail of the assembly C-shape profile Nut M6 Screw M6x16 This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 6 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 C-shape profiles assembled Detail assembly of the C-shape profile Internal External This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 7 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 ASSEMBLY OF THE BRACKETS ONTO THE PROJECTOR LIFT FRAME Assembly of the brackets How to insert the Bosch nut into the spline This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 8 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 Fixing detail of the brackets Detail once the brackets are mounted This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 9 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 ASSEMBLY OF THE WINDED RODS Overview of the winded rods assembly This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
- Page 10 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 Assembly detail of the winded rods Nut M8 Washer Washer Nut M8 Winded rod M8 Winded rod M8 Nut M8 Washer Washer Nut M8 This document is property of Euroscreen Srl.
- Page 11 Installation and maintanance manual Mod. Ceiling tile holder CT-XL 946 Detail of the assembled winded rods This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
