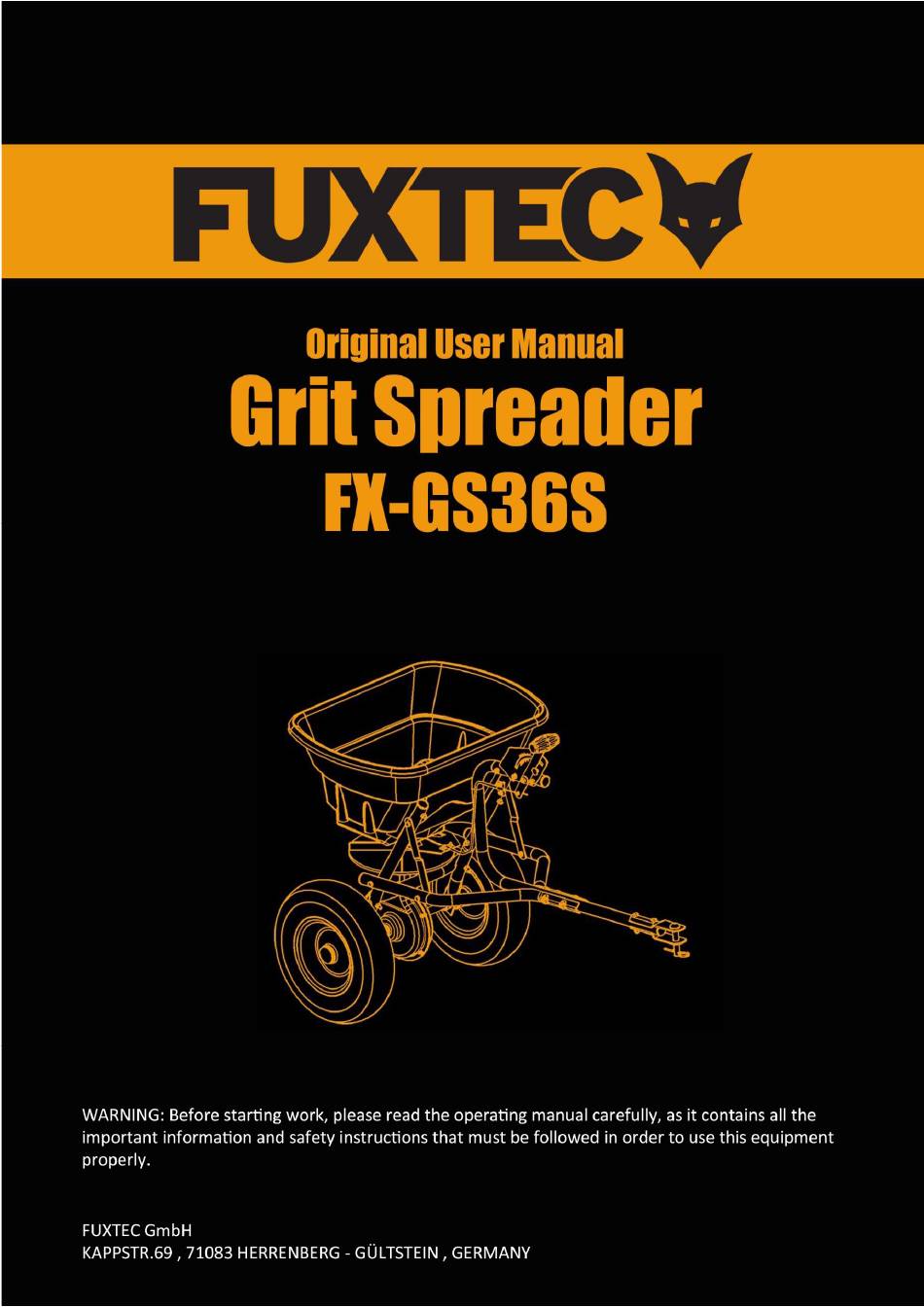

- Page 1 Original User Manual FUXTEC FX-GS36S...
- Page 2 Original User Manual FUXTEC FX-GS36S Dear customer, We are pleased with your confidence! Please read these instructions for use before the first operation and before every use! Here you will find all instructions for safe use and a long lifetime of the device. Be sure to...
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-GS36S Table of contents Intended use........................ 4 Preparation and security ..................... 4 Customer responsibility ....................5 Scope of delivery ......................5 Maintenance and storage ................... 6 Mounting and assembly ....................7 Exploded drawing ...................... 13 Customer Service ...................... 15 Warranty ........................ -
Page 4: Intended Use
Original User Manual FUXTEC FX-GS36S Intended use The spreader is to be used exclusively for spreading granules. If your spreader does not distribute the granules evenly, make sure that the front of the gearbox points to the front of the spreader. The impeller must turn clockwise. Reversing the gear will cause the impeller to rotate counterclockwise. -
Page 5: Customer Responsibility
Original User Manual FUXTEC FX-GS36S Customer responsibility • Read all security guidelines • Perform maintenance work on your granulate spreader at regular intervals • Follow the instructions in the Maintenance and Storage Guidelines section of this manual Scope of delivery... -
Page 6: Maintenance And Storage
Original User Manual FUXTEC FX-GS36S Maintenance and storage • Store the granulate spreader in empty condition • Storage of chemicals according to the manufacturer's guidelines • Visual inspection of the connecting screws, nuts • Clean the granule spreader with water and soap solution •... -
Page 7: Mounting And Assembly
Original User Manual FUXTEC FX-GS36S Mounting and assembly Step 1 • Mount the bucket wheel on the axles and gear unit • Connect with the screw M4 x20 through the bucket wheel and the axle rod... - Page 8 Original User Manual FUXTEC FX-GS36S Step 2 • Take the 2 wheel suspensions and connect them to the axle as shown • Bolt the ends of the connecting tube with the left and right suspension with M6X40 bolts and M6 nut •...
- Page 9 Original User Manual FUXTEC FX-GS36S Step 3 • Mount the connecting tubes with the connecting rods with two screws M6x60 and four screws M6x35 and nut M6...
- Page 10 Original User Manual FUXTEC FX-GS36S Step 4 Mount the inner axle bushings and the wheels, as shown in the picture.
- Page 11 Original User Manual FUXTEC FX-GS36S Step 5 Fix the tube with 2 screws M6x50 and the M6 nuts Fasten safety splint at the end of the shaft...
- Page 12 Original User Manual FUXTEC FX-GS36S Step 6 When you have completed all the above steps, you can use the lever to close the holes at the hopper's bottom and open them entirely by moving the handle. If this is the case, you do not need to do the following steps.
-
Page 13: Exploded Drawing
Original User Manual FUXTEC FX-GS36S Exploded drawing... - Page 14 Original User Manual FUXTEC FX-GS36S NAME Qty. NAME Qty. Insert bolt M6x25 Nut M4 Washer outside φ8 Disc φ4 Control apparatus Settings Panel Adjusting handle A Fixed adjustment plate Adjusting handle connection Screw M5x12 Adjusting handle B Screw M4x20 Screw ST3.9x18...
-
Page 15: Customer Service
Original User Manual FUXTEC FX-GS36S Customer Service The service workshops and dealers provide original spare parts. We recommend that you take the device to an authorized service centre for annual maintenance and inspection of the protective devices. Please contact the dealer where you purchased the device for more information about service and spare parts. -
Page 16: Ec Declaration Of Conformity
AVTECH House, Arkle Avenue, Stanley Green Trading Estate, SV93RW Handforth, Cheshire, UK Herrenberg, April 10, 2017 Tim Gumprecht (Managing Partner) Manufacturer: FUXTEC GmbH KAPPSTRASSE 69, 71083 HERRENBERG, Germany Aufbewahrung der technischen Unterlagen: FUXTEC GmbH, KAPPSTRASSE 69, 71083 HERRENBERG-GÜLTSTEIN Germany T. Zelic, Management... - Page 17 Original User Manual FUXTEC FX-GS36S...
