Summary of Contents for Storm Audio ISP MK2

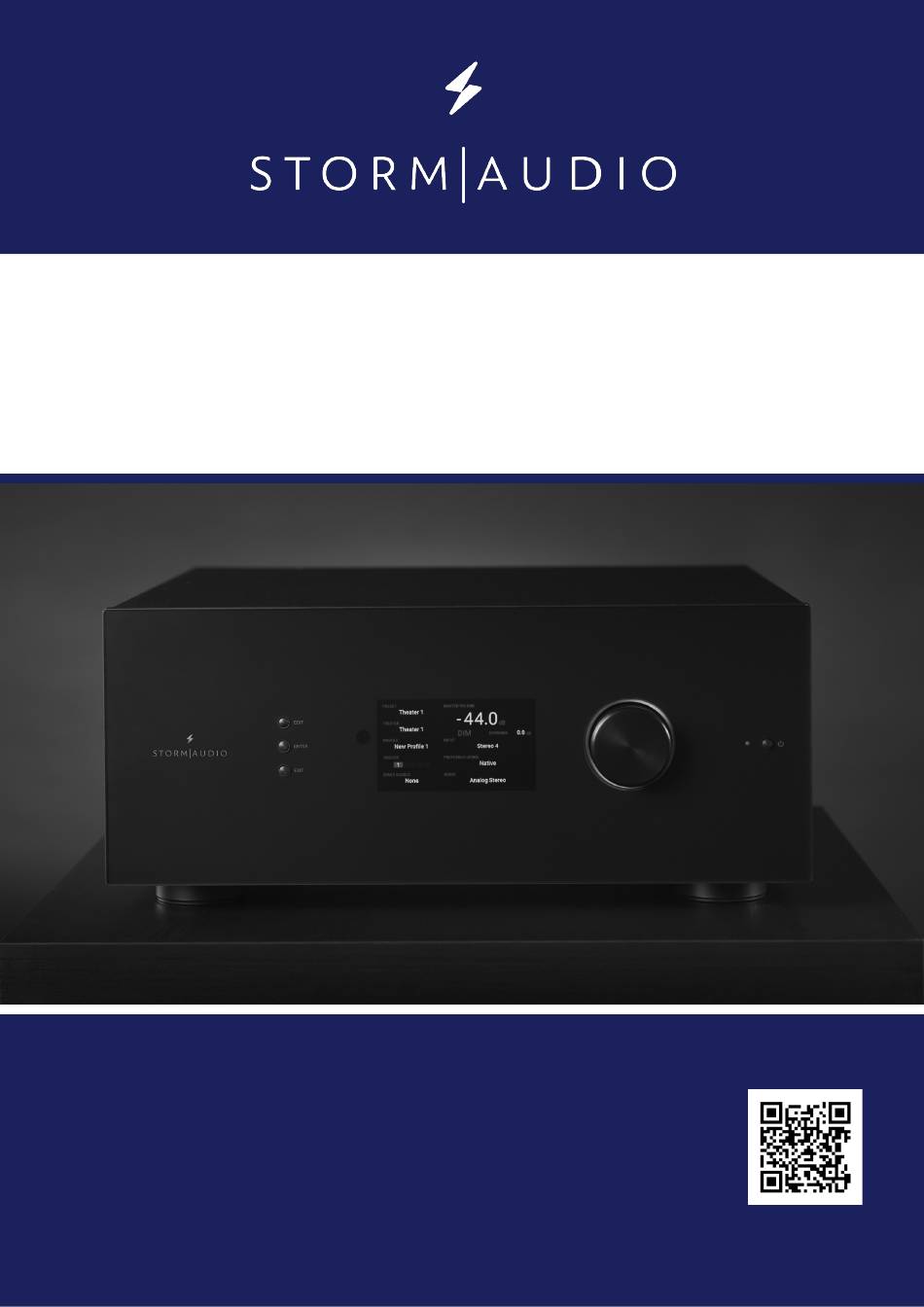

- Page 1 ISP MK2 ISP.16/24/32 Analog ISP.32 Digital AES IMMERSIVE SOUND PREAMP/PROCESSOR QUICK START GUIDE Read me first...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of im- portant operating and maintenance (servicing) instructions in the literature accompanying the product. -
Page 3: Terms Of Warranty
WARRANTY Liability The legal guarantees of conformity under no circumstances covers any damage arising from accidents, misuse or an assembly error, negligence or considerable modification of the appearance or functioning of the product. Im- mersive Audio Technologies reserves its right to refuse any return for a damaged product on account of misuse. Terms of warranty All StormAudio products are covered by warranty drawn up by the official StormAudio distributor in your country. -
Page 4: Specifications
SPECIFICATIONS Audio Control Audio Formats up to 24ch (13.1.10), 192 kHz Control Modules Available Crestron Dolby Atmos, DTS:X Pro*, Control4 IMAX Enhanced*, Auro3D All Legacy codecs Savant SphereAudio for ELAN headphones Front panel sensor Audio Inputs 16ch (AES/EBU) optional Rear panel I/O, jack 3.5mm 4x RCA analog (7.1 or 2.0) DC Trigger x4, jack 3.5mm... -
Page 5: Before Starting
BEFORE STARTING Welcome Owner Manual access Thank you for choosing a StormAudio Immersive This document covers a basic setup. For a complete Sound Preamp/Processor. This guide provides step- and exhaustive configuration of your product, we re- by-step instructions for quickly setting up your ISP to commend you to consult the full Owner Manual : meet a basic Theater configuration. -
Page 6: Panels Overview
1 - PANELS OVERVIEW 1. Standby button 7. HDMI In & Out 13. Digital Inputs, Optical 17. Channels 1 to 16 Ba- and Coaxial lanced Outputs 2. Exit button 8. AC Inlet 14. Unbalanced Analog 18. Available slots for 3. Enter button 9. -
Page 7: Inputs Configuration
3 - WEB USER INTERFACE ACCESS First time access System informations: eth IP Addr : 192.168.1.172 eth MAC Addr : b8:27:eb:70:2b:2c Hostname : isp_cu serial number : ISP/N200200001 fw version: 4.0r0 temperature : 35°C FAN speed : Press and hold EDIT to reset the network configuration 1. - Page 8 5 - THEATER DEFINITION (1/2) In this part, we will cover the configuration of the Also, we will consider multiple rows of surround spea- speakers in the installation following Main Speakers kers as well as multiple subwoofers. tab selection. As systems might easily get compli- For the case you need a different configuration, we cated, the Quick Guide will only focus on a basic use invite you to refer to the Owner Manual providing ac-...
- Page 9 5 - THEATER DEFINITION (2/2) Adjust the Bass Management Once configured, the Theater is presented in Edition Subwoofer. Large will maintain full bandwidth, mode. In this Quick Guide we will only consider the while «Large and Sub» will also direct the Bass to Standard Bass Management setup: the subwoofer channel.
-
Page 10: Output Mapping
6 - OUTPUT MAPPING 1. When the physical connections are different from the default proposed mapping defined during the configuration of section 5, you can access the Output Mapping feature when in the Main Spea- kers tab selecting Output Mapping button. 2. - Page 11 ACKNOWLEDGEMENTS DTS® is a registered trademark of DTS, Inc. Dolby® is a registered trademark of Dolby Laboratories. Auro-3D® is a registered trademark of Auro Technologies. All other trademarks are the properties of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.
- Page 12 StormAudio | Immersive Audio Technologies 15 rue Olympe de Gouges | 44800 Saint-Herblain | France Version 2.0 11-13-2020...
