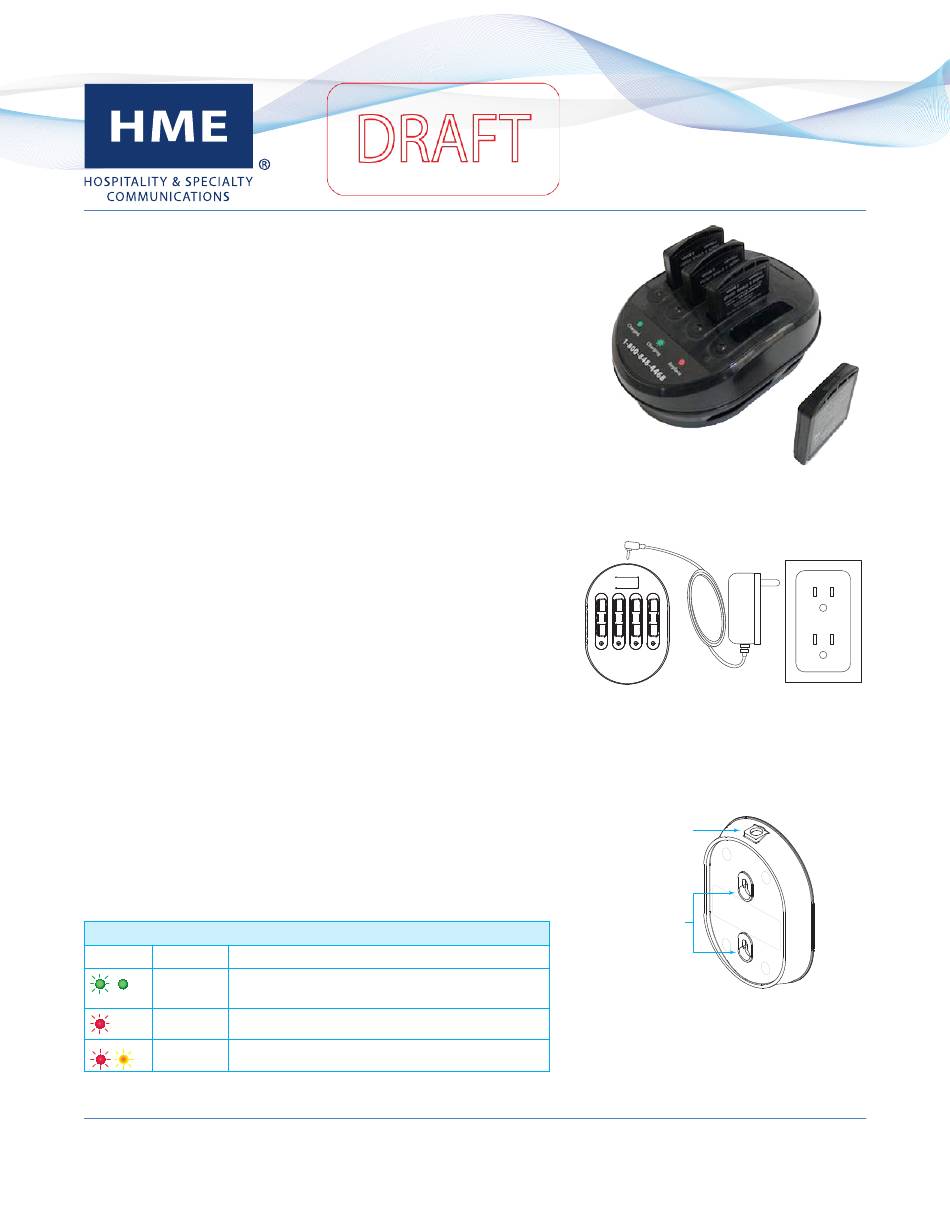

HME AC70 Quick Start Manual

The AC70 Battery Charger can charge up to four BAT70 lithium-ion
batteries at the same time. LEDs at the charging ports indicate bat-
tery status. Charge time is two hours. The AC70 can be used on a
desktop or mounted on a wall.

TOOLS/EQUIPMENT REQUIRED (for wall mounting only)

3
• Drill and drill bits (~ /
• Screwdriver (Phillips #2)
• Safety Glasses

INSTALLATION AND SETUP

Note: The AC70 is wireless and requires close physical proximity to
communicate with the Base Station/Remote Transceiver.
Desktop instructions:
1. Place the AC70 on a level desktop or shelf.
2. Connect the power adapter to a wall outlet, and the other end to
the power connector on the AC70 (Fig. 1).
Wall mount instructions:
1. Drill two holes two inches apart along a vertical axis on the wall
(avoid electrical or plumbing obstructions).
2. Install the provided hardware but do not tighten, leave a gap (~
8 th
¹/ inch (3.2 mm)) between the screw heads and wall.
3. Align the AC70 mounting holes with the two screws (Fig. 2).
4. Mount the AC70 over the screw heads until flush against the
wall, then slide it down onto the screws to secure it in place.

OPERATION

1. Connect the power adapter to a wall outlet, and the other end to
the power connector on the AC70 (Fig. 1).
2. Position the BAT70 battery correctly for insertion into the AC70.
3. Insert the BAT70 battery into a vacant port to begin charging.
LED activity indicates battery status (see table below).
Battery Charger LED Reference Table
LED Color Status/Description
Green Flashing Green = Charging
Solid Green = Fully charged
Red Flashing Red = Incompatible battery
Red/Yellow Flashing Red & Yellow (alternating)= Fault condition
HM ELECTRONICS, INC.
2848 Whiptail Loop, Carlsbad, CA 92010 USA
Phone: 1-800-848-4468 Fax: 858-552-0172
Website: www.hme.com Email: support@hme.com
16 th
inch (4.76 mm))
Quick Start Guide

AC70 BATTERY CHARGER

*
Batteries shown in image
are not included
AC70 BATTERY CHARGER POWER ADAPTER
FRONT VIEW
HME
1 2 3 4
Note: Only use the HME
approved Power Adapter
provided with your AC70
Fig. 1
AC70 BATTERY CHARGER
REAR VIEW
Power Connector
Mounting Holes
/Slots
Fig. 2
WALL OUTLET
HME# PUB - 000xx
Rev A 10/26/20
