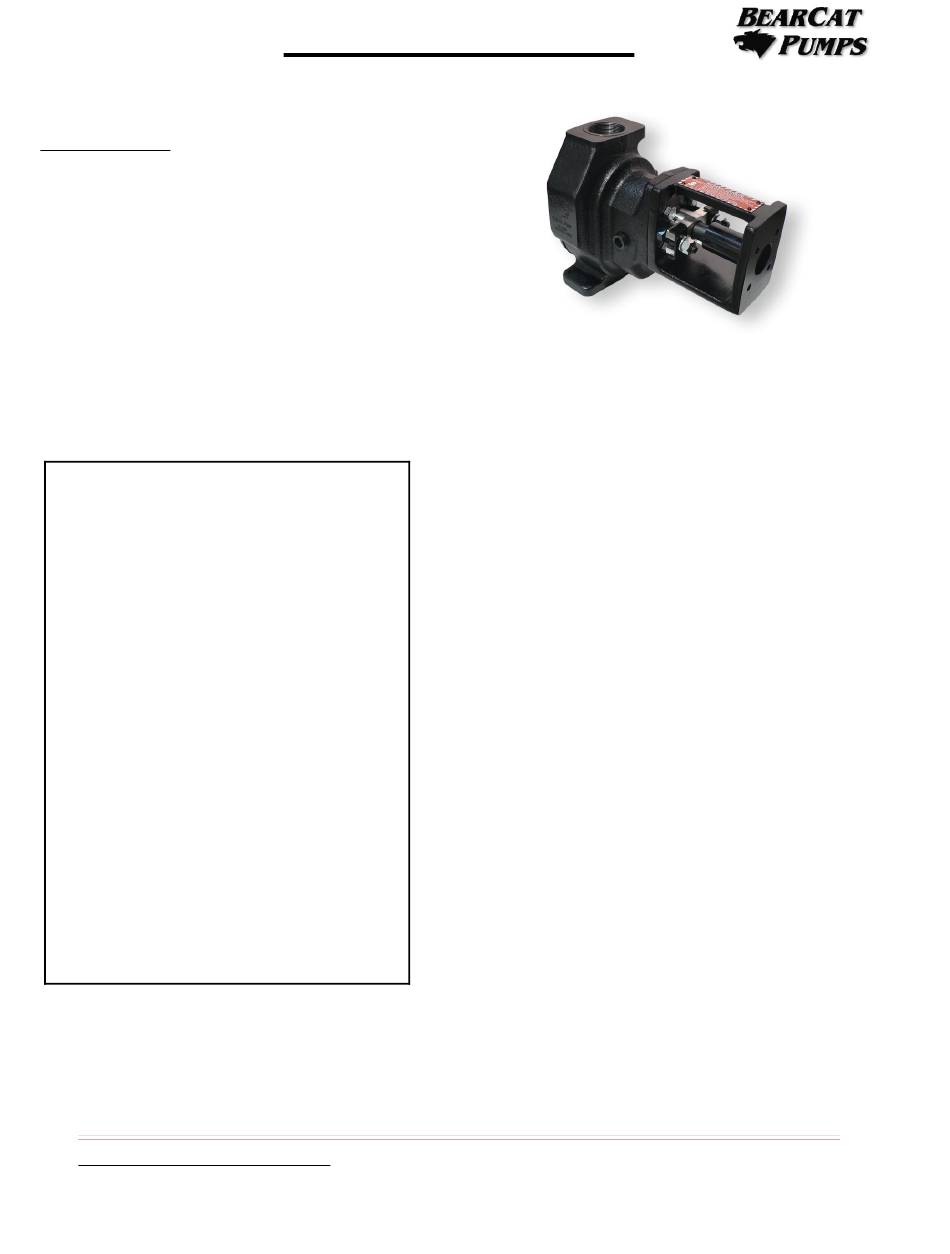

BearCat Pumps 110 Series Manual

CONTENTS

Introduction

Parts Diagram
Installation
Trouble Shooting
INTRODUCTION

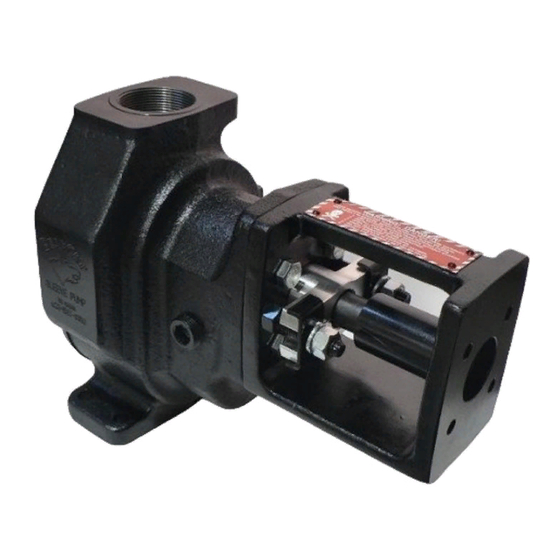

This manual deals exclusively with the 110/170 series Product Pumps. Included in this manual are
most general issues pertaining to this pump. For special applications not covered in the manual,
please refer to the factory or authorized service personnel.
DANGER
Before servicing the Pump liquid chamber
or Relief Valve ensure that:
•
Pressure inside pump has been
completely vented through
appropriate openings or
connections.
•
The drive system has been locked
out so that it cannot be started while
work is being done on the pump.
•
Sufficient time has expired for the
liquid to cool sufficiently inside the
pump. Observe any Material Safety
Data Sheets (MSDS) for the liquid
to be sure these precautions are
understood.
Failure to follow the above listed
precautionary measures may result in injury
or death.
www.bearcatpumps.com
110/170 Pump Manual
1
2
3
4
PACKING
Periodic service of the packing seal can improve
pump performance as well as extend service life.
Packing Replacement:
1. Remove Clips and Gland.
2. Remove old packing. (Use a packing hook, or T-
handle cork screw tool). Be sure to remove ALL
packing.
3. Install new packing one at a time. Stagger the split
of each ring at 180º intervals. Lubricate the rings
with oil or grease to aid in assembly. A length of
pipe or tubing will help in seating the packing
rings.
4. Install the Packing Gland and Nuts. The gland
must enter the stuffing box at least one-eighth of
an inch after tightening the Packing Gland Nuts.
Be sure the glands are tightened evenly. Tighten
Packing Nuts to about 1-1/2 turns past figure tight.
DO NOT over tighten; further adjustment should
be done while pump is operating.
(623) 587 - 1350 Page 1
