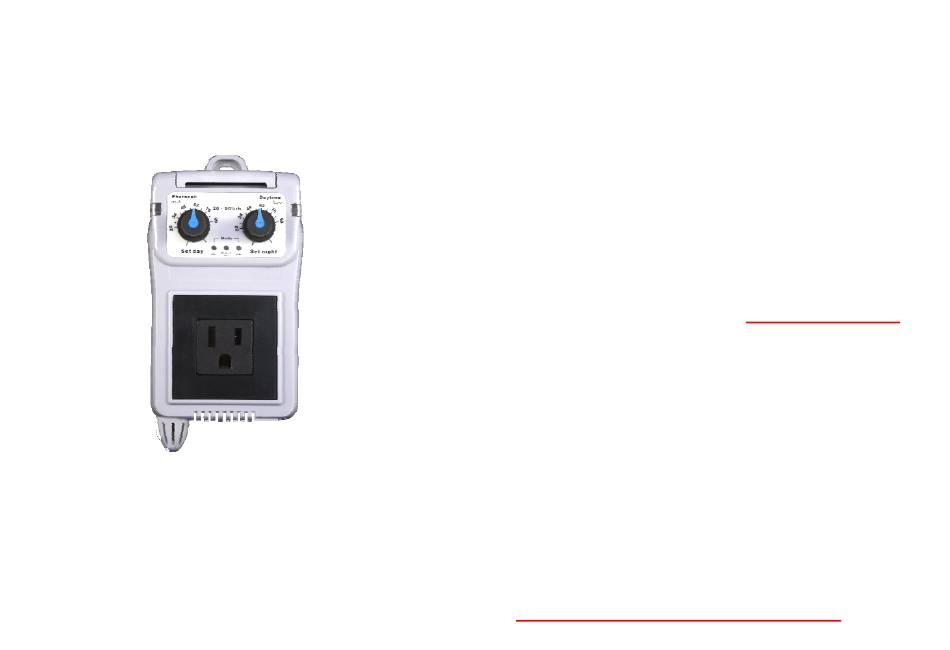

SuperPro VAPOR-B1 Manual

VAPOR-B1
humidity controller
Specs
Input voltage
Maximum amperage
Humidity control range
Separate Day & Night settings
Humidity accuracy
Humidity dead-band (hysteresis)
Weight
Dimensions
120 Volts AC
14.5 amps @ 120 VAC
20 – 90% rH
*photocell control
+/- 5% rH
5% rH
< 1 lbs
3" x 6" x 3.5"
Basic Description

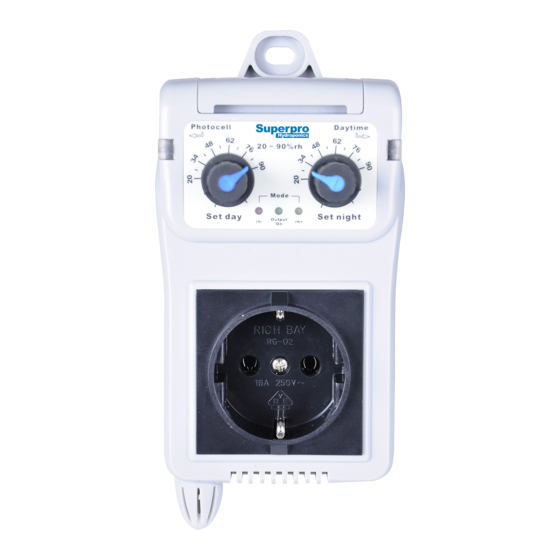

The VAPOR-B1 is a humidity controller that can control either
a dehumidifier or humidifier. Once the VAPOR-B1 is
connected to a power source, and the humidification device is
connected to the VAPOR-B1 power outlet, the device
connected will be automatically controlled by the settings on
the VAPOR-B1.
The user can choose to have different Day and Night humidity
settings which will be automatically switched to the correct
mode by the built-in photocell. The knobs make it easy to
adjust the settings and provide a quick visual verification of the
current set-points. The LEDs on the front of the unit will turn
ON and OFF to show the user the current conditions of the
VAPOR-B1.
NOTE: This unit is water-resistant however...
Keep it away from water!!! It is NOT WATER PROOF.
Installation
Plug the unit into a standard NEMA 5-15 wall outlet. A 120 volt
power supply is required. For more permanent installations,
the mounting tab at the top of the unit can be secured to a
wall.
Ensure that the device being connected to the VAPOR-B1 has
the proper voltage and will not exceed the maximum
amperage rating of this unit. Connect the device to be
controller into the power outlet on the front of the unit.
NOTE: If you are trying to control multiple devices, a
power expansion module can be used to increase
the amount of power load that can be controlled.
DO NOT EXCEED THE MAXIMUM RATING!!!
