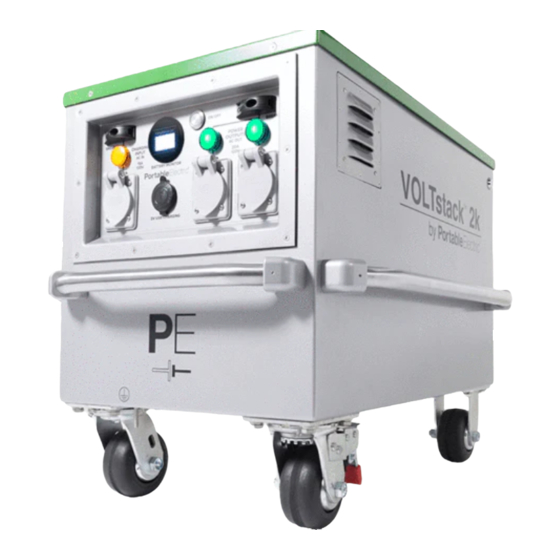

PORTABLE ELECTRIC VOLTstack 2k Quick Manual

IMPORTANT INFORMATION
VOLTstack® Power States
The VOLTstack® power station has three power states:
Power On - All systems on with AC output
For full power output & usage -
Standby - Systems on with NO AC output
For charging and between operations -
- Zero power state with NO AC output
For shipping and long term storage -
TO TURN POWER ON
1.
2. Press the button(s) beneath and the blue button lights
will illuminate.
From Standby to Power On
1. Press the
The button light will illuminate.
2. You will hear two beeps and after 6 seconds the green
Output Lights will illuminate. You now have power!
TO CHARGE THE UNIT
1. From Standby or Power On states, ensure the Charging Breakers are ON.
2. Plug the extension cord's 'female' end into the Charging Ports.
3. The orange Charging Lights will illuminate indicating there is charge power
coming in & the Battery Monitor will indicate the unit is charging.
NB: ' Charging' is defined by net power consumption.
4. Charging is complete when full bars are shown on the Battery Monitor.
Troubleshooting Errors
1. IMPORTANT - Initial Troubleshooting Procedure:
• Ensure all breakers are in the ON position.
• Perform a Power Cycle:
• From Standby state, turn the unit to
• Wait 10 seconds.
• Turn the unit back to Standby and then to Power On.
2. There is no power at the Output Receptacles.
• See Step 1.
• If there is still no power, please call the service provider.
3. The green Output Lights do not illuminate.
• Complete Step 1, then check for power at the Output
Receptacle.
• If there is power, it is an issue with the Output Lights.
The unit is still operational. Please call the service
provider.
I N F O @ S H AT T E R E D - P R I S M . C O M
Green Output Lights ON
Battery Monitor lights ON
located on front panel.
state (see pg. 1).
|
6 0 1 . 2 0 7 . 0 5 9 2
From
QUICK GUIDE
VOLTstack® 2k & 5k
TO TURN POWER OFF
From Power On to Standby
1.
2.
1.
2. Press the button(s) beneath and the blue button lights will
Charging from Solar
1. To charge using solar – plug the solar
cable from the SUNstack™ solar kit
into the Solar Charging Ports.
NB: Using solar panels, solar cables or solar
connectors not supplied by Portable Electric may
cause permanent damage to your VOLTstack®
and/or void your warranty. Use only approved
SUNstack™ equipment from Portable Electric.
4. The unit is not charging.
• See Step 1.
• If unit still does not charge, see Step 5.
5. The orange Charging Lights do not illuminate.
• Check input power source and connection.
• If the unit still does not charge, please call the
service provider.
6. The unit's charge does not last as long as normal.
•
are illuminated.
• Charge the unit back to full.
• If the unit's charge still does not last, please call
the service provider.
|
W W W. S H AT T E R E D - P R I S M . C O M
Unit images on pg. 2
on the front panel. This will cut
1
