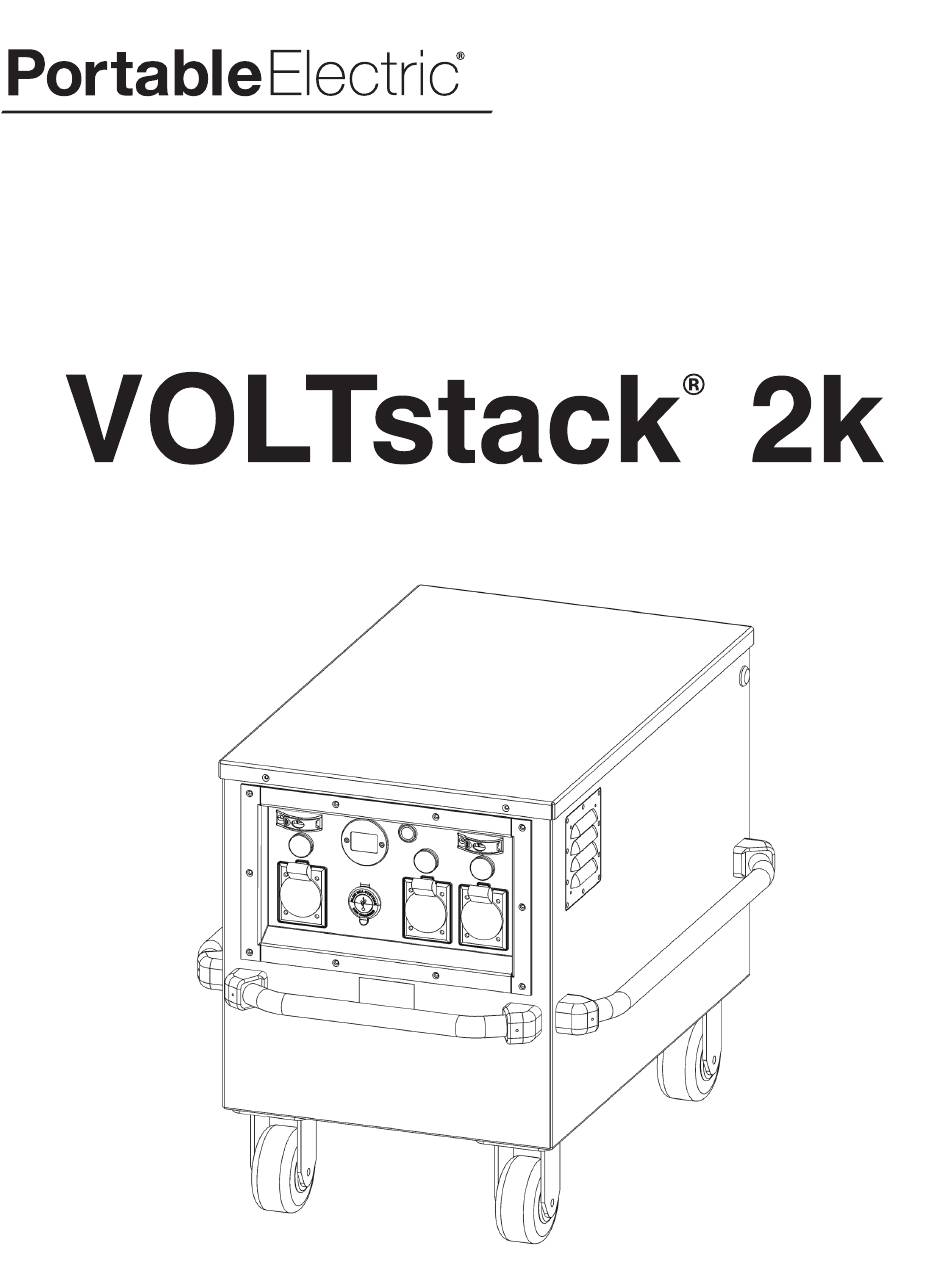

- Page 1 THE FUTURE OF POWER, TODAY. OWNER’S MANUAL North America...
- Page 2 VERSION DATE APPROVED DETAILS November 2019 Initial Release Version 1.0 November 2019...
-
Page 3: Introduction
It is the future of power; simple, ® silent, emissions-free and efficient. Best wishes, Portable Electric Ltd. HELPFUL TIPS Your VOLTstack DOES NOT produce any hazardous emissions or chemicals of any kind. Congratulations on choosing a safer product for yourself, others and the environment. - Page 4 The information and specifications provided in this Owner’s Manual were approved by Portable Electric Ltd at the time of publication. Portable Electric Ltd reserves the right to change or discontinue products at any time without notice. No content in this publication is to be reproduced without the written permission of Portable Electric Ltd.
-
Page 5: Safety Overview
SAFETY OVERVIEW The safety of the operator and those around them is of absolute importance. It is the operator’s responsibility to ensure the VOLTstack is used safely and responsibly. While it is not practical to outline all possible hazardous situations, we have provided many operating procedures and precautions to allow the operator to use the VOLTstack safely with good judgment. -
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION OPERATION STORAGE Applications Storage Environment SAFETY OVERVIEW Battery Storage Capacity Storage Procedure Safety Instruction Convention Battery Monitor State of Charge Storage Precautions Operational Tips and Instruction Convention Battery Monitor Operation VOLTstack Health in Storage Type 1 Battery Monitor TABLE OF CONTENTS TRANSPORTATION Discharging... -
Page 7: Terminology
TERMINOLOGY VOLTstack Power Modes Off: Zero power state with no AC output power Use: Shipping and long term storage Indicators: No lights ON Face Plate and Rear Plate Standby: DC Systems on with no AC output power Use: low power consumption mode, can be used for charging or between operations Indicators: Battery Monitor ON, Master Battery ON, ON/OFF button OFF Power On: All systems on with AC output... -
Page 8: Net Power
SUNstack Solar Kits are a plug and play system developed by Portable Electric which include a SUNstack Solar Panel, and SUNstack Carry Bag and a SUNstack Cable. -
Page 9: Voltstack Safety
VOLTSTACK SAFETY Safety Label Locations MADE IN CANADA DANGEROUS GOODS CLASS 9 LABEL CAUTION: To reduce the risk of electric shock, ground this unit and the supply source and use only in the upright position. ATTENTION: Pour réduire le risque de choc électrique effecluez la mise a la terre de cet appareil a la source d alimef’llation el uliJisez-le uniquement en... -
Page 10: Environmental Considerations
WARNING The unit should be properly monitored by the operator at all times. Do not leave the unit unattended during use. Environmental Considerations VOLTstack units are Type 1 Enclosures and are designed for use in dry environments. Usage when snow, rain or other moisture is present could result in an electric shock or electrocution and should therefore be avoided. -
Page 11: Electrical Arcing
Electrical Arcing The VOLTstack can cause electrical arcing; do not operate near combustible fumes. WARNING Do not operate your VOLTstack near combustible fumes. Electrical arcing within the unit or arcing on inlet/outlet connections can ignite combustible fumes. Grounding VOLTstack units have a ground system that connects frame components to the ground terminals of the AC Input and Output Receptacles. -
Page 12: Connecting To Grid
Connecting to Grid The VOLTstack AC output should not be connected to a grid system. DANGER Do not connect the VOLTstack AC output to any other AC sources such as grid power or generators. Doing so will permanently damage the unit and may cause an electric shock. Version 1.0 November 2019... -
Page 13: Component Identification And Location
COMPONENT IDENTIFICATION AND LOCATION Use the following diagrams to reference component names and locations discussed throughout this Owner’s Manual. Exterior Lid Locks Air Intakes Lift Bars Nameplate Lift Bars Swivel Caster Fixed Casters Grounding Swivel Locking Caster Version 1.0 November 2019... -
Page 14: Face Plate
Face Plate On/Off Button Battery Monitor Charging Breaker Output Breaker Charging Light Output Lights Charging Port Output Receptacles USB 5V Rear Plate Rear Vents USB Data Port (No Charging) Master Battery On/Off Solar Charging Ports Version 1.0 November 2019... -
Page 15: Interior
Environmental VOLTstack Power Block Controller Serial Number Refer to your VOLTstack by the serial number indicated on the nameplate. Portable Electric Ltd Model Name: VOLTSTACK 2K Max A/C Output: 120V / 60 Hz / 20A Max A/C Input: 120V / 60 Hz / 15 A... -
Page 16: Getting Started
GETTING STARTED Pre-Operation Check Before starting your VOLTstack, perform a pre-operation check to avoid any potential issues during use. Ensure Air Intakes and Rear Vents are clear from debris • Ensure unit is in upright position during usage • Ensure proper grounding of the Grounding Lug •... -
Page 17: Operation
OPERATION Applications VOLTstack units can be used to power any device that uses 100-120V AC power and does not exceed a sustained current draw of 20A. The power rating of the device will determine how fast the State of Charge decreases. HELPFUL TIPS Choose lower energy devices when possible to extend the remaining capacity of the VOLTstack. -
Page 18: Battery Storage Capacity
VOLTstack Capacity (Wh) x State of Charge = Run Time (h) Device Power Rating (W) For example, when using a 1000W heater with a VOLTstack 2k at 70% State of Charge: 2800 Wh x 0.7 = 1.96 hours Run Time 1000 W Run Time assumes the device is using constant power. -
Page 19: Battery Monitor Operation
Battery Monitor Operation The Battery Monitor located on the Face Plate is used to display the State of Charge remaining, as well as the VOLTstack Power State. The Power State is based on the Net Power of the VOLTstack. Type 1 Battery Monitor The Type 1 Battery Monitor has ten blue LEDs. -
Page 20: Power On Operation
HELPFUL TIPS AC charge in Power ON mode for best performance. Check your AC charging source to ensure you have enough power available. The VOLTstack 2k will draw maximum power regardless of your source power limitations. AC CHARGING SOURCE REQUIREMENTS... -
Page 21: Solar Charging Operation
The Battery Monitor will not indicate charging if the Net Power is negative. Solar Charging Operation Your VOLTstack has the ability to be recharged from solar energy using SUNstack™ Solar Kits by Portable Electric. Follow the steps below for safe and reliable solar charging. The solar charging input requirements are listed below. -
Page 22: Getting Started
Getting Started 1. From Standby or Power On mode, connect a SUNstack 2. Connect the opposite end of the SUNstack Cable into Solar Charging Port SOL 1 and/or SOL2. Cable into a SUNstack Solar Panel. Step 1 Step 2 3. The Battery Monitor will indicate charging. Charging Complete 1. Disconnect the SUNstack Cable from the SUNstack Solar Panel. -
Page 23: Power On While Charging
WARNING Do not connect solar panels or solar cables that have not been supplied by Portable Electric to your VOLTstack. WARNING Follow the steps of connecting your SUNstack Solar Panel in the correct order. WARNING Exceeding the input voltage limits can cause permanent damage to your unit. -
Page 24: Usb 5V Charging
USB 5V Charging From Standby or Power ON mode, plug your USB device into one of the USB 5V charging ports located on the Face Plate. Self Consumption Even when not in use, The VOLTstack’s State of Charge will still decrease over time. The rate of decrease depends on the Power Mode of the unit. -
Page 25: High Temperature Ac Output
High Temperature AC Output In order to prevent internal damage, your VOLTstack will automatically turn off the AC output power if the ambient temperature exceeds the rated value. In this case, moving the VOLTstack into a cooler environment is recommended. High Temperature AC Charging In order to prevent internal damage, your VOLTstack will automatically de-rate the charging power as the ambient temperature approaches the maximum rated value. -
Page 26: Maintenance
VOLTstack technician. Maintenance Safety Portable Electric has made suggestions for safe maintenance procedures, however we cannot warn of every possible dangerous scenario. It is the responsibility of the owner to decide whether or not to complete a maintenance task. DANGER Ensure the VOLTstack is in Off mode before performing any maintenance. - Page 27 WARNING When cleaning inside your VOLTstack or any exterior electrical components, do not use solvents or water. IMPORTANT Use an anti-static cloth when cleaning all surfaces. Static discharge may damage the internal electronics of your VOLTstack. ITEM ACTION DAILY 3 MO 6 MO 1 YR 2 YR 4 YR Inspection...
-
Page 28: Opening The Lid
Opening the Lid To lock and unlock the VOLTstack Lid, use your VOLTstack Key and rotate the Lid Locks in the direction shown below. Rear Plate Lock MISSING IMAGE Unlock Caster Maintenance The Casters on your VOLTstack should be maintained as per the Maintenance Schedule. Casters should be greased every 6 months or as needed in particularly dirty locations. -
Page 29: Air Intake Filter Maintenance
Mounting Bolt Grease Port Air Intake Filter Maintenance Proper intake of air is critical for reliable operation of your VOLTstack. The Air Intake Filters should be checked as per the Maintenance Schedule and replaced when they are dirty or clogged. IMPORTANT Check the Air Intake Filters more frequently when operating in dusty environments. -
Page 30: Environmental Fan Maintenance
2. Separate the Filter Cover from the Air Intake Filter using a 1/16” Allen wrench and a 1/4” wrench or socket. 3. Replace the Air Intake Filter with a new filter provided by Portable Electric. 4. Reassemble the Air Intake Assembly and re-install it on the unit. -
Page 31: Interior And Power Block Maintenance
At least once a year, do one full discharge and one full recharge. Diagnostic To ensure your Battery Pack is operating at optimal performance over time, a full battery diagnostic should be completed by a certified Portable Electric technician at least every 2 years. Version 1.0 November 2019... -
Page 32: Replacement Parts
VOLTstack still has and whether you need to have your Battery Pack replaced. Replacement Parts We recommend the use of genuine Portable Electric replacement parts whenever maintenance is performed. The use of replacement parts not of original design and quality may negatively affect the performance of your VOLTstack and can affect your VOLTstack warranty. -
Page 33: Storage
STORAGE Storing VOLTstacks can be made safe and easy by following precautions and procedures listed below. Storage Environment The VOLTstack should be stored in a dry location and free of airborne dust and particulates. The unit should be out of direct sunlight and stored in the following ambient temperature conditions: STORAGE TEMPERATURE Minimum Storage Temperature... -
Page 34: Storage Precautions
Storage Precautions The State of Charge of your VOLTstack will slowly decrease even in Off mode. See Operation section above for details on Self- Consumption. To avoid potential damage to the unit, it is important to keep the state of charge above 0% for long periods of unattended storage. -
Page 35: Transportation
TRANSPORTATION The information below is intended as a guideline on how to transport your VOLTstack. It is the responsibility of the owner to ensure safe and legal transport of the unit. Consult your local transportation regulations for the most up-to-date information. Transportation Preparation Follow these steps to ensure safe transport of your VOLTstack: Always transport in Off mode. -
Page 36: Troubleshooting
WARNING Do not ship VOLTstacks on passenger aircraft, ship on cargo aircraft only. IMPORTANT This Equivalency Certificate only applies to air transportation from each state of origin. TROUBLESHOOTING 1. IMPORTANT – Initial Troubleshooting Procedure: Ensure all breakers are in the ON position. •... -
Page 37: Technical Info
TECHNICAL INFO 2k Wiring Diagram Version 1.0 November 2019... -
Page 38: Device Power Ratings
Device Power Ratings COMMON APPLIANCE POWER CONSUMPTION TYPICAL CONSTANT POWER RATING TYPICAL SURGE POWER RATING LOAD LEVEL DEVICE Phone charger 5-10 LED light bulb 4-10 LED TV (60”) 20-Inch Box Fan Laptop Large 50-75 Computer w/ Monitor Drill 1/2” Fridge/freezer Microwave oven 600-1000 800-1200... -
Page 39: Spec Sheet
1 x 120VAC 15 Amp receptacle (NEMA 5-15P type) Recharge time @ 10 Amps (120V) is 2.5 hrs DC CHARGING Input: Up to two SUNstack solar kits supplied by Portable Electric OPERATING CONDITIONS Operating temperature (discharging): -20°C up to 50°C Operating temperature (charging): 0°C up to 50°C... -
Page 40: Dimension Sheet
Version 1.0 September 2019...
