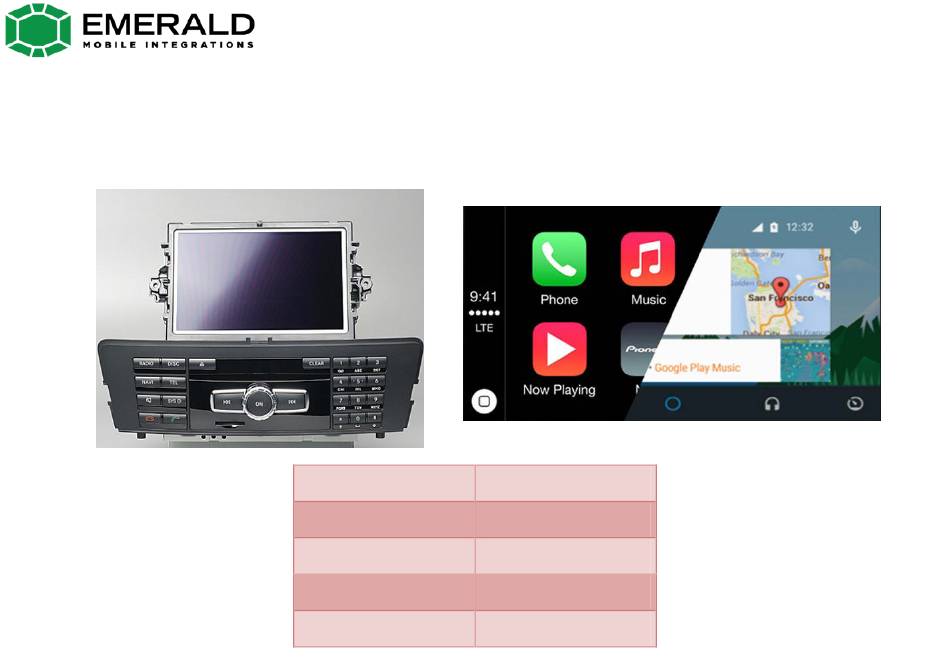

- Page 1 Emerald Integrations CarPlay Integration for Mercedes-Benz NTG 4.5/4.7 MB-NTG4-CP Model No. MB-SW Ver. 060603 CP-SW Ver. C7.1 Manual Ver. Date Nov. 29. 2018...
-
Page 2: Table Of Contents
Content: Warning Compatibility Features Package Components Connection Diagram DIP Setting Operation Instruction How to switch from original to add-on interface Apple CarPlay Android Auto Mirroring USB Multimedia Playback 2 / 15 www.emeraldintegrations.com... -
Page 3: Warning
△ Warning: In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. ... - Page 4 interface whether having a scratch. Please give the feedback to the supplier/manufacturer if there have any questions. Please note that put the disassembled automotive components in a good way on the installation process, avoid scratching the instrument panel, the leftovers of connecting cables need to handle and DO NOT leave it in the car. The connecting plug must be insulated in order to short circuit.
-
Page 5: Compatibility
Compatibility: Brands Class Years Original System A Class (W176) B Class (W246) NTG 4.5/4.7 system with 5.8/7 inch monitor 4 Pin LVDS connector C Class (W204) E Class (W212) Mercedes-Benz CLA (C117) 2012 - 2015 CLS (W218) GLA (X156) GLK (X204) ML (W166) 5 / 15 www.emeraldintegrations.com... -
Page 6: Features
Features: Integrated 3 in 1 module supports Apple CarPlay, Android Auto, and screen mirroring functions Supports USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) Offers 2 CVBS video-in for front/rear view camera ... -
Page 7: Package Components
Package Components: Quadlock Main Power Cable 4 pin LVDS Cable Optional Component: USB/MIC Cable External Microphone (Needed when a car without Main Unit MIC) Dimension: 143*102*26 mm 7 / 15 www.emeraldintegrations.com... -
Page 8: Connection Diagram
Connect to head unit OEM Head Unit OEM Screen Provided 4pin LVDS Cable CarPlay Integration for NTG 4.5 OEM 4pin LVDS Cable OEM Quadlock Connector Connection Diagram Main Quadlock Power Cable chart A below Connect External MIC (Optional) USB Connector 8 / 15 www.emeraldintegrations.com... - Page 9 Chart A: ACC_OUT Supply power for DVR or other video devices. Just connect the ACC_OUT (RED) when use aftermarket front view camera Connect GND if there is any audio noise GND 2 FM audio transmitter BT audio transmitter LEFT_DET NOTE! Other ways like connect to FM/BT audio transmitter RIGHT_DET could be also used for audio transmission to factory radio.
-
Page 10: Dip Setting
DIP Setting: Disable Dynamic Parking Guideline Enable Dynamic Parking Guideline Disable 360 Panoramic Enable 360 Panoramic CVBS VGA (360 mode) Display front view camera for 10S automatically after shifted Skip front view camera (Long press “BACK” button to display front from “R”... -
Page 11: Operation Instruction
Operation Instruction: How to switch from Original to Add-on interface Add on module UI: Apple Android Return to Order: OEM - Add on - DVR - OEM CarPlay Auto Video Original Long press “BACK” OEM UI Add on Module Interface DVR Video in (DIP No. -
Page 12: Apple Carplay
Apple CarPlay NOTE! Disconnect the Bluetooth connection between the phone and car stereo when using Apple CarPlay. Return to add-on module UI ○ : Click as return to the previous step; long press for switch mode: OEM-Add on-DVR-OEM ○ ○... -
Page 13: Android Auto
Android Auto ○ ○ ○ ○ A area ○ B area NOTE! ○ : Menu-pointer switch to A area Make sure smartphone connect to original car stereo Bluetooth for ○ : Menu-pointer switch to B area phone call audio delivering when using Android Auto. ... -
Page 14: Mirroring
Mirroring NOTE! Please always trust or allow when display a popup notification Enabling “USB Debugging” on an Android device Connect Android smartphone/iPhone with USB cable, and then Android device must connect to car stereo BT for all audio delivering enter “MirrorLink”... - Page 15 30-Day Money-Back Guarantee At Emerald Integrations, we want to make sure that you are completely satisfied. If for some reason you aren't happy with an item on your order and want to return it, we make returns and refunds extremely simple.
