- Page 1 AUDI 3G MMI Model: QVI-AUD09-V5 Specification & Installation www.emeraldintegrations.com...
-
Page 2: Table Of Contents
Contents 1. Before installation 1.1 Main specification 1.2 Features 1.3 System diagram 1.4 Components 1.5 Exterior 2. SETUP 2.1 DIP switch 2.2 Remote control 2.3 Original buttons in car 2.4 OSD implementation 2.5 OSD (on screen display) 2.6 FACTORY mode 2.7 Rear view parking guide line 2.8 Touch calibration 2.9 Remote control button... -
Page 3: Main Specification
1.1 Main specification 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Analog R, G, B, C sync - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 3 x A/V (NTST & PAL) Input. - 1 x LCD Input (Car system Input) 2. -
Page 4: Features
1.2 Features DVD, DTV and navigation control via touching screen DVD, DTV control via registering values of the buttons on the remote control (only for models including remote control) Installation from the direction of the command DVD, DTV, navigation control via MMI controller ... -
Page 5: System Diagram
1.3 System diagram Remote Control Switch for source toggle NVI Touch Input Controller Navigation Input A/V1 In/Out A/V2 VIDEO A/V3 CIRCUIT VIDEO MUX CVBS (Rear Camera) POWER CIRCUIT HEADREST TOUCH MONITOR NAVI DIP S/W Power Input (+10VDC~+16VDC) www.emeraldintegrations.com... -
Page 6: Components
1.4 Components IR cable * 1ea REAR CAMERA POWER cable * 1ea MODE cable * TOUCH IN cable * 1ea Main board * 1ea TOUCH OUT cable * 1ea AV cable * 1ea POWER cable * 1ea RGB cable * 1ea LVDS IN cable * 1ea www.emeraldintegrations.com... -
Page 7: Exterior

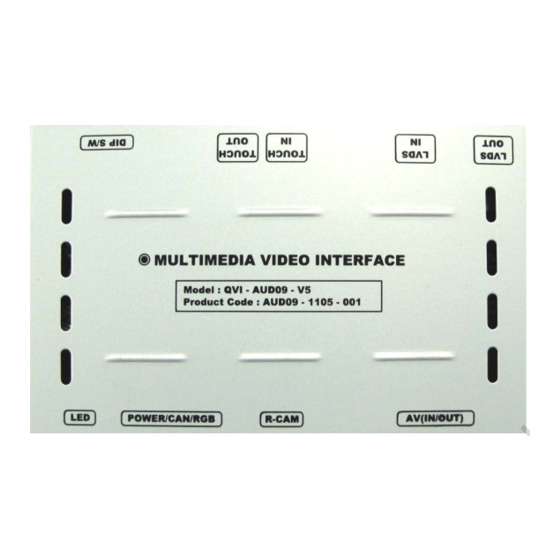

1.5 Exterior ⑨ ⑧ ⑦ ⑥ ⑤ Dimension ⑨ ⑧ ⑦ ⑥ ⑤ Horizontal length 146mm Vertical length 88mm Height 25mm ① LED ② POWER/CAN/RGB ③ Rear camera ④ AV(IN/OUT) ⑤ LVDS OUT ⑥ LVDS IN ① ② ③ ④ ⑦... -
Page 8: Dip Switch
2.1 DIP switch ※ ON : DOWN, OFF : UP #PIN function DIP S/W selection ON : Skipping RGB Mode ※ DIP S/W usage RGB INPUT skip [AUDI09 6.5”] OFF : RGB Display - Input mode to intend to use ON : Skipping A/V 1 : A/V3(DVD), Navigation (RGB) A/V 1 skip... -
Page 9: Remote Control
2.2 Remote control Function POWER & PIP Not for use MENU OSD implementation Making a selection Move upward ▲ Move downward ▼ Move leftward, press 2 seconds long-Factory ◀ mode implementation Move rightward, press 2 seconds long-Factory ▶ Mode implementation-Factory mode Reset www.emeraldintegrations.com... -
Page 10: Original Buttons In Car
2.3 Original buttons in car ③ ⑩ ① ⑨ ⑧ ⑤ ④ ② ⑦ ⑥ NAVIGATION implementation DVD, CMMB implementation mode change unavailable so far ① move upward ⑤ confirm If there is the MODE handle button ② move downward ⑨... -
Page 11: Osd Implementation
2.4 OSD implementation OSD implementation - DVD To implement DVD OSD menu, installer must install DVD system on AV1 and connect “DVD IR” cable among navigation cables with remote sensor cable of DVD. First of all, if you touch the screen on mode ”AV1”, you can see the menu as shown left. -
Page 12: Osd (On Screen Display)
2.5 OSD (on screen display) OSD menu: Press ”MENU” button on the remote control. Analog RGB Analog RGB Analog RGB Video Video Video IMAGE UTIL - BRIGHTNESS - LANGUAGE : To change the language - FACTORY RESET : To reset all the - CONTRAST displaying on navigation, DVD, CMMB OSD values about navigation, DVD... -
Page 13: Factory Mode
2.6 Factory mode Factory mode: press ◀ button 2 seconds long. IMAGE - H-POSITION : Control over horizontal movement of screen - V-POSITION : Control over vertical movement of the screen - NAVI MODEL : DEFAULT, KD900(WVGA), MD7000(WVGA),MYVI(WVGA),PAPAGO(WVGA) - CAR MODEL : DEFAULT, 2011 A7,8-NEW - AVOUT SELECT : DEFAULT, AV1, AV2, AV3 PARK - PARK ENABLE : Setup of rear view parking guide line... -
Page 14: Rear View Parking Guide Line
2.7 Rear view parking guide line Factory mode: press ◀ button 2 seconds long. ① Register the value needed on the “PARK ENABLE” as “ON” in the PARK section as shown left. (default – ON) ② If you get rear gear after setup, parking guide line will appear on screen as shown left. -
Page 15: Touch Calibration
2.8 Touch calibration >>> ① First of all, press ◀ button on remote controller 2 ③ Then you can see “touch calibration” on screen about 2 seconds long as shown above. seconds long. Then you can access to the FACTORY mode. -
Page 16: Remote Control Button
2.9.1 Remote control button Registering value of remote control buttons? When you want to control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option-SANYO and NECVOX, you can register value of DTV and DTV’ s remote control which you have. Then you can control DVD and DTV via touch screen. - Page 17 2.9.2 Remote control button >>> Instruction> continued… ③ After register, select “INPUT” in OSD menu and c. The values that you registered will appear as green press “OK”. Then you can see confirmation window as text in the marked area on pressing the button. And shown above.
-
Page 18: Dvd, Cmmb Model Selection
2.10 DVD, DTV model selection Factory Default : DVD TYPE – NECVOX/SANYO (For Chinese DVD) CMMB TYPE – ? (For Chinese DTV) CMMB TYPE DVD TYPE UTIL – DVD/DTV TYPE If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote control that you want to use in the “IR MEMORY”... -
Page 19: Troubleshooting
3. Troubleshooting Q. I can not switch A/V sources. A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well.
