Summary of Contents for Tokai LAR-91B

  • Page 2: Cher Client

    AVANT DE COMMENCER CHER CLIENT En choisissant cet appareil, vous avez fait le premier pas vers le plaisir de l’écoute musicale. Maintenant, c’est le moment de vous dévoiler comment optimiser les fonctions de cet équipement. Tout d’abord, il est important de savoir comment écouter de la musique à un niveau sonore sans danger, suffisamment fort et clair, non tonitruant et sans distorsion –...
  • Page 3: Installation De L'appareil

    2. INSTALLATION DE L’APPAREIL Il s’agit d’une méthode d’installation à système antivol. L’appareil est équipé d’un châssis de montage métallique. Veuillez effectuer les connexions telles que l’alimentation, hauts– parleurs et l’antenne conformément aux exigences du manuel d'instructions, puis installez le châssis métallique de montage dans la voiture selon le schéma illustré...
  • Page 4 3. DESCRIPTION DE L’ARRIERE DE L’APPAREIL CABLAGE HAUT-PARLEUR CONNECTEUR ISO FIXE Note: LES CONNECTEURS ISO PEUVENT ETRE ACHETES DANS TOUT MAGASIN D’ACCESSOIRES Important : SI LE CONNECTEUR ISO FIXE EST COUPE, LA GARANTIE SERA ANNULEE.
  • Page 5: Emplacement Des Commandes

    4. EMPLACEMENT DES COMMANDES Description de la façade avant de l'appareil Description de la façade avant de l'appareil après avoir enlevé le panneau frontal 1. Touche RELEASE (Détacher) 11. Touche Présélection 3/REPETITION 2. Bouton SELECTION & VOLUME 12. Touche Présélection 4/LECTURE ALEATOIRE 3.
  • Page 6 5. FONCTIONNEMENT GENERAL DES COMMANDES 1. Allumer & éteindre l'appareil Lorsque l'appareil est éteint, il peut être mis en marche en appuyant sur n'importe quel bouton sauf le bouton RELEASE. Lorsque l'appareil est allumé, appuyez et maintenez le bouton POWER pour mettre l'appareil hors tension 2.
  • Page 7 5. FONCTIONNEMENT GENERAL DES COMMANDES a) TA SEEK /TA ALARM (Recherche Infos Trafic /Alarme): Mode TA SEEK (Recherche): lorsque vous réglez une station de radio qui ne reçoit pas l’ informations TP au bout de 5 secondes, la radio recherche la station de radio suivante ayant un PI différent mais recevant la même information TP.
  • Page 8: Fonctionnement De La Radio

    5. FONCTIONNEMENT GENERAL DES COMMANDES (suite) 6. Réglage de l’horloge Pour effectuer le réglage de l’horloge : appuyez longuement sur CLK jusqu’à ce que l’heure clignote à l’écran, ajustez les HEURES et MINUTES grâce au bouton de VOLUME. Une fois le réglage de l’heure établi, appuyez sur CLK brièvement pour afficher l’heure à...
  • Page 9: Programme Type

    7. FONCTIONNEMENT DE LA RADIO (suite) 4. Recherche automatique des stations Appuyez longuement sur le bouton BND pour activer la fonction de stockage automatique. L'appareil scanne la bande et présélectionne les stations avec le plus fort signal. (18 stations en FM, 12 stations en AM).
  • Page 10: Mode Usb

    8. MODE USB 1. LECTURE USB / FENTE CARTE SD/MMC Pour lire un périphérique USB, insérez la clé USB dans le port compatible USB. Le système se met en mode USB automatiquement et la lecture du premier fichier démarre. Pour lire une carte SD/MMC, insérez la carte SD/MMC dans la fente compatible pour carte mémoire. Le système se met automatiquement en mode CARTE MEMOIRE et la lecture du premier fichier démarre.
  • Page 11 Une fois la recherche effectuée, votre téléphone mobile affichera les appareils Bluetooth trouvés. Sélectionnez votre autoradio qui apparaitra sous le nom TOKAI. Une fenêtre s’affiche vous demandant d’entrer un mot de passe. Entrez le mot de passe suivant : 0000, l’appareil vous indiquera BT READY.
  • Page 12 9. BLUETOOTH 6. Composer ou recevoir un appel lorsque l'appareil est en mode veille Si l'autoradio est en mode veille ou hors tension et que vous passez ou recevez un appel, l'autoradio se mettra en marche automatiquement. Une fois l'appel terminé, la radio repasse en mode veille. A2DP &...
  • Page 13: Guide De Depannage

    10. GUIDE DE DEPANNAGE En cas de panne, vérifier d'abord les points énumérés ci-dessous avant de prendre votre appareil pour réparation. Si vous ne parvenez pas à remédier à un problème en suivant ces conseils, consultez votre revendeur ou centre de service. AVERTISSEMENT: En aucun cas vous ne devez essayer de réparer l'appareil vous-même, car cela annule la garantie.
  • Page 14: Caracteristiques Techniques

    11. CARACTERISTIQUES TECHNIQUES GENERAL Alimentation électrique Masse de polarité négative DC 12V. Consommation Max.10A Sortie de puissance 4X 45Watts (mesurée à DC 14.4V) Nombre de canaux 2 canaux STEREO. Dimensions 178[L] X 101.5 [P] X 50[H] mm. SECTION FM Portée de fréquence 87.5MHz - 108MHz Sensibilité...
  • Page 15: Mise Au Rebut En Fin De Vie

    Par la présente, LEMA SAS déclare que l’appareil (type d’appareil) est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive R&TTE 1999/05/CE. La déclaration de conformité peut être demandée via le site internet www.tokai.fr (rubrique : contact).
  • Page 16: Before Operation

    1. BEFORE OPERATION Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers. We want you to get the most out of your equipment by playing it at a safe level.
  • Page 17: Unit Installation

    2. UNIT INSTALLATION...
  • Page 18: Wiring Connection

    3. WIRING CONNECTION DESCRIPTION OF THE BACK OF THE UNIT SPEAKER WIRING FIXED-ISO CONNECTOR Note: IF YOUR CAR DOES NOT HAVE ISO CONNECTOR YOU CAN PROCURE IT FROM ANY ACCESSORY SHOP Important IF FIXED-ISO CONNECTOR IS CUT, THE GUARANTY WILL BE VOID.
  • Page 19: Location And Functions Of Controls

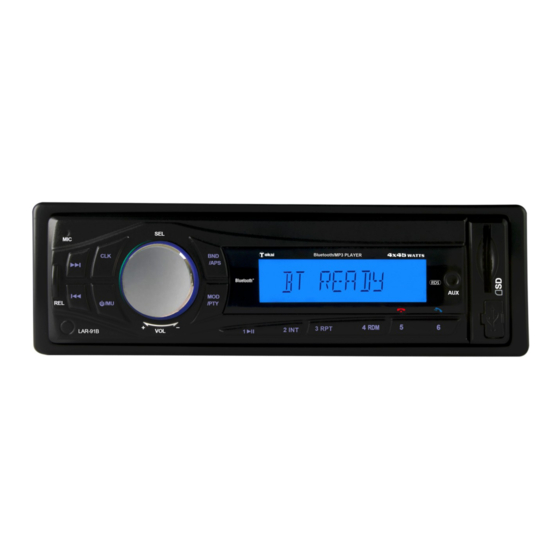

    4. LOCATION AND FUNCTIONS OF CONTROLS The figure of the front panel The figure of the Unit Chassis Facet after removing the Front Panel 1. RELEASE button 11. PRESET 3/REPEAT button 2. SELECTION & VOLUME knob 12. PRESET 4/RANDOM button 3.
  • Page 20: Common Operation

    5. COMMON OPERATION 1. To turn the unit on/off. In power off mode, press any button except RELEASE button to turn on the unit. In power on mode, long press the POWER button to turn off the unit. 2. To select function mode Press MODE button to change function mode as follows: -->TUNER -->USB -->CARD -->BT-->AUX.
  • Page 21: Vol Last/Vol Defa

    5. COMMON OPERATION (continued) (2) PI SOUND/ PI MUTE: PI SOUND mode: If a car is cruising between buildings, an oscillation phenomenon may occur, due to different PI codes being received from the same AF. PI MUTE mode: In above situation, the sound will be muted for less than 1 second. (3) RETUNE L / RETUNE S: The initial time of automatic TA search or PI SEARCH mode is selected.
  • Page 22: Radio Operation

    6. RADIO OPERATION 1. To select radio band Press BAND button briefly and repeatedly to select a desired radio band in sequence and circulation as follows: -->FM1-->FM2-->FM3-->MW1-->MW2-> 2. To search for radio station manually or automatically Press button briefly to manual tune up/down for your desired radio stations step by step. Press and hold button for 0.5 seconds, to automatically tune up/down for a radio station of strong signal.
  • Page 23 6. RADIO OPERATION ( continued) When AF switching mode is selected, the radio checks the signal strength of AF all the time. The interval of checking time of each AF depends on the signal strength of the current station, from a few minutes for strong station to a few seconds for weak station.
  • Page 24: Usb & Sd Operation

    8. USB & SD OPERATION 1. To insert or pull out SD card or USB stick To read audio files from your SD or USB, insert an SD card or USB stick into the card slot or USB socket. Then the playing mode will be changed into SD or USB mode and display Card or USB on LCD (When SD card and USB stick are both inserted into the slot or socket, the playing mode will be changed into the mode of the latter one), and then play the first track of SD or USB.
  • Page 25 BT READY. IMPORTANT: Only one phone can be paired at a time with the LAR-91B. To pair another phone, disconnect the paired phone wait until NO CON is displayed on the LCD and follow the instructions of PAIRING described as above to match another device.
  • Page 26 9. BLUETOOTH 5. Volume level setting calling While talking, use volume control to adjust volume level, but this volume level cannot be saved. 6. Calling or receiving calls while the unit is in sleep mode When the unit is in standby mode & when you make a call or receive a call, the car radio will power on automatically.
  • Page 27: Troubleshooting

    10. TROUBLE SHOOTING If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult you dealer or service center. WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.
  • Page 28: Specifications

    11. SPECIFICATIONS GENERAL Supply Voltage DC 12V Negative Ground Current Consumption Max.10A Power Output 45Watts x 4 (at DC 14.4V) Number of Channels 2 STEREO channels Unit Dimensions 178(W) x 108(D) x 50(H) mm FM SECTION Frequency Range 87.5MHz - 108MHz Effective Sensitivity 3uV.
  • Page 29: End Of Life Disposal

    We company LEMA SAS hereby states that the unit (unit type) complies with the essential requirements and other relevant provisions of the Council Directive R&TTE 1999/05/CE. The Declaration of Conformity is available on request at the website www.tokai.fr (heading: Contact).
