Outdoor Wireless Bridge User Guide
TABLE OF CONTENTS
.......................1
2.Installa on flow chart .........................2
3.Hardware installa on ...........................2
4.Digital display bridge ...........................3
...........................3
.......................9
7.Quick installa on method .......................15
Advertisement
Table of Contents
Related Manuals for ONV CPE300
Summary of Contents for ONV CPE300
-
Page 1: Table Of Contents
Outdoor Wireless Bridge User Guide TABLE OF CONTENTS .......1 1.Hardware installa on method 2.Installa on flow chart ......2 3.Hardware installa on ......2 4.Digital display bridge ......3 5.Log in to the CPE system ......3 6.Equipment opera on interface .......9 7.Quick installa on method .......15... -
Page 2: Hardware Installa On Method
1.Hardware installation method 2.Installation flow chart Hardware connection-Set up your computer-Login management interface-Set up your CPE -Test wireless-Set up installation CPE interface 3.Hardware installation Way1 Use a network cable to connect theWAN to a PC, LED: Display the pairing number. Wall router or switch baseon the network topology. -
Page 3: Digital Display Bridge
CPE through the network cable. Note that the POE power supply needs to match the voltage and current supported by the CPE. Here the power supply support 24V 0.5A/1A (model: CPE300) or 48V 0.45A/0.6A (model: CPE300P). 4.Digital display bridge 1. - Page 4 Wireless AP interface Routing mode: realize the router function, connect the WAN port to the modem (ADSL modem or fiber optic modem) dial-up Internet access or WAN port dynamic, static IP address Internet access. Way1 A variety of working modes are displayed by default after login Way2...
- Page 5 Routing mode: realize the router function, connect the WAN port to the modem Relay mode: In this mode, it usually refers to a one-to-one situation. The wireless (ADSL modem or fiber optic modem) dial-up Internet access or WAN port dynamic, CPE at both ends of the bridge only communicates with the opposite wireless CPE at the other end.
-
Page 6: Equipment Opera On Interface
6.Equipment operation interface Working mode interface, you can choose advanced settings and debug specific parameters 2.2 Advanced settings WMM: WMM is a wireless QoS protocol that is used to ensure that high-priority packets have the priority to send rights, so as to ensure that voice, video and other applications have better service quality in wireless networks. - Page 7 Fragment threshold: Set the fragmentation threshold of the frame. 3.Network settings The basic principle of fragmentation is to divide a large frame into smaller fragments, and 3.1 LAN settings Modify the IP mode of the device, automatically obtain or static IP. each fragment is transmitted and confirmed independently.
- Page 8 4. More settings 5. System Tools 4.1 LAN port rate 5.1 System time WAN port and LAN port, 10M/100M full-duplex and half-duplex rates are optional, Network time and manual time, and time zone selection. 5.2 Equipment management auto-negotiation by default. Operation options such as upgrade, reset, backup, and restart.

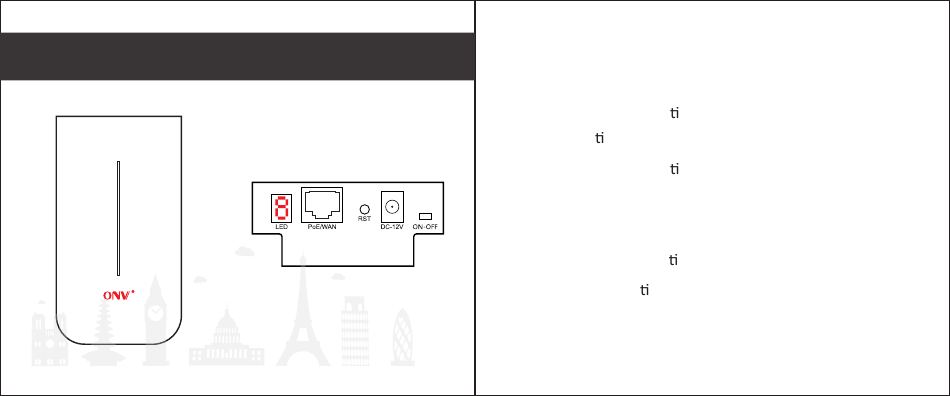

- Page 9 Interface Description 6.Equipment operation interface Accessories List Stainless steel strip Network cable (white) Power adapter LED indicator—Wireless bridge status. PoE/WAN port—PoE power supply and data transmission. Reset port—Press for 20 seconds and release to restore factory settings. Network cable (white) DC port—Wireless bridge power supply, free choice of PoE or DC power supply.
- Page 10 Installation method Optical Network Video Technologies (Shenzhen) Co., Ltd. Tel: 0086-755-33376606 Fax: 0086-755-33376608 Email: onv@onv.com.cn Website:www.onvcom.com Wall Zip: 518000 Headquarter Address: Room 1003, Block D, Terra Building, Futian District, Shenzhen,China Factory Address:The 4-6th Floor, No. 59, Huaning Road, Xinwei Community, Dalang Street,...
