- Page 1 VIEWEG Dosier- und Mischtechnik OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 Made in Germany V1. 1 Juni 2015 © VIEWEG GmbH...
-
Page 2: Table Of Contents
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 TABLE OF CONTENTS 1. Table of contents . 02 2. Designated use . . 03 3. For your safety . . 03 4. Technical Data . . 04 4. 1 Parts & Description . -
Page 3: Designated Use
• If the PPD3000 is used for other functions as in this manual described, it could come to personal or material damage. Use the PPD3000 peristaltic pump only in the functions, which are explained in this user manual. VIEWEG GmbH is not respon- sible for personal or material damages, which happen because of incorrect using and no designated use. -
Page 4: Technical Data
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 4. TECHNICAL DATA Measurement 260 x 210 x 70mm Weight 2,20 kg Power supply 85 – 264V AC 50/60Hz Internal Voltage 24V DC Mode • Tube FILLING / EMPTYING • Continous (Manual) • Steps (number of steps for volume dispensing: Program 1 –... -
Page 5: Parts & Description

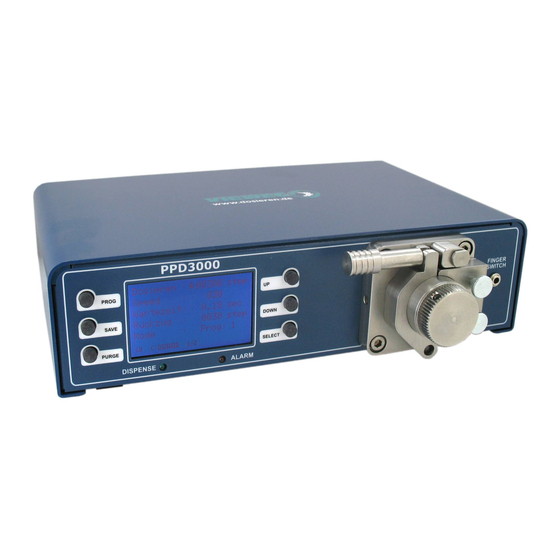

VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 4.1 PARTS & DESCRIPTION [Front side] Operating keys Guide lock Pump head incl. tube bed and rotor Graphic display Status LED‘s Connector for finger switch [Back side] Foot switch Power switch I/O-Port Power inlet... -
Page 6: Parts Of Delivery
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 5. PARTS OF DELIVERY • PPD3000 peristaltic pump • Power Inlet cable • User Manual • Fingerswitch • Dispensing wand • Tube set starterkit 6. START OPERATION • Connect the power inlet cable to the Power inlet connector on the backside. - Page 7 VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 • Start the pump now with low speed by pressing the PURGE key and close the tube guide carefully. Fix the tube at the pump head with the other knurled screw. Press the PURGE key again to stop the pump rotating.
-
Page 8: Operation
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 7. OPERATION: 7.1 Display – Menu page 1 (values can be different) Parameters Marking Selected values Dispense 01234 step Speed Wait time 0.20 Retract 0100 step Mode Prog: CW C: 000027 Rotation Total... -
Page 9: Status Led´s
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 7.2 STATUS LED´S Below the display are the status-LED´s of the PPD3000: RUN: The RUN LED lights, during the motor of the pump is rotating, ALARM: The ALARM LED lights, during the following conditions: •... -
Page 10: Parameter
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 8. PARAMETER: • Select Mode Pressing the PROG key switches to the next program FILLING: This mode is used to fill the tube. The rotation direction must be set to CW, otherwise EMTYING appears in the display. - Page 11 VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 • Set the Teach-In function: The Teach In function can be set ON / OFF. If the function is ON, the number of steps get added to the last value of dispensing steps and did not get set to 0000 with a new dispensing.
-
Page 12: Service Menu
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 9. SERVICE MENU: (UP + DOWN keys during initialisation) 9.1 Display: SERVICE Language Selected language I-Hold Selected current HOLD I-Run Selected current RUN Service 00000239 Service counter 9.2 Settings: By pressing the SELECT button you can switch between menu items (indicated by the mark) •... -
Page 13: Electrical Connections
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 10. ELECTRICAL CONNECTIONS: 10.1 Foot switch: Pins: connection between Pin 1 + 3 starts dispensing 10.2 I/O-PORT: Type: 15-pol. SubD female 2-doublerow Pins: see following chart pin no. Input / Output Description: Comment:... -
Page 14: Wiring Diagrams
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 10.3 WIRING DIAGRAMS: Digital Inputs: A digital input is active, if the opto coupler is ON. If the opto coupler is connected to GND, the input is activated: PPD3000 Opto coupler PPD3000 I/O-Port Input... - Page 15 VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 Foot switch: The foot switch signal gets activated if the input pin is connected to GND. It is not allowed to apply a voltage. This can destroy the input ! PPD3000 Input Microcontroller...
-
Page 16: Maintenance And Cleaning
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 11. MAINTENANCE AND CLEANING MAINTENANCE ROTOR: Lubricate the rotor of the pump head once a week. The lubricant helps to extend the life of the used tube. The material tube should, however, be replaced regularly. The tube life is strongly dependent on the speed of rotation and the material to be dispensed. -
Page 17: Declaration Of Conformity
VIEWEG OPERATING MANUAL DIGITAL PERISTALTIC PUMP PPD-3000 13. DECLARATION OF CONFORMITY ... - Page 18 VIEWEG Vieweg GmbH Dosier- und Mischtechnik Gewerbepark 13 85402 Kranzberg Tel. +49 (0) 81 66 / 67 84 - 0 Fax +49 (0) 81 66 / 67 84 - 20 info@dosieren.de www.dosieren.de...
