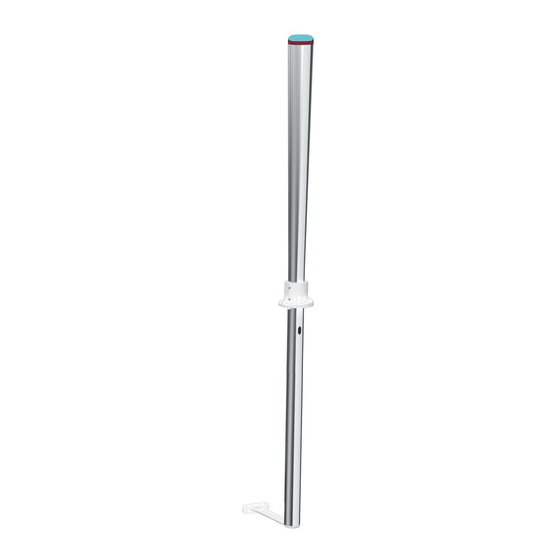

USER'S MANUAL
NS40 EAS SYSTEM:
USING NS40 PEDESTAL &
NEO CONTROLLER
REVISIONS
DATE
ENGINEER
08/13/20
S. SINGH
DOC SPEC
DWN
CHK
ENG
APPD
NOTICE TO PERSONS RECEIVING THIS DRAWING
AND/OR TECHNICAL INFORMATION:
Checkpoint Systems claims propriety rights to the material disclosed hereon. This drawing
and/or technical information is issued in confidence for engineering information only and
may not be reproduced or used to manufacture anything shown or referred to hereon
without direct written permission from Checkpoint Systems to the user. This drawing and/or
technical information is the property of Checkpoint Systems and is loaned for mutual
assistance, to be returned when its purpose has been served.
THIS DRAWING AND/OR TECHNICAL INFORMATION IS THE PROPERTY OF
CHECKPOINT SYSTEMS, INC.
REV
DESCRIPTION
DATES
Size US
Letter
Scale: N/A
REVISIONS
DATE
10035527
 Checkpoint Systems, Inc. 2020
APPROVED
Page 1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS40 and is the answer not in the manual?

Questions and answers

Related Manuals for Checkpoint NS40

Summary of Contents for Checkpoint NS40

  • Page 1 Checkpoint Systems to the user. This drawing and/or NS40 EAS SYSTEM: technical information is the property of Checkpoint Systems and is loaned for mutual assistance, to be returned when its purpose has been served.
  • Page 2 WARNING: Changes or modifications to Checkpoint’s EAS equipment not expressly approved by the party responsible for assuring compliance could void the user’s authority to operate the equipment in a safe or otherwise regulatory compliant manner.
  • Page 3 If this equipment experiences frequent interference from external sources or does cause harmful interference to radio communications reception, which can be determined by turning the equipment off and on, please contact a Checkpoint Systems representative for further assistance.
  • Page 4 USER'S MANUAL, NS40 WEEE Marking All products that are subject to the WEEE Directive supplied by Checkpoint are compliant with the WEEE marking requirements. Such products are marked with the "crossed out wheelie bin" WEEE symbol shown below in accordance with European Standard EN 50419.

  • Page 5: Table Of Contents

    6.4.1 Optional Ferrite on DC Cord near PSU AC/DC Adapter ................19 DEVICE LABELING ........................21 External Label ........................... 21 CHECKPOINT SYSTEMS, INC. CONFIDENTIAL AND PROPRIETARY INFORMATION, FOR INTERNAL USE ONLY Document No. 10035527 Rev. 00 Page 5 of 21...
  • Page 6 FIGURE 4: COMMON FERRITES ............................20 FIGURE 5: OPTIONAL FERRITE CORE PLACEMENT, NEAR PSU ADAPTER ............20 LIST OF TABLES TABLE 1-1: NS40, CONTROLLER AND PSU PART NUMBERS ................... 7 TABLE 4-1: UPPER BAY SPARES ............................. 10 TABLE 4-2: CONTROLLER PCB "CAGE" SPARES ......................11 CHECKPOINT SYSTEMS, INC.

  • Page 7: Introduction

    USER'S MANUAL, NS40 INTRODUCTION The NS40 is an EAS Pedestal which has some unique aspects to it, both visually and in terms of the way it works. NS40 can be considered part of the NEO "Range" or Product Family. It...

  • Page 8: Using This Guide

    USER'S MANUAL, NS40 Using this Guide You can review NS40 features and learn about the hardware which provides functionality in this document. For Product Specifications, please see Section 4.0. This document does not provide any instructions for installation or site planning.

  • Page 9: General Description

    The controller ships in the default configuration of Detector mode, and there should be no need to reconfigure this setting. Each controller drives 1 NS40. At the time of this publication, NS40 does not support PAB/SAB or the "2 SSB" Remote Installation layout. 2.1.3 Configurable alarm sound/light color...

  • Page 10: System Hardware

    10035460 ^SOM,NS40 The same SOM unit (CKP P/N 10034668) is used in both NS40 and NG10. The thermal pad used is the only difference. Also, for NS40 the thermal pad is pre-applied in the correct place. The NS40 Quick Start Guide will describe SOM replacement.

  • Page 11: Led Board

    One (1) USB Bluetooth module (dongle) comes standard. However, NS40 does not come with WiFi dongle pre-installed. So if WiFi is plannd, it’s necessary to upgrade the planned master. NS40 does NOT support Cell Modem (due to the large size of the Cell Modem, there is no space for the device to fit).

  • Page 12: Remaining Hardware

    The FS Technician should never have to inspect/repair a coupler board, because they are Factory-Installed and Ready "As Manufactured." On the NS40 coupler board, there is no hardware tuning (no PCB Jumpers, which is different from Evolve).

  • Page 13: Specifications

    Expansion (e.g. Hub board) B2B connector (1): 2 x 12 Header PCB-mount, Right Angle System Controller Mechanical Specs: Small PCB about the size of a credit card CHECKPOINT SYSTEMS, INC. CONFIDENTIAL AND PROPRIETARY INFORMATION, FOR INTERNAL USE ONLY Document No. 10035527 Rev. 00 Page 13 of 21...

  • Page 14: Light And Speaker Board

    USB serial interface: USB Type A ports (3). Typically at least 2 USB ports are in always in use. These two uses are (1) Data from Lower Bay and (2) Bluetooth USB Dongle. The third available USB port can be used for WiFi in NS40 (no physical space to accommodate Cell Modem in NS40).

  • Page 15: Io Board (Gpio Module)

    Wire type: 26 AWG PVC, stranded wires (Red and Black color) Connector, Lights and Sound Board side (speaker output terminal): Hirose DF13-2S-1.25C Crimp Terminals: Hirose DF13-2630SCFA(04), Qty 2. CHECKPOINT SYSTEMS, INC. CONFIDENTIAL AND PROPRIETARY INFORMATION, FOR INTERNAL USE ONLY Document No. 10035527 Rev. 00...

  • Page 16: Led Board

    Electrical specs: Connector port (1): 7-Pin Hirose connector Switch on it SPST Simple Switch (depress button) Required Cable (available as a FS spare): ^CABLE ASSY,LED NS40 (10035418) Power input rating: 24V / 60mA Environmental All the internal electronics shall meet or surpass the listed environment specifications: Operating Temperature: 0°...

  • Page 17: Using Dms To Apply Software Settings

    USER'S MANUAL, NS40 USING DMS TO APPLY SOFTWARE SETTINGS Checkpoint DMS is by-license-only software, which will be used by field service, engineering and manufacturing to set up NS40. Tuning can be performed using DMS. Transmit Power and other critical settings are checked/set with the help of Analog View and similar software features.

  • Page 18: Power Supply Requirements

    POWER SUPPLY REQUIREMENTS General Details The Power Supply Unit (PSU) is sold separately from the NS40 and NEO Controller. The NEO Controller requires +24 Volts DC supplied at J6 or J14 of the EAS Sensor. PSU which is suitable shall be an external AC/DC converter power supply rated at 24VDC nominal, with LPS either 50W or 90W maximum.

  • Page 19: Plenum Psu Installation

    The NS40 Install Kit contains the required ferrite cores, which are applied to the DC power cord and other I/O cables. Refer to the NS40 Quick Start Guide for ferrite core number of turns, type and placement on the system I/O cables.

  • Page 20: Figure 4: Common Ferrites

    Figure 4 shows other types which can be used. You can apply this (or any) ferrite core with 4 turns near the DC output as shown. CHECKPOINT SYSTEMS, INC. CONFIDENTIAL AND PROPRIETARY INFORMATION, FOR INTERNAL USE ONLY Document No. 10035527 Rev.

  • Page 21: Device Labeling

    DEVICE LABELING External Label NS40 has only the Serial Number/Agency Label which includes the regulatory information, as well as the Model Name and serial number of the unit manufactured. CHECKPOINT SYSTEMS, INC. CONFIDENTIAL AND PROPRIETARY INFORMATION, FOR INTERNAL USE ONLY Document No.
