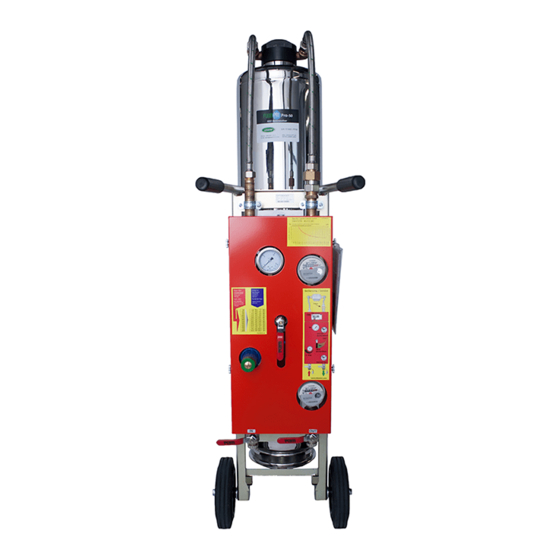

Installation, operation, and maintenance instructions
for the Puropal-Pro-25 and Puropal-Pro-50 H
O
2
demineralizers
Function
The Puropal-Pro filters lime and aggressive dissolved substances such as sulfates, nitrates and
chlorides out of the local domestic water. The device operates on the basis of a mixed bed ion
exchange resin and provides completely demineralized water that meets fill water specifications of
glycol and boiler manufacturers. It is also possible to demineralize an existing "water only" system
by circulating the system water through the Puropal-Pro demineralizing cart. This method does not
release any chemical additives into the water. The device operates without an external power supply.
Not for drinking water.
The filling apparatus is equipped with precise meters for monitoring pure water production in terms
of quality and quantity.
If the mixed bed ion exchange resin capacity is exhausted, then it can be easily replaced and disposed
of with the household waste.
Protective measures
Only trained personnel should use the filling apparatus.
Operating specifications must be adhered to according to this manual.
Local guidelines are to be followed for the connection between the local domestic water supply and
the closed loop hydronic system.
The system is not suitable for unmonitored, permanent connection under pressure. The valves in the
input and output are to be kept closed and only to be opened for the duration of the system filling.
Even demineralized water contains dissolved gasses, including oxygen and carbon dioxide that can
cause the beginning of the corrosion process. The gases are purged by heating the water, therefore we
recommend carrying out a heating test run for the system as soon as possible after fill-up.
2615 Wentz Avenue, Saskatoon, SK S7K 5J1 Ph: (306) 651-1815 Fax: (306) 651-2293
email: sales@axiomind.com website: www.axiomind.com
Advertisement
Table of Contents
Related Manuals for Axiom Puropal-Pro-25
Summary of Contents for Axiom Puropal-Pro-25
- Page 1 Installation, operation, and maintenance instructions for the Puropal-Pro-25 and Puropal-Pro-50 H demineralizers Function The Puropal-Pro filters lime and aggressive dissolved substances such as sulfates, nitrates and chlorides out of the local domestic water. The device operates on the basis of a mixed bed ion exchange resin and provides completely demineralized water that meets fill water specifications of glycol and boiler manufacturers.
- Page 2 Connection The input for the untreated water is on the left, the output for the demineralized water for the closed loop hydronic system is on the right. See Fig. 1 below. The equipment contains a non-return valve. When the connections are closed, the untreated water cannot flow through the apparatus.
- Page 3 Operation TDS measuring device The battery powered meter shows the TDS (total dissolved solids) in ppm in the water. See Fig. 2. Operation: Switch on using the red button on the top left, then select the measuring point, (inlet or outlet). As soon as the value on the output is >...
- Page 4 Pro-25 provides 725 gal (2750 L) of completely demineralized water, and Puropal-Pro-50 provides 1780 gal (6750 L). Capacity of the Puropal-Pro-25/50 Figure 3: Volume of water that the Puropal-Pro-25/50 can completely demineralize based on TDS (total dissolved solids) measured in ppm, or gpg (grains per gallon).
- Page 5 Replacing ion exchange resin If the content of dissolved solids in the treated water exceeds 30 ppm TDS (approx. 2 grains per gallon) according to the meter, then the resin must be changed. We first recommend that you briefly interrupt the water supply, shake the cartridge and then slowly turn the water supply back on and fill- up.
- Page 6 2. Hold head 2) by hand and unscrew carefully. 3. Remove head together with the spray hose 3). 4. Fill with Puropal resin 5) using funnel 4). Puropal-Pro-25 = one 6.6 gal. (25 L) sack, Puropal- Pro-50 = two 6.6 gal. (25 L) sacks.
- Page 7 Trouble shooting the TDS meter Malfunction Solution The display goes off after approx. This is not a malfunction; it automatically switches off to conserve the 20 seconds. batteries. Press the "POWER" button again. The inlet value (IN) shows -000- The sensor in the inlet has no measuring values or is defective. Use the flush valve to check whether the whole unit is full of water.
- Page 8 Reduced flow rate Malfunction Solution The flow drops below The pressure difference between the water supply line and the counter- 15 L/min (4 gpm) pressure from the system is too low. Open the pressure reduction valve again. The flow is weak despite the The fine sieve in the outlet (right side) of the cartridge is blocked.
