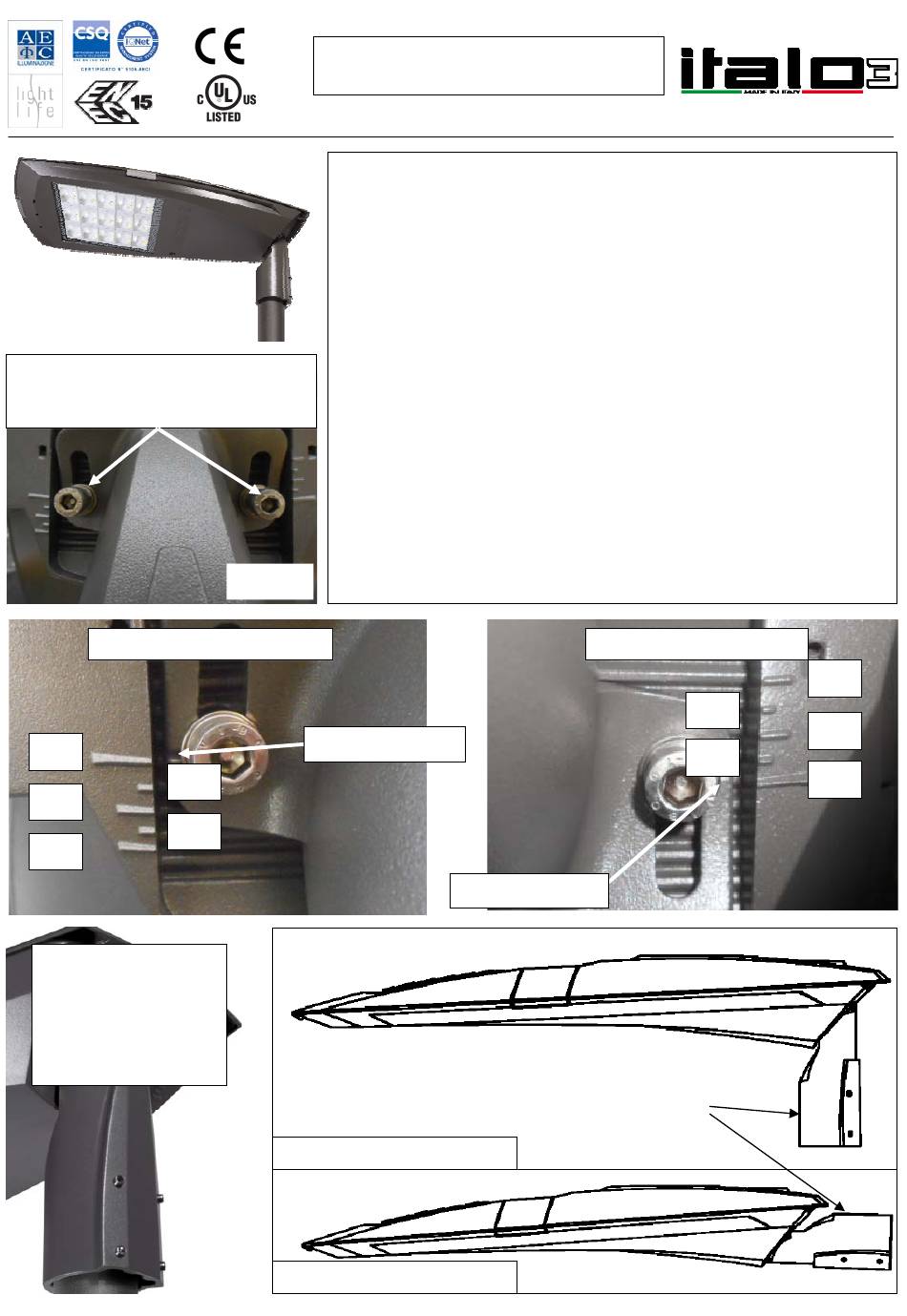

AEC ILLUMINAZIONE ITALO 3 Mounting And Maintenance Instruction

ITALO 3_IM_ENG - Rev.04 of 27/10/14
Pic. 1
M12 screws + split washer and plain washer
Set screw wrench: 10mm
Twisting moment: 15Nm
Pic. 3A – Post-top mounting
0°
10°
15°
20°
M10 (3/8") Set screws
Set screw wrench: 5mm
Twisting moment: 15Nm
--------------------------------
M10 nuts
Adjustable wrench: 17mm
Twisting moment: 15Nm
MOUNTING AND MAINTENANCE

Post-top or bracket mounting

ITALO 3 is equipped with an universal attachment (post-top or bracket mounting).
Place correctly the attachment as indicated in Pic. 5A (Post-top) or in Pic. 5B
(Bracket).
Fix the attachment to the luminaire with the two M12 screws as indicated in Pic. 2.
Possible to tilt:
Use the proper sign as indicated in Pic. 3A and 3B.
The regulation of the luminaire can to be done loosing the two screws (Pic. 2).
Fix the attachment to the post-top or to the bracket as indicated in Pic. 4.
To avoid any possible unscrewing of set screws, four M10 (3/8") nuts have
to be tightened on the set screws as indicate in Pic. 4.
Pic. 2
Sign reference
5°
Pic. 5A – Post-top mounting
Pic. 4
Fig. 5B – Bracket mounting
INSTRUCTION
MOUNTING AND MAINTENANCE INSTRUCTION
Attachment Ø60-76mm / Ø2-3/8" - 3"
-
- Post-top mounting:
- Bracket mounting:
Sign reference
0°, +5°, +10°, +15°, +20°
0°, -5°, -10°, -15°, -20°
Pic. 3B – Bracket mounting
-15°
-5°
ATTACHMENT
Page 1 of 4
-20°
-10°
0°
