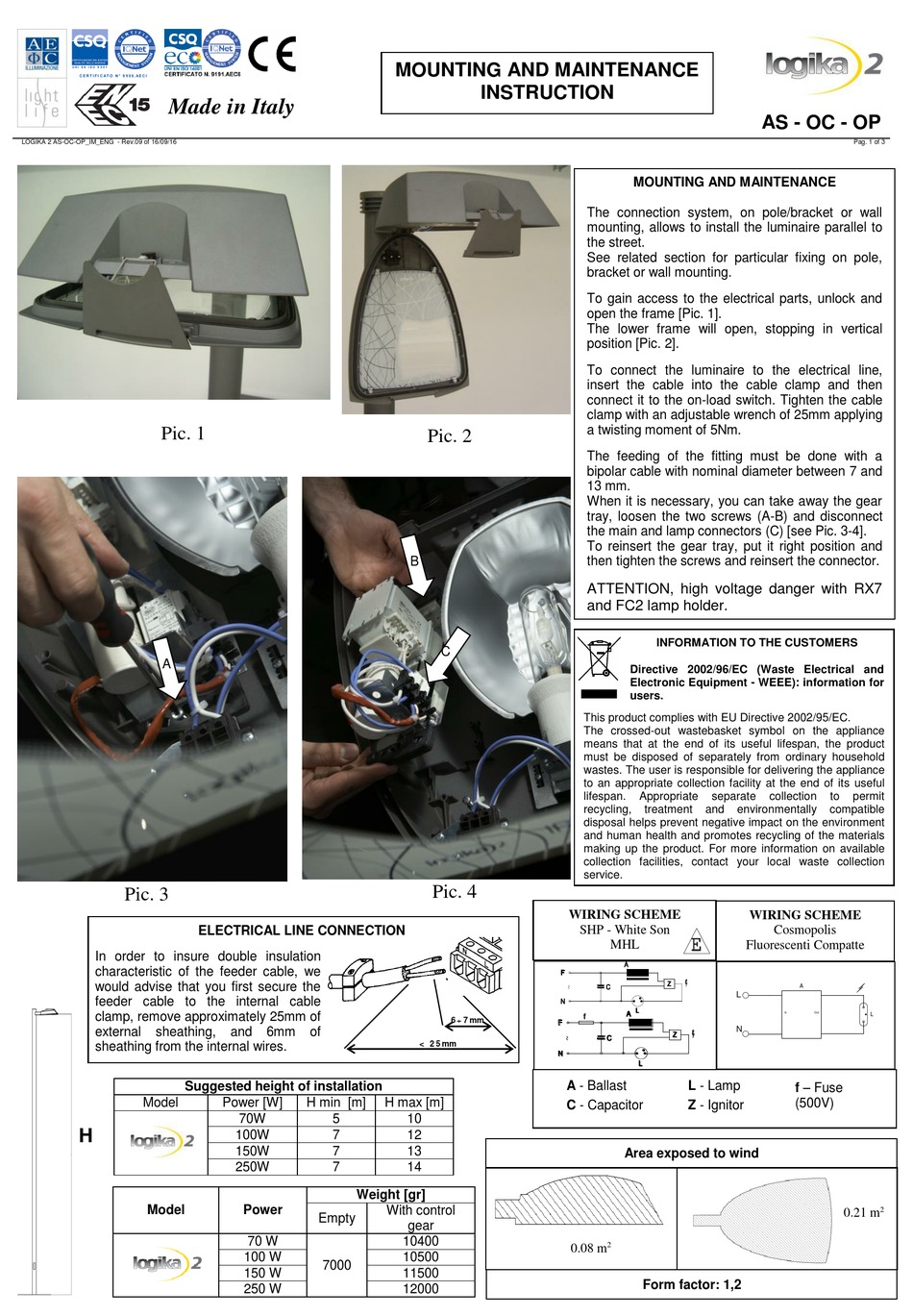

AEC ILLUMINAZIONE LOGIKA 2 Mounting And Maintenance Instruction

Made in Italy
LOGIKA 2 AS-OC-OP_IM_ENG - Rev.09 of 16/09/16
Pic. 1
A
Pic. 3
In order to insure double insulation
characteristic of the feeder cable, we
would advise that you first secure the
feeder cable to the internal cable
clamp, remove approximately 25mm of
external sheathing,
sheathing from the internal wires.
Suggested height of installation
Model
H
Model

ELECTRICAL LINE CONNECTION

and 6mm of
Power [W] H min [m]
70W 5
100W 7
150W 7
250W 7
Weight [gr]
Power
Empty
70 W
100 W
7000
150 W
250 W

MOUNTING AND MAINTENANCE

INSTRUCTION
Pic. 2
B
C
Pic. 4
6  7 mm
< 2 5 mm
H max [m]
10
12
13
14
With control
gear
10400
10500
11500
12000
MOUNTING AND MAINTENANCE
The connection system, on pole/bracket or wall
mounting, allows to install the luminaire parallel to
the street.
See related section for particular fixing on pole,
bracket or wall mounting.
To gain access to the electrical parts, unlock and
open the frame [Pic. 1].
The lower frame will open, stopping in vertical
position [Pic. 2].
To connect the luminaire to the electrical line,
insert the cable into the cable clamp and then
connect it to the on-load switch. Tighten the cable
clamp with an adjustable wrench of 25mm applying
a twisting moment of 5Nm.
The feeding of the fitting must be done with a
bipolar cable with nominal diameter between 7 and
13 mm.
When it is necessary, you can take away the gear
tray, loosen the two screws (A-B) and disconnect
the main and lamp connectors (C) [see Pic. 3-4].
To reinsert the gear tray, put it right position and
then tighten the screws and reinsert the connector.
Attention, high voltage danger with RX7
and FC2 lamp holder.
INFORMATION TO THE CUSTOMERS
Directive 2002/96/EC (Waste Electrical and
Electronic Equipment - WEEE): information for
users.
This product complies with EU Directive 2002/95/EC.
The crossed-out wastebasket symbol on the appliance
means that at the end of its useful lifespan, the product
must be disposed of separately from ordinary household
wastes. The user is responsible for delivering the appliance
to an appropriate collection facility at the end of its useful
lifespan. Appropriate separate
recycling, treatment and environmentally
disposal helps prevent negative impact on the environment
and human health and promotes recycling of the materials
making up the product. For more information on available
collection facilities, contact your local waste collection
service.

WIRING SCHEME

SHP - White Son
MHL
L
N
A - Ballast L - Lamp
C - Capacitor Z - Ignitor
Area exposed to wind
2
0.08 m
Form factor: 1,2
AS - OC - OP
Pag. 1 of 3
collection to permit
compatible
WIRING SCHEME
Cosmopolis
Fluorescenti Compatte
A
In Out
L
f – Fuse
(500V)
2
0.21 m
