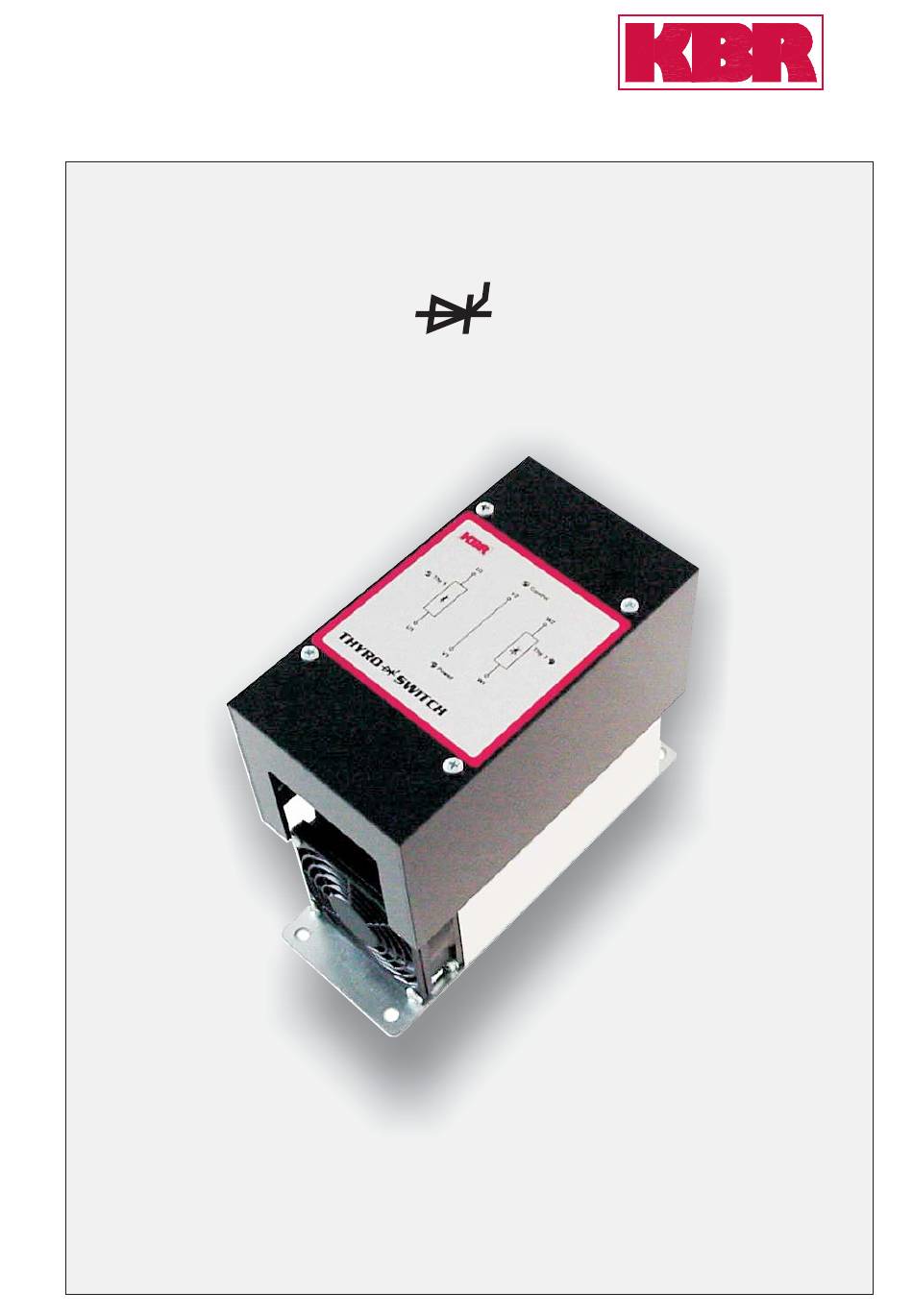

- Page 1 Operating Instructions Technical Parameters ENERGIEMANAGEMENT mit System THYRO SWITCH KBR GmbH Am Kiefernschlag 7 D-91126 Schwabach Phone:+ 49 (0) 9122 6373-0 Fax: +49 (0) 9122 6373-83 email: info@KBR.de...
-
Page 2: Table Of Contents
THYRO SWITCH User Manual Contents Intentended Use ................1 Safety Notes ................2 Areas of Application ..............3 Installation ..................4 Connection ..................5 Commissioning ................6 Type Overview ................7 Declaration of Conformity ............7 Notes ...................8 Page - I - Version 1.0... -
Page 3: Intentended Use
THYRO SWITCH User Manual 1 Intended Use The THYRO SWITCH is a power electronics component for connecting capacitive loads to the power network. The device is intended exclusively for installation in switchgear and controlgear. Both non-reactor- and reactor-protected (up to 14%) compensation stages can be switched. First and foremost, symmetrical three-phase current compensation is intended as the application, but it is also possible to switch two separate alternating current compensation stages simultaneously. -
Page 4: Safety Notes
THYRO SWITCH User Manual Safety Notes Due to the design with forced cooling, that is with the use of a fan, unimpeded air intake must in particular be guaranteed. The cooling openings must not be covered up. The distances specified from neighboring components must be observed. -
Page 5: Areas Of Application
THYRO SWITCH User Manual Areas of Application The THYRO SWITCH is intended in particular for facilities with frequent and rapidly changing reactive power loads. The advantages of the THYRO SWITCH compared to conventional technology are: • High switching speed • Switching behavior with low system pollution •... -
Page 6: Installation
THYRO SWITCH User Manual Installation The THYRO SWITCH can be installed horizontally or vertically. Due to the forced cooling, nearly all the warm air produced is emitted in one direction. At maximum load, a temperature increase of max. 40°C can be expected. If temperature-sensitive components are used, such as cable ducts, it is possible that cowls must be provided. -
Page 7: Connection
THYRO SWITCH User Manual Connection 10 - 30V DC DC gating: 230V / 115V 180 - 260V AC AC gating: 230V / 115V Version 1.0 Page - 5 -... -
Page 8: Commissioning
THYRO SWITCH User Manual For the connection of the load current with insulated crimping cable lugs with 8mm rings, terminal studs are envisaged that must be tightened with a torque of 5.5 - 6Nm. The cable lugs must be exactly vertical to the conducting plate. -
Page 9: Type Overview
THYRO SWITCH User Manual Type Overview Type Voltage Frequency Current TSK40509 400V 50Hz TSK40609 400V 60Hz TSK40511 400V 50Hz 115A TSK40611 400V 60Hz 115A TSK50507 500V 50Hz TSK50607 500V 60Hz Special voltages and currents on request Declaration of Conformity ENGLISH CE DECLARATION OF CONFORMITY We declare that we have sole responsibility that this product (see table) meets the regulations of Directives 73/23/ EEC and 89/336/EEC* and complies with the following standards or reference documents:... -
Page 10: Notes
THYRO SWITCH User Manual Notes Page - 8 - Version 1.0... - Page 11 KBR GmbH KBR GmbH Abteilung Entwicklung Development Am Kiefernschlag 7 Am Kiefernschlag 7 D-91126 Schwabach D-91126 Schwabach / Germany Vorschläge: Suggestions: Korrekturen: Corrections: Betrifft Gerät: Device concerned: Sollten Sie beim Lesen dieser Bedienungsanlei- If you come across misprints in this user manual tung oder Druckschrift auf Druckfehler gestoßen...
