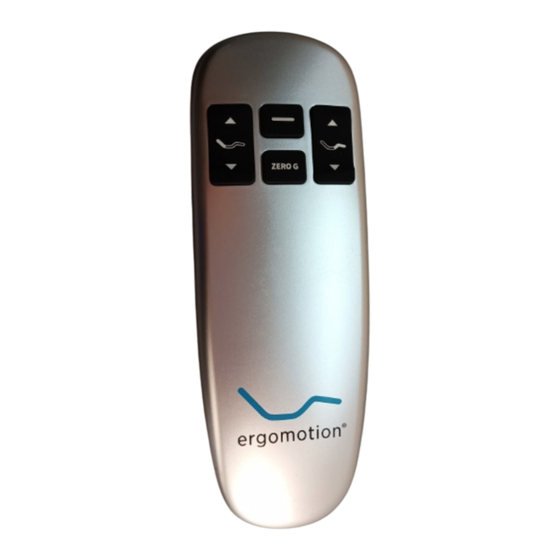

- Page 1 Issue department：Bedding Division Date： 2019-3-29 Author： Allen Product Function instruction No：RF373D Version： RF373D Page 1 of 3 RF373D Function instruction 1. Electrical configuration diagram： FLAT Foot Lift + Head Lift + Foot Lift – Head Lift – Zero-G Pairing Massage time RF373B RF373A RF373C 1 ...
- Page 2 Issue department：Bedding Division Date： 2019-3-29 Author： Allen Product Function instruction No：RF373D Version： RF373D Page 2 of 3 2. Process of test 2.1 Head Lift + Press and maintain, head lift stretches out 2.2 Head Lift Press and maintain, head lift retracts 2.3 Foot Lift + Press and maintain, foot lift stretches out 2.4 Foot Lift Press and maintain, foot lift retracts 2.5 FLAT Press and release the FLAT button on remote，the head and foot actuators moves to lower position(when the actuator is free, can turn off the vibration motor and turn off the indicator light when press once )，stop when press any buton； 2.6 ZeroG Release after press, 2 lifts move to Zero‐G position ...
- Page 3 Issue department：Bedding Division Date： 2019-3-29 Author： Allen Product Function instruction No：RF373D Version： RF373D Page 3 of 3 2.8 Massage time Massage time key will turn on the massage and choose timing for 10min‐20min‐30min‐off Press the 2.9 Pairing Head Lift + and Foot Lift + Press key for more than 1 second, the remote will enter pairing mode and a B_ LED will flash. Release this key to stop pairing .After the pairing is successful, B_LED will stop flashing. FCC Warning ： Any Changes or modifications not expressly approved by the party responsible for compliance could void the ...
- Page 4 Massage motor control box FCC ID: 2AK23MC122 IC: 22406-MC122 Foot Motor Head Motor Power cord AC Power Supply FCC ID: 2AK23RF373AD IC: 22406-RF373AD...
