2/9/2018
SunFounder 250+Radiolink T8FB Remote
Controller(Assembled)
From Wiki
Contents
1 Introduction
Introduction
http://wiki.sunfounder.cc/index.php?title=SunFounder_250%2BRadiolink_T8FB_Remote_Controller(Assembled)
SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki
1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 250+ and is the answer not in the manual?

Questions and answers

Related Manuals for SunFounder 250+

Summary of Contents for SunFounder 250+

  • Page 1: Table Of Contents

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki SunFounder 250+Radiolink T8FB Remote Controller(Assembled) From Wiki Contents 1 Introduction 2 Features 3 Components Test Before Assembly 3.1 1. Battery, Balance Charger and Power Adapter Test 3.2 2. Battery Indicator Alarm (with Buzzer) Test 3.3 3.

  • Page 2: Features

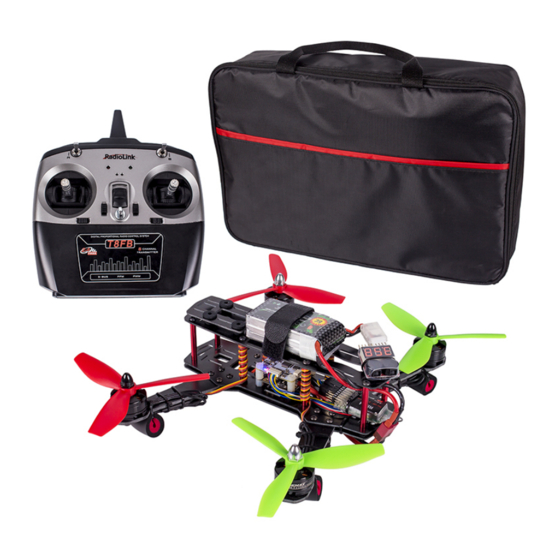

    SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki The SunFounder 250 Quadcopter is tailored for the hobbyists for FPV flying.The racing drone is designed for pursuing the fast speed, which is totally different from those UVA drones who can provide extremely stable flying.you can fly it immediately when you get it.

  • Page 3: Components Test Before Assembly

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki ESC. 4. Weight: 519g ; Duration of flight: 7 minutes；Working voltage: 11.1V 5. CC3D software debugging guide and Radiolink T8FB Remote Controller are provided for you. Prior to flying the plane, you need to know more about the plane and flight. Please read the following instructions carefully and make sure you understand well before actual flight.
  • Page 4 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki 2. Connect the low-power 3S 11.1V 1300m AH T-Plug Li-Po Battery or High Discharge Lithium Polymer Battery(3-cell Li- Polymeter Battery) to the balance charger (DO NOT connect two or three batteries to charger at the same time); Then the charging indicator lights up in red (Figure 1-3), indicating it’s charging.
  • Page 5 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki 2. If the charging indicator does not light up after you connect the battery to charger, please check the connection, and whether the battery’s voltage is too low (<1.5V/CELL); If a cell is lower than 3V, the charger will provide low current recovery charging for 3 minutes;...
  • Page 6 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 1-6 3) TURN OFF the stabilzator, then connect the anode and cathode of the device to those of the battery (Figure 1-7) - use two wires with different length to distinguish from each other so as to avoid short circuit by careless operation;...

  • Page 7: Battery Indicator Alarm (With Buzzer) Test

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 1-8 2. Battery Indicator Alarm (with Buzzer) Test http://wiki.sunfounder.cc/index.php?title=SunFounder_250%2BRadiolink_T8FB_Remote_Controller(Assembled) 7/22...

  • Page 8: Power On Radio Transmitter

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Test Operations: 1. Check the back of the Battery Indicator alarm, find the cathode pin marked with “-” (① of Figure 2-1). 2. Connect the cathode of the Alarm to the first cathode hole of the battery charging cord and the rest pins to the corresponding headers as shown in Figure 2-2.
  • Page 9 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Power on Radio Transmitter: Connect the High Discharge Lithium Polymer Battery to the transmitter as shown in Figure3- 1, then insert it in and put the battery cover back (as shown in Figure 3-2).

  • Page 10: Assembled Kit Test

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure3-1 & Figure3-2 4. Assembled Kit Test For this assembled kit, you may still need to mount the propellers, battery and battery indicator alarm before flying For security reasons, DO NOT mount the propellers in this step to prevent accidents in later test.
  • Page 11 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 4-1 & Figure 4-2 2. Mount the battery indicator alarm to the battery: align the pins and headers to mount the alarm as shown in Figure 4-3, and fix it on the frame with nylon ties.
  • Page 12 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 4-3 3. Turn on the transmitter (Figure 4-4). Then power on the aircraft: connect the power cord on the plane with that of the battery (Figure 4-5). http://wiki.sunfounder.cc/index.php?title=SunFounder_250%2BRadiolink_T8FB_Remote_Controller(Assembled) 12/22...
  • Page 13 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki http://wiki.sunfounder.cc/index.php?title=SunFounder_250%2BRadiolink_T8FB_Remote_Controller(Assembled) 13/22...
  • Page 14 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 4-4 & Figure 4-5 4. Pull the Throttle stick to the bottom and then rightmost (as shown in Figure 4-6), and you can see the blue light on the flight controller blinks. Keep this status for 3 seconds; when the blinking slows down, release the Throttle. Now the aircraft is unlocked successfully.

  • Page 15: Trial Flight

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 4-8 5. Trial Flight If all previous tests work fine, just mount the propellers to start the trial flight. 1. There are two types propellers: CW propeller (Figure 5-1) and CCW propeller (as shown in Figure 5-2). Remember to distinguish the propeller types and mount them as shown in Figure 5-3, with the CW props at No.

  • Page 16: Calibration After Flight

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Figure 5-3 2. During the trial flight, you may encounter some problems. For example, the aircraft may tilt to a certain direction in the flight. If so, you need to connect the flight controller to computer for debugging. For more details, please check the instruction manual –...
  • Page 17 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Adjust them until the median is about 1500, click Save. http://wiki.sunfounder.cc/index.php?title=SunFounder_250%2BRadiolink_T8FB_Remote_Controller(Assembled) 17/22...
  • Page 18 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki 2) Make sure the flight mode channel is pulled to Stabilized1 (self-stabilization) Click Flight Mode Switch Settings. Stabilized1: self-stabilization mode - then Roll, Pitch and Yaw are all under the self-stabilization mode.
  • Page 19 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Pull the assistant channel at the right upper corner of the radio transmitter to check the gear corresponding to the flight mode (self-stabilization, semi-self-stabilization, and manual mode). For example, pull it to the highest, and it is Stabilized1.
  • Page 20 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki 3) Click FlightData to check whether the level line overlaps the yellow line. If yes, it means the calibration is done well; but if not, please move on to the following steps.
  • Page 21 2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Click Flight Data again and you should see the lines overlapped. So you've finished the debugging. Now assemble back the propellers to the plane, unlock it, and check whether the drone can fly steadily now.

  • Page 22: Related Links

    2/9/2018 SunFounder 250+Radiolink T8FB Remote Controller(Assembled) - Wiki Related links 1.Downlaod the the Ground Control Station (GCS) for the CC3D flight controller board: Windows:http://wiki.sunfounder.cc/images/3/32/OpenPilot-RELEASE-15.02.02-win32.rar Mac OS X:http://wiki.sunfounder.cc/images/6/69/Openpilot-release-13.06.04-osx.rar Note OPENPILOT WAS DISCONTINUED! Use LibrePilot instead. For the latest version of LibrePilot, you can go here to download: http://opwiki.readthedocs.io/en/latest/user_manual/gcs_install_lp.html...
