2/9/2018
SunFounder 250
From Wiki
Contents
1 Introduction
2 Feature
Introduction

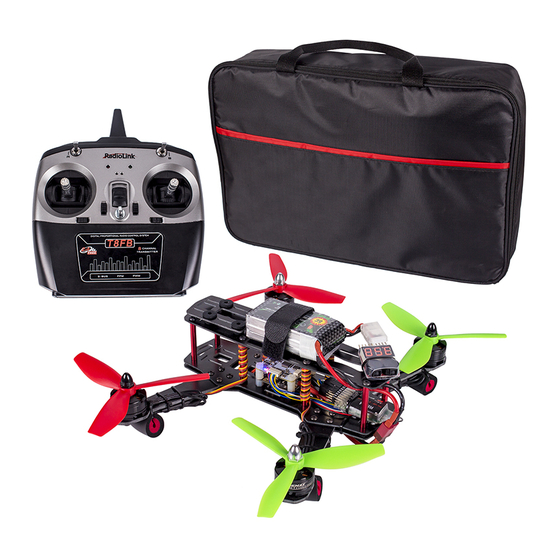

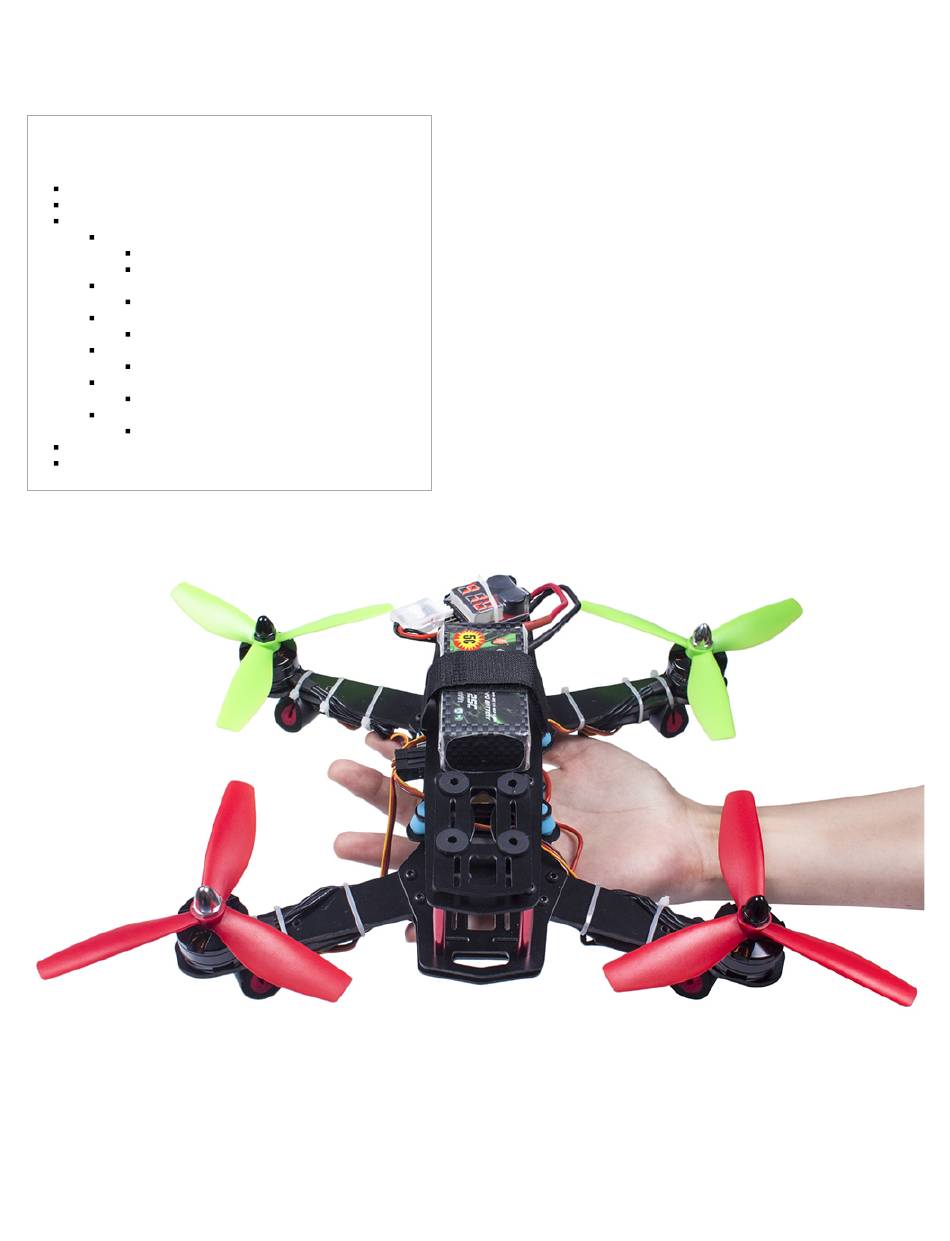

The realization of FPV flying starts from having a SunFounder 250 aircraft. The SunFounder 250 Quadcopter is tailored for the hobbyists for FPV flying. It
features stability, flexibility and activity. You can realize a stable flight in a high or low altitude or in a forest with the SunFounder 250. The skid landing
damping sponge tubes bound onto the motors help stablize the flight and protect the frame through increasing the buffer between the frame and the land
when the aircraft is landing.
It runs the OpenPilot firmware of the flight controller firmware and the 12A SUNFOUNDER brushless electronic speed controller. This kit is designed to
meet the hobbyists' higher requirement of flying the aircraft. You can realize a stable flight in a small space or a rapid 3D flight based on your own
configuration and parameter setting.
Note: If the motor and ESC in the kit you received are both carrying SUNFOUNDER logo, then you receive the SF250 V2.0. The assemly procedures are
the same with V1.0 version, please refer to the video below : https://www.sunfounder.com/video/category/?cat=40
Feature
http://wiki.sunfounder.cc/index.php?title=SunFounder_250
SunFounder 250 - Wiki
1/12
Advertisement
Table of Contents
Related Manuals for SunFounder 250
Summary of Contents for SunFounder 250
-
Page 1: Table Of Contents
The realization of FPV flying starts from having a SunFounder 250 aircraft. The SunFounder 250 Quadcopter is tailored for the hobbyists for FPV flying. It features stability, flexibility and activity. You can realize a stable flight in a high or low altitude or in a forest with the SunFounder 250. The skid landing damping sponge tubes bound onto the motors help stablize the flight and protect the frame through increasing the buffer between the frame and the land when the aircraft is landing. -
Page 2: Components Test Before Assembly
2. This aircraft is light in structure with its propeller blades featuring high strength, explosive-resistant and small wind resistance due to their smooth design. 3.It runs the firmware of CC3D flight controller, working with the SUNFOUNDER Simon 12A brushless motor and ESC. 4.Weight: 519g ; Duration of flight: 7 minutes；Working voltage: 11.1V 5. -
Page 3: Note
2/9/2018 SunFounder 250 - Wiki Figure 1-3 3. When the charging indicator turns from red to green (Figure 1-4), it means the battery is fully charged. Figure 1-4 Note: 1. When you connect the balance charger to power, if the power indicator does not light up, it shows the charger is not well connected to power. - Page 4 2/9/2018 SunFounder 250 - Wiki Figure 1-5 2). Connect the anode and cathode of the stabilizator directely, and adjust the current to 1A (Figure 1-6); Figure 1-6 TURN OFF the stabilizator, then connect the anode and cathode of the device to those of the battery (Figure 1-7) - use two wires with different lengths to distinguish from each other so as to avoid short circuit by careless operation;...
-
Page 5: Battery Indicator Alarm (With Buzzer) Test
2/9/2018 SunFounder 250 - Wiki Figure 1-7 4). Turn on the device to start the recovery. When the output current changes to 0 or almost 0, the recovery is done as shown in Figure 1-8. Figure 1-8 2. Battery Indicator Alarm (with Buzzer) Test http://wiki.sunfounder.cc/index.php?title=SunFounder_250... -
Page 6: Test Operations
2/9/2018 SunFounder 250 - Wiki Test Operations: 1.Check the back of the battery Indicator alarm, find the cathode pin marked with “-” (① of Figure 2-1). 2. Connect the cathode of the Alarm to the first cathode hole of the battery charging cord and the rest pins to the corresponding headers as shown in Figure 2-2. -
Page 7: Motors Test
2/9/2018 SunFounder 250 - Wiki Figure 2-2 3. Motors Test Test Operations (power-off): 1. Test by multimeter: set the multimeter to the 200Ω setting to measure the direct-current resistance of the motors’ three-phrase winding - check two wires from three each time as shown below. The measured results of three times should be very close to each other. If the gap among the results is more than 10%, an inter-turn short circuit may have happened between the wires with the smallest result. -
Page 8: Escs Test
2/9/2018 SunFounder 250 - Wiki 2. Check the bearings and fans: when the rotator spins normally, there should have no noise, indicating the bearing and air gap is in good condition. If the bearing holds dead, the motor may burn out. -
Page 9: Section Board And Power Cord Test
2/9/2018 SunFounder 250 - Wiki 1. Ensure the receiver is in PWM mode. About shifting the receiver’s mode, please follow the instructions. 2. Connect the signal wire of the ESC to the pin 3 of the receiver, i.e., the yellow wire to pin S, red one to +, and black one to -. -
Page 10: Flight Controller Board Test
2/9/2018 SunFounder 250 - Wiki Figure 5-3 & Figure 5-4 Then check the shortcircuit between the “+” and “-” points (Figure 5-5), and the red wire and black one of the adapter cable (Figure 5-6). If a beep sounds and the red indicator lights up as shown in ② of Figure 5-1, it means the circuit is open. -
Page 11: Test Operations
3.For the remote control, you are recommended to refer to this link: https://www.sunfounder.com/rc.html https://www.sunfounder.com/drone/remote-controllers/flysky/flysky-fs-i6x-radio-system-transmitter.html 4.The SunFoundere 250 quadcopter kit uses the 5045 propellers blades. you can also choose other 50x propellers blades : https://www.sunfounder.com/drone/propellers/5030propeller.html https://www.sunfounder.com/drone/propellers/5045propeller.html https://www.sunfounder.com/drone/propellers/3-blade.html 5.For the camera kit, you are recommended to refer to this link: https://www.sunfounder.com/drone/flight-camera/minicamera.html... -
Page 12: Faq
2/9/2018 SunFounder 250 - Wiki http://wiki.sunfounder.cc/index.php?title=SF250_FAQ Retrieved from "http://wiki.sunfounder.cc/index.php?title=SunFounder_250&oldid=4065" This page was last modified on 27 May 2017, at 02:32. http://wiki.sunfounder.cc/index.php?title=SunFounder_250 12/12...
