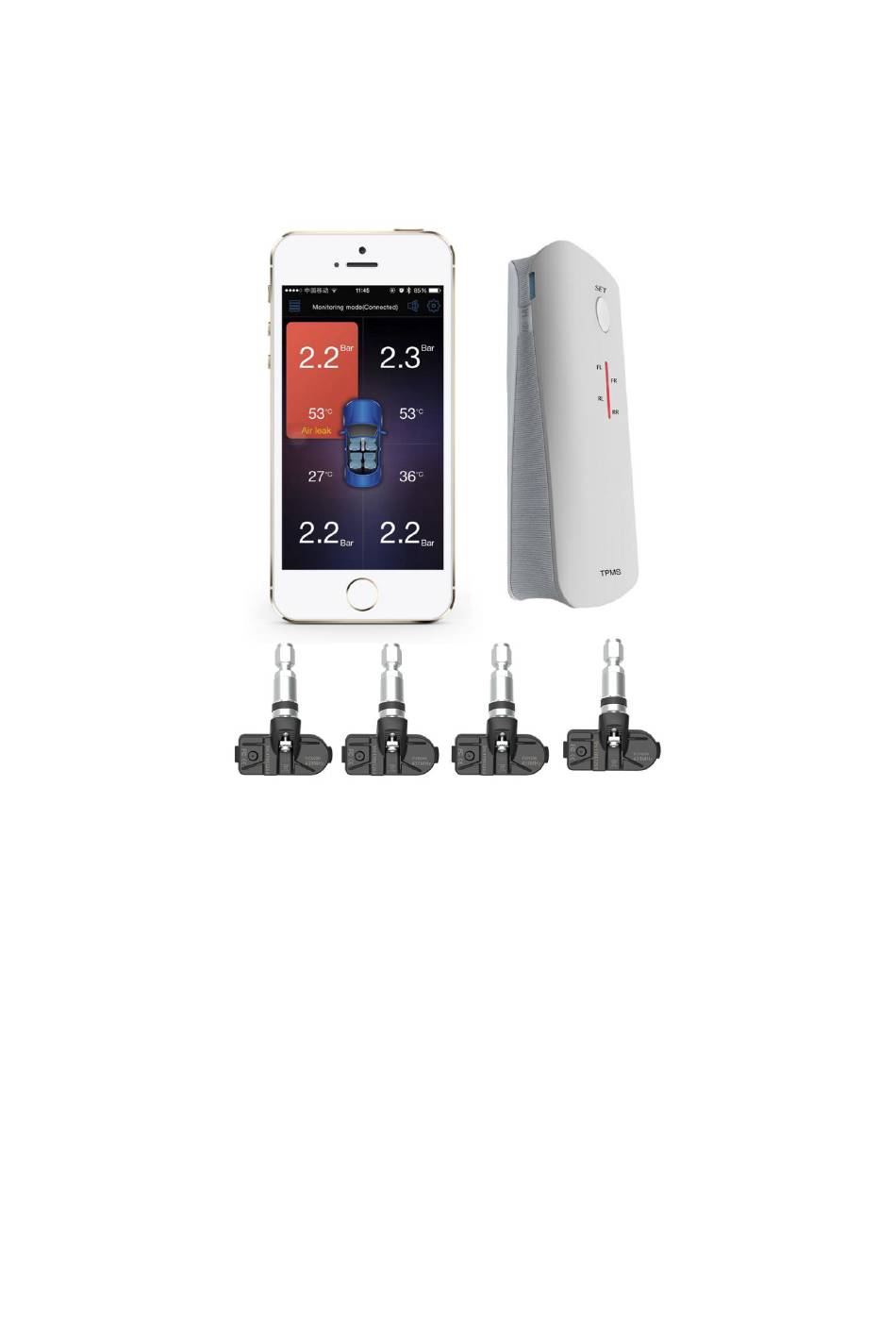

Tire Pressure Monitoring System
User's Manual
Note
Do not watch the device when driving
This product is for passenger cars only
Ensure to read through the user manual completely and fully
understand the contents before use.
It is recommended that a tyre professional install this product.
This product is an effective to tool to continuously monitor the tyre
ination point; this unit may not be effective during sudden deation
Advertisement
Table of Contents
Related Manuals for PDW TPMS
Summary of Contents for PDW TPMS
- Page 1 Tire Pressure Monitoring System User’s Manual Note Do not watch the device when driving This product is for passenger cars only Ensure to read through the user manual completely and fully understand the contents before use. It is recommended that a tyre professional install this product. This product is an effective to tool to continuously monitor the tyre ination point;...
- Page 2 3、The receiver communication as the Bluetooth as the main agreement，the name of Bluetooth receive is “TPMS”. 4、TPMS base function，as the data show，low pressure, high pressure, high temperature alarm.ID setting, and some valve setting, need the phone done. 5、The green led will be light when the Bluetooth is connected.
- Page 3 6. When the mobile terminal in learning to wait for mode, please will install the corresponding tire sensor, inflated and deflated, at this point, the learning success. Sensor install TPMS Modules Technical Parameters...
- Page 4 Working frequency: 433.92MHz only transmit and 125kHz only Receive Pressure measurement range:0-116Psi Temperature measurement range:-40℃/105℃ Working temperature:-40℃/105℃ 433.92MHz:-10.3dBm(ERP) TPMS Bluetooth Adaptor Operating frequency: 433.92MHz ± 38KHz Bluetooth sent distance：8M Bluetooth version: 4.0 Operating voltage: 4 ± 0.5V Working current: ≤ 30mA Quiescent current: ≤...
- Page 5 10. Guarantee One year of the guarantee period is provided with the conditions as following: a. In addition to the claims under the law and/or contract of sale which arise from material defects, the rights arising from this guarantee are granted by the seller to thecustomer. b.
- Page 6 c. The guarantee period shall commence at the time of delivery of the product from the seller to the purchaser. d. The place of purchase and the date of delivery shall be proven submitting proof of purchase, for example, the sales receipt, invoice, delivery note or similar document.
- Page 7 service center in yourcountry. FCC Requirement changes or modi- cations not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including...
- Page 8 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter. Manufacturer information: Zhejiang PDW Industrial Co., Ltd. Quanxi Industrial Park, Wuyi County, Jinhua City, Zhejiang, P.R. China 321200 Importer information: City Pro car d.o.o.
