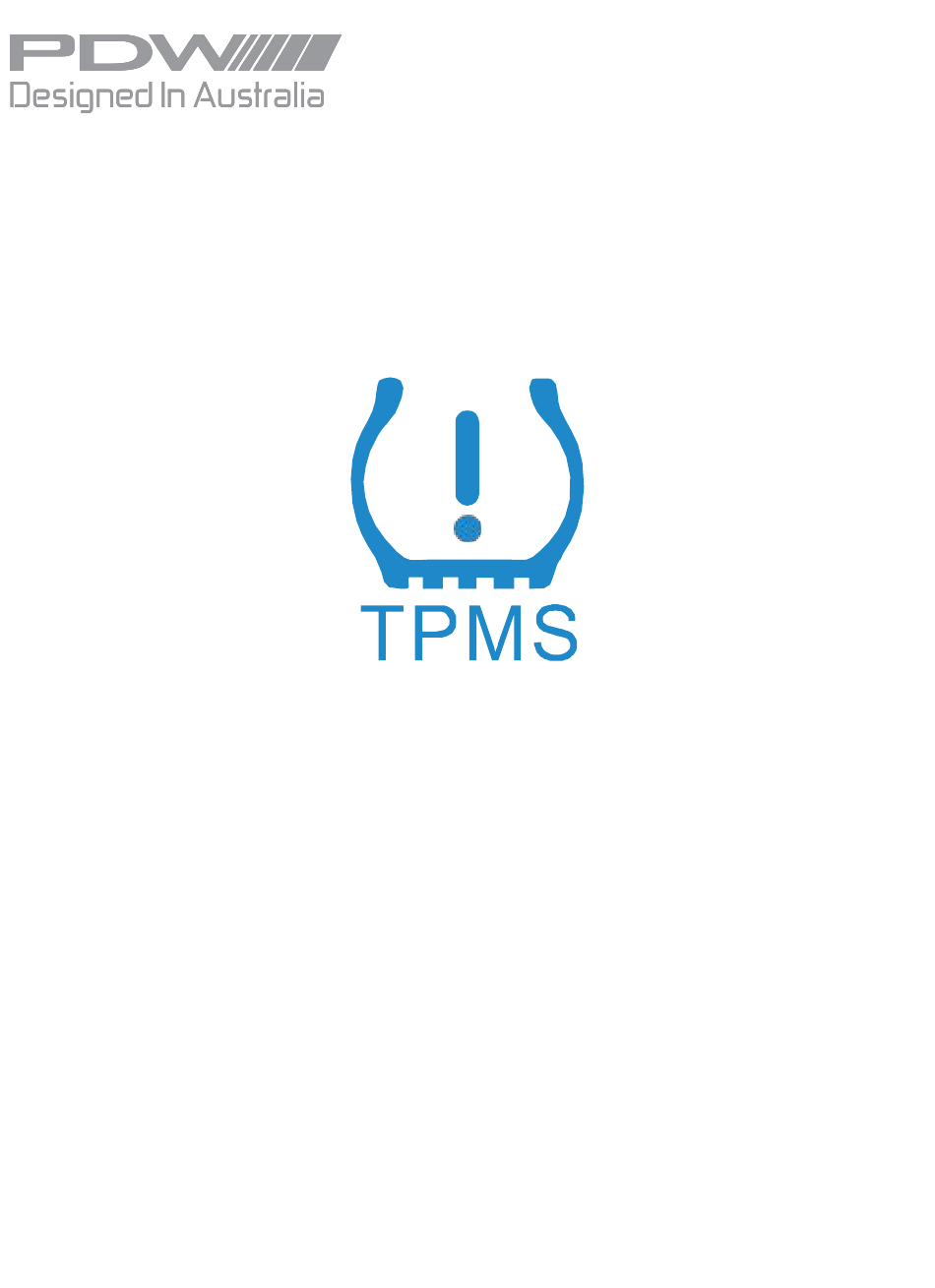

- Page 1 TIRE PRESSURE MONITORING SYSTEM All copyright reserved by PDW International © 2019...
- Page 2 *Ensure that the in car display does not distract while driving. * This manual covers internal and external sensors. TPMS Brief Introduction This product includes four sensors and one in-car display. The sensor will detect the tyre pressure and temperature. Continuously transmitting the tyre pressure and temperature data, in wireless mode to the in-car display.
-
Page 3: Table Of Contents
Content Display Installation---------------------------------------------------------------1 Sensor Installation---------------------------------------------------------------1 External Sensor Installation ----------------------------------------------- 1 Internal Sensor Installation-------------------------------------------------2 Pressure, Temperature, Battery Display----------------------------------- 3 Alarm -------------------------------------------------------------------------------- 3 Setting The Unit------------------------------------------------------------------ 4 Pairing-------------------------------------------------------------------------------5 Automatic Lightning Pairing For Internal Sensors (Quick Pairing)-----------------------------------------------------------------5 Manual Pairing For Internal Sensors (Standard Pairing)-----------5 External Sensor Pairing ------------------------------------------------- 7 Threshold Adjustment---------------------------------------------------------- 7 Technology Parameters------------------------------------------------------- 9... -
Page 4: Display Installation
1.Display Installation 1. The unit may be affixed to the dashboard of the car, using the 3M adhesive tape supplied. Ensure that the display does not impair driving vision. 2. First time system boot, hold down the “OK” and “ ” button simultaneously for 3 seconds, until the LCD display comes to life. -
Page 5: Internal Sensor Installation
External Sensor Battery Replacement Step 1. Remove the outside cover. 2. Remove the old battery. 3. Install the new battery using battery type CR1632. 4. Replace the outside cover Internal Sensor Install (This step should only be done by a tyre professional) a. -
Page 6: Pressure, Temperature, Battery Display
2. After installation, ensure to check for leakage from the valve area. 3. Once installed as above, you are now ready to enjoy the added safety of your TPMS unit. 4. This product is a plug-and-play device. Everything has been preset already. -
Page 7: Setting The Unit
Setting The Unit Setting the unit of pressure display Long press “SET” button under the main interface as shown in the below interface. Click “SET” button again into the below interface. Click “SET” button again into the below interface. Click “SET” button again into the unit of pressure interface, as below. -
Page 8: Pairing
Pairing *Only required if choosing to change sensor position or singular replacement. 6.1Automatic Lightning Pairing For Internal Sensors (Quick Pairing) The Internal Sensor has automatic lightning pairing function. Each sensor is free to be installed in any tyre. Tyre position will be automatically defined on the display within 2-5 minutes (speed >20km/h). - Page 9 c. In the pressure display interface (pictured), hold the “SET” button for 3 seconds and release when a “beep” is heard, the LCD will display the flashing left front wheel. d. Click the “OK” button to enter the learning mode (In the example below, we select left front tyre).
-
Page 10: External Sensor Pairing
The system will automatically jump to the next sensor position. The order of sensor set up is FL—FR—RR—RL g. When all tyres are set up, the display will stop at the rear left position and show its ID. Click “ ”... - Page 11 3. Click “SET” button again, to enter the threshold adjustment. (Figure 3) Figure 3 4. Click “OK” button to enter the high-pressure alarm threshold setting. Click “OK”, the value flashes. Click “SET” to change the value. Click “OK” to save the change.(Figure 4) Figure 4 5.
-
Page 12: Technology Parameters
2. Working frequency: 433.92MHz 3. Pressure measurement range:0-116Psi 4. Temperature measurement range:-40℃/105℃ 5. Working temperature:-40 ℃ /105 ℃ TPMS Solar Display Technology Parameters 1. Power supply: Solar charge 2. Working voltage: 4.5V-6.0V 3. After charging the battery operating time:＞25 days(4 hours per... -
Page 13: Product Content
4. Working frequency: 433.92MHz 5. Display type: LCD 6. Alarm: Symbol, sound, light alarm 7. Working temperature:-30 ℃ /85 ℃ Product List External Product List Except The Display Internal Product List Except The Display... -
Page 14: Guarantee
Guarantee One year of the guarantee period is provided with the conditions as following: a. In addition to the claims under the law and/or contract of sale which arise from material defects, the rights arising from this guarantee are granted by the seller to the customer. b. - Page 15 e. Any defects that occur during the guarantee period should be submitted to the authorized point of service within 2 weeks since they happened. The defect will be remedied by delivery a product identical in construction. Further claims of the customer arising from this guarantee, particularly claims for reimbursement of expenses, reduction, compensation of damages or the right of withdrawal, shall be excluded.
- Page 16 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
