Visuline
2300 Series
®
Non-Illuminated Display System
Contents
Site Considerations
General Notes
Handling
Fastening Method
Fastening Method
Installation
Reassemble
Site Considerations
Mounting surface should be flat and plumb. Compliance will
dictate whether Visuline door will function properly.
General Notes
The following general information will be helpful to you, but is
not meant to cover all possible conditions and situations that
may occur.
Because of widely varying site conditions, installation
techniques must be determined on an individual basis. It should
be understood that common sense, caution and care are
factors which cannot be built into any product. These factors
must be supplied by the actual person(s) installing and
maintaining the product.
APCO
388 Grant Street, SE, Atlanta, Georgia USA 30312-2227

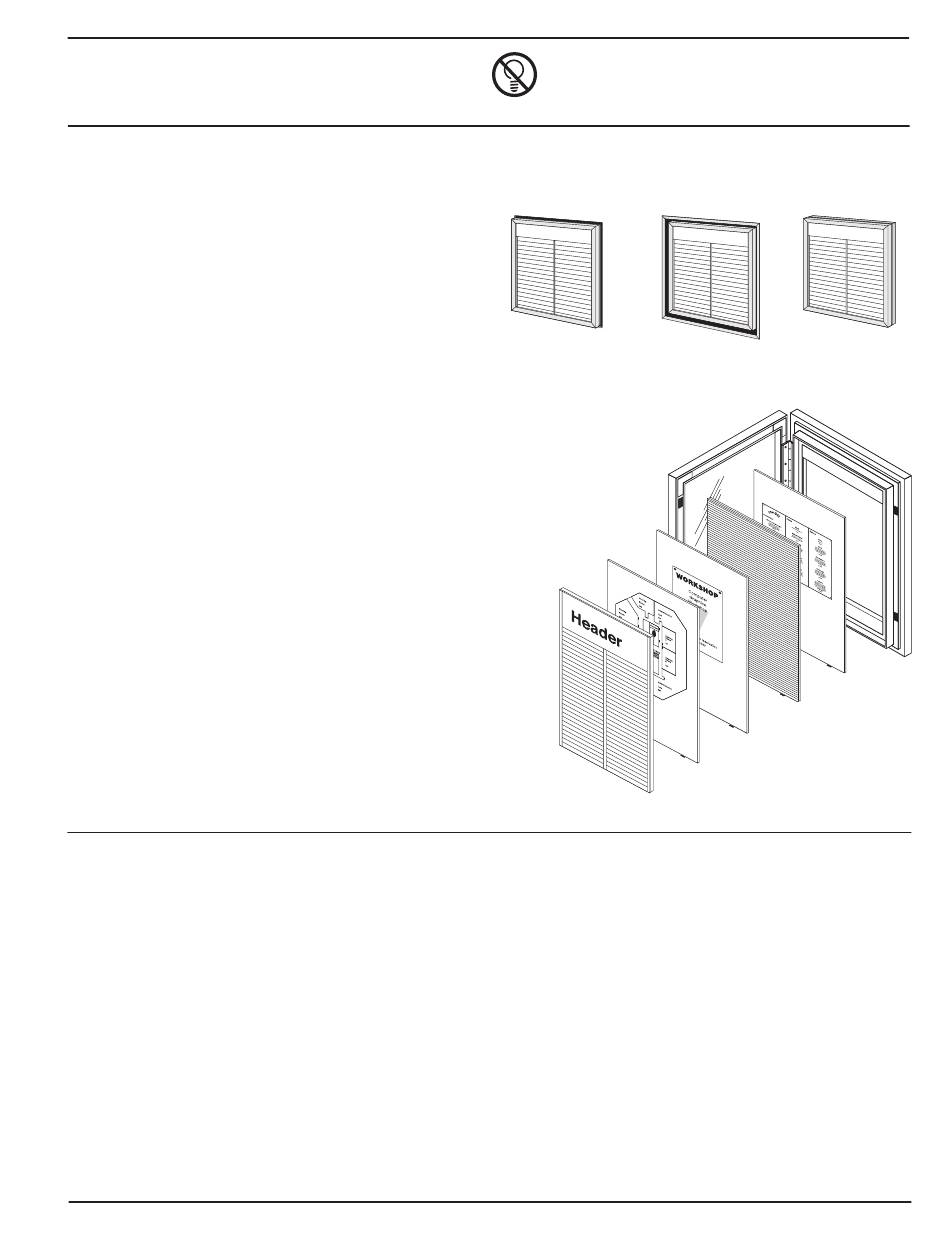

Semi-Recessed
Full Recessed
Mounted
Mounted
(2300.1 Series)
(2300.2 Series)
D ir ec to ry
D ir ec to ry
Handling
When handling large models you must avoid racking and
twisting. Assure that you have the appropriate number of
persons to accomplish this before removing the unit from its
shipping crate.
It is recommended that the protective wrapping on the door
remain until installation is complete. This will help prevent
unwanted damage while handling.
Many models have sharp corners as a result of 45 degree
miters. During handling, taping corners with masking tape
will avoid both damage to unit and the risk of a cut or injury.
Telephone (404) 688-9000
06/28/01
Surface Mount
(2300.3 Series)
D ir ec to ry
www.apcosigns.com
IS309
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Apco Visuline 2300 Series
Summary of Contents for Apco Visuline 2300 Series
-
Page 1: Table Of Contents
These factors must be supplied by the actual person(s) installing and maintaining the product. APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com... -
Page 2: Mounting Surface Requirements
Optional Reveal Only: When space is limited, the reveal Trim can be eliminated. Wall cavity must have finished edges and returns and be constructed square and plumb. APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com... -
Page 3: Preparing To Install
1/98 LB308 APCO Concealed Lock Option is a spring-loaded locking device hidden beneath the door frame. A special Concealed Lock Key Conventional Keyed Lock Operation is used to unlatch the door. (Refer to labels on door.) -
Page 4: Remove Display Components
NOTE: Retaining methods may vary from those shown. If you are not sure how to remove the display components, contact APCO at 404-688-9000. Molded Plastic Message Strips Directory A Directory display with molded plastic message strips utilizes a one-piece acrylic back-up and is secured into the cabinet with velcro or preslock fasteners. -
Page 5: Maps And Plans
Letter Board display case can generate internal temperatures upwards of 200 degrees Fahrenheit. Such temperatures will distort almost any plastic material, including the press-in characters. APCO does not warranty products that fail under these conditions. Pull-Out Tab Cork Board Header... -
Page 6: Installation
APCO recommends a minumum of two (2) fasteners per mounting angle with one (1) additional fastener per each common stud width. IMPORTANT: When handling large models you must avoid Fastener Suggestions racking and twisting. -
Page 7: Installation
DO NOT over-torque fasteners. This may distort the cabinet and cause door to function improperly. APCO recommends a minumum of four (4) fasteners per unit with two (2) additional fasteners per each common stud width. Fastener Suggestions IMPORTANT: When handling large models you must avoid... -
Page 8: Recessed Mounting (2300.1 & 2300.2 Series)
Do not utilize the reveal or reveal 1-1/2" 1-1/2" Finished trim as a structural support for mechanical fastening. (Min) Opening (Min) & Returns 1/2" Reveal (Min) Mounting holes & anchors by installer APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com IS309... -
Page 9: Continuous Angle Trim
It will be important however, that the 1” reveal 1" Reveal (Min) remains for proper door operation. Product Shop Drawings illustrate recommended installation clearances. Mounting holes & anchors by installer APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com IS309... - Page 10 Prop-Rods Audible “Click” Top Hinged Doors Gas Cylinder Door Support Secure Safety Close Door & Ribbons Listen For Audible “Click” APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com IS309...
-
Page 11: Trouble Shooting Guide
Consult factory for instructions. Service & Maintenance Instructions Need Technical Assistance Service & Maintenance Instructions are provided with each Telephone (404) 688-9000 and ask for APCO’s Installation unit and should be forwarded to the facility manager. Department or Engineering Department. APCO... -
Page 12: Wall Mount Installation
06/28/01 Visuline Wall Mount 2300 Series ® Installation Non-Illuminated Display System APCO 388 Grant Street, SE, Atlanta, Georgia USA 30312-2227 Telephone (404) 688-9000 www.apcosigns.com IS309...
