Apco FullView General Instructions

Insert Removal & Replacement
VERY IMPORTANT!
The key to optimal performance and successful installation of your FullView product is to carefully follow the instructions within this
guide which can be reviewed within several minutes.

Standard Assembly

Vertical Configuration - Insert Replacement

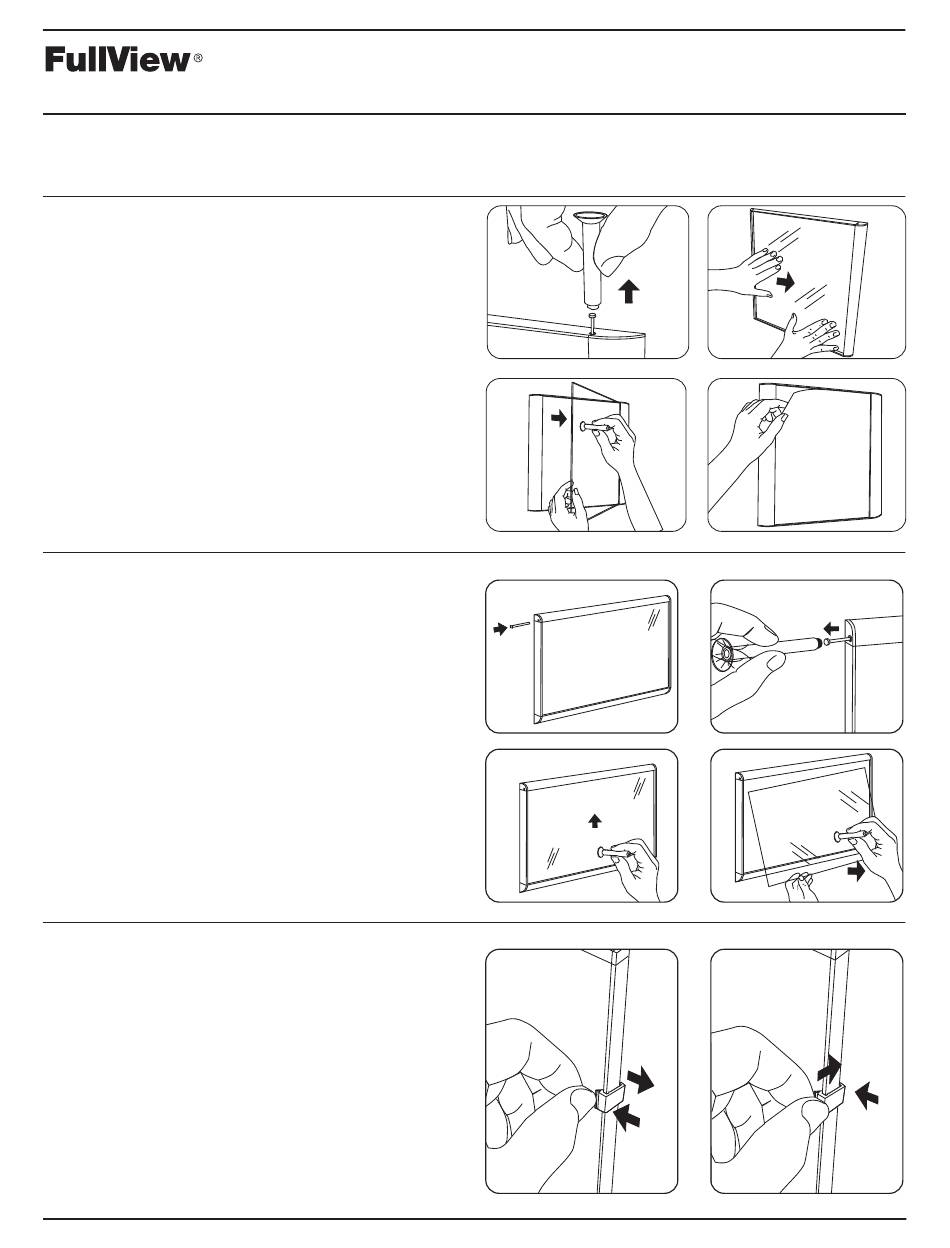

1. To remove Clear Lens, first place magnet over Locking Pin located on
top right hand corner of sign. If pin does not lift, shift clear cover to the
left and try again.
2. Shift Clear Lens to the right. For smaller signs the suction cup may
be used to do this. For larger signs, use your hands as shown.
3. Attach Suction Cup Tool to the left side of the Clear Lens and press to
engage. Pull outward while holding Clear Lens edge.
4. After new paper display is inserted into holder, reverse steps 1-3.
Note: When replacing clear cover, make sure non-glare
finish side is facing outward.
Standard Assembly

Horizontal Configuration - Insert Replacement

1. To remove Clear Lens, locate Locking Pin on top left hand side of sign.
If your frame does not feature a Locking Pin, go to steps 3-4 below.
2. Place Magnet Tool over pin at the top left corner of sign, thus removing
security pin from the slot.
3. Affix Suction Cup Tool to lower center of Clear Lens and press inward
to engage. Lift clear cover upward into the space previously blocked
by the locking pin.
4. Pull Clear Lens outward from lower center to remove. Insert new paper
display, and reverse steps 1-3.
Note: When replacing clear cover, make sure non-glare
finish side is facing outward.
Retention Clips with Larger Standard Assembly Signs
If your sign is 17"h x 17"w or larger, it likely features a clear plastic
Retention Clip (as in the images to the right) at the Top/Bottom Center of
the frame for Vertical Configurations, or at the Right/Left Center for
Horizontal Configuration signs. This Clip helps retain larger Lenses within
the frame and also ensures compression on the subsurface graphics.
If your sign features Retention Clips, they must be removed in order to
remove the sign insert from the frame.
1. Remove the clip by pressing down the small flange. Do not pry off. The
clip will tilt and the back angle is exposed. See Fig. 1. Now rotate the
clip to release from the narrow rail.
2. To replace, push clip directly on the narrow aluminum rail, the clip will
snap over the angle edge. See Fig 2.
