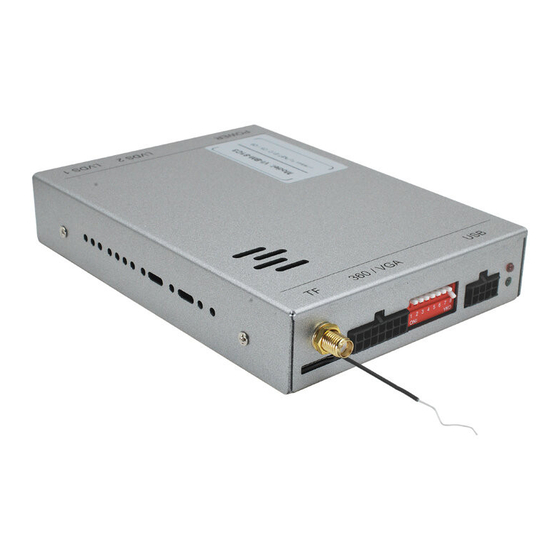

- Page 1 CARPLAY/ANDROID AUTO INTEGRATION FOR BMW NBT & NBT-EVO ID4 HEAD UNIT Model No. VI-BM-24C2 MCU Ver. 120010 CP-SW Ver. 20190701-v1.10.15 Manual Ver. Date Jul. 25, 2019 www.EmeraldIntegrations.com Tech Support: (844) 333-3903...
-
Page 2: Table Of Contents
CONTENT WARNING In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the Compatibility ....................4 interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire Features ....................... -
Page 3: Compatibility
COMPATIBILITY FEATURES Integrated 2 in 1 module supports Apple CarPlay and Android Auto Make Models Years Original system Support wireless & wired Apple CarPlay, wired Android Auto, wireless & wired AirPlay mirroring 1 series Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) 2 series Offers 2 video in for front and rear view camera 3 series... -
Page 4: Package Components
PACKAGE COMPONENTS CONNECTION DIAGRAM Connect external MIC Connect phone/USB stick WiFi & BT Antenna 26 mm 101 mm Provided 6pin 141 mm OEM screen LVDS cable WiFi & BT Antenna Main unit OEM 6pin OEM head unit LVDS cable POWER LVDS 2 LVDS 1 Move fiber optic cable to the provided quadlock connector,... -
Page 5: Dip Setting
DIP SETTING OPERATION INSTRUCTION HOW TO SWITCH FROM ORIGINAL TO ADD ON INTERFACE ADD ON OEM UI INTERFACE Disable PDC, Enable PDC (full screen reversing camera) (split reversing screen with PDC) Disable 360 panoramic Enable 360 panoramic Press and hold "MENU" or "BACK" button on iDrive controller for 3S to switch menu. -
Page 6: Add On Module Ui
SETTINGS Auto Phone Connect ON: CarPlay or Android Auto will start automatically after connecting your iPhone or Android smartphone. Press and hold "OPTION" for 3S Press and hold "MODE" on to display front view camera steering wheel for 10S will reboot the interface Driver Position Left/Right: Left/right driving mode on CarPlay. -
Page 7: Apple Carplay
APPLE CARPLAY ANDROID AUTO NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay. A area B area move cursor between A Move cursor Back to add on main menu and B area to A area Move cursor to A area/ Activate Open sub Google... - Page 8 30-Day Money-Back Guarantee At Emerald Integrations, we want to make sure that you are completely satisfied. If for some reason you aren't happy with an item on your order and want to return it, we make returns and refunds extremely simple.
