Summary of Contents for Chelino APACHE TRAVEL SYSTEM

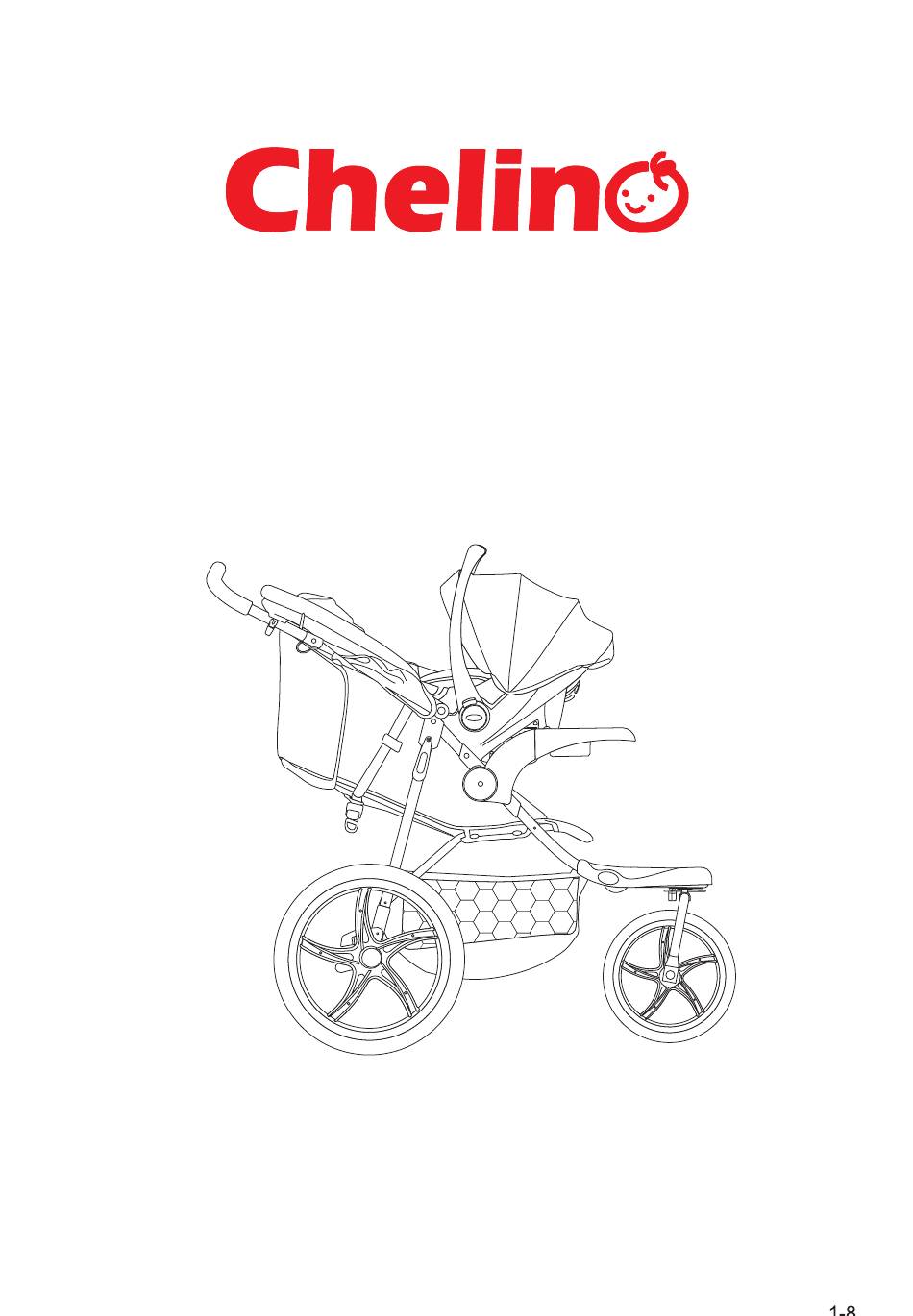

- Page 1 A PA C HE TRAV E L S Y S T E M MA NUA L...
- Page 2 CHELINO reserves the right to alter product specifications without notice as a result of our ongoing policy of product improvement.
-
Page 3: Opening The Stroller
(10) 6. BACKREST ADJUST SYSTEM 1. PEEP WINDOW 7.BASKET 2.CANOPY 8. REAR WHEEL 3. EASY FOLD MECHANISM 9. BRAKE PEDAL 4. FRONT BABY TRAY 10. FRONT WHEEL 5. LATCH OPENING AND ASSEMBLING INSTRUCTIONS OPENING THE STROLLER 1、 • FIRST CHECK WHETHER YOUR STROLLER IS EQUIPPED WITH A LATCH, WHICH HOLDS THE STROLLER’S FRAME TOGETHER. - Page 4 LATCH 2、 DIRECTION ADJUSTMENT OF THE FRONT-WHEEL-DEPENDING ON YOUR STROLLER, YOU CAN EITHER LIFT THE TAB ON YOUR FRONT WHEEL TO LOCK THE WHEEL INTO A FIXED DIRECTION OR YOU CAN PUSH THE TAB DOWN TO HAVE THE WHEEL SWIVEL. THIS FEATURE IS NOT STANDARD/ AVAILABLE ON ALL STROLLERS.
- Page 5 3、 INSTALLATION AND REMOVAL OF REAR WHEELS INSERT THE PIN INTO THE AXLE AS SHOWN IN FIGURE BELOW. ENSURE THAT THE WHEEL IS ATTACHED TO THE AXLE. INSERT BOTH WHEELS ONTO THE AXLE FIRST. PRESS THE QUICK RELEASE BUTTON AND PULL THE WHEEL AS SHOWN IN FIGURE BELOW quick release...
- Page 6 TO SECURE THE CHILD THE SHOULDER STRAPS OF THE 5-POINT HARNESS HAVE 2 ATTACHMENT POSITIONS. SELECT THE POSITION THAT PLACES THE SHOULDER STRAP LEVEL WITH, OR BELOW THE TOP OF THE CHILD'S SHOULDER. CAREFULLY PLACE THE CHILD IN THE STROLLER SEAT AND BRING THE SAFTY HARNESS AROUND THE CHILD'S WAIST AND OVER THE SHOULDERS.
- Page 7 TO OPEN THE CANOPY: PUSH FORWARD ON THE FRONT EDGE OF THE CANOPY WHILE HOLDING THE REAR OF CANOPY IN PLACE. UNZIP THE ZIPPER AND PUSH AGAIN. THE SEAT HAS A M ULTIPLE POSITION RECLINE THAT IS CONTROLLED BY A STRAP AND BUCKLE ASSEMBLY BEHIND THE SEAT.
- Page 8 TO ATTACH THE FRONT CHILD TRAY: INSERT THE TRAY CLI P INTO THE FITTING ON THE STROLLER'S FOLD JOINT. CHECK THE TRAY CLIP LOCKS INTO PLACE. (FIGURE 1) PUSH THE ANGLED TRAY ONTO THE POST AT THE END OF THE RIGHT ARMREST, WHIL E PRESSING DOWNWARD ON THE SNAP BUTTON, UNTIL L OCKED INTO PLACE.
- Page 9 MAKE SURE THAT THE CAR SEAT LOCKS INTO THE FRONT CHILD TRAY. THEN TURN TABS ON STROLLER FRAME TO LOCK THE FRONT OF THE CAR SEAT INTO THE STROLLER.
- Page 10 in the above...
- Page 11 of the...
- Page 12 Depending on the store's policy, there could be an extra charge for this service. Chelino will not take any responsibility if this product is incorrectly assembled thus causing any sort of injury to the user or the child.
- Page 13 Chelino requires 7 working days to repair any product, but this lead time may vary depending on the transportation of the product too and from yourself. Once the warranty card is detached from this product and once this product is used even if used once and if there is a fault, this product will need to be sent to the Chelino Workshop for the repair and no refund\credit\exchange will be allowed.
- Page 14 Stores:ChelinoBaby – Ormonde - JHB ChelinoBaby – Fourways – JHB ChelinoBaby – Menlyn – Pretoria ChelinoBaby – Gateway - Durban ChelinoBaby – Online – www.chelinobaby.co.za Importer: Anchor International Add: 12 Kimberlite Road , Theta Ext 5 Booysens Reserve , JHB 2091 South Africa. Tel: +2711 8352520...
