Bluetooth wireless technology
®
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
®
any use of such marks by Vossloh-Schwabe is under license. Other trademarks and trade names are
those of their respective owners.
We, Vossloh-Schwabe Deutschland GmbH, herewith confirm that these devices comply with the
basic requirements of the directive 2014/53 / EU and other relevant directives. The entire text of the
declaration of conformity can be obtained from the following address: www.vossloh-schwabe.com

Connection

Prepare the cable, connect it to the sensor and attach strain relief.
Use the provided fixing straps for fixing.
• Conductor cross-section for all screw terminals: 0.75-2.5 mm²
• Screw terminals: max. tightening torque: 0.4 Nm
• Prepare the cables for the sensor:
The DALI bus is not designed in SELV by default. Cables must be mains voltage resistant. The DALI bus
line can be routed together with the mains line in one cable up to a maximum of 100 m, e.g. with NYM
5x1.5 mm². Please make sure that the maximum length for the DALI bus is observed during installation:
2.5/1.5 mm²
300 m (6.2 Ω max.)

Assembly

PIR sensors detect changes in thermal radiation. All data on ranges refer to a room temperature of 20 °C.
Objects that are colder or warmer, in combination with high or low temperatures, usually lead to altered
detection ranges. When positioning the sensors, make sure that their detection range is not blocked by
objects, furniture, etc. Use the provided fixing straps for fixing.

Setup and operation

• The Blu2Light devices have to be configured with the LiNA Connect App and can be operated via
the LiNA Touch App.
• An Apple iPad is required for setup, it is not included in the scope of delivery.
LiNA Connect (configuration)
iPad
LiNA Touch (operation)
Tablet
Smartphone

Technical Notes

Blu2Light MultiSensor XXL
Communication:
Frequency range:
Output power:
Power supply:
Power consumption:
Ambient temperature t
Degree of protection:
Protection class:
Dimensions (LxWxH):
Casing:
Weight:
Screw terminals for lead cross section:
Mounting height:
Measuring range light sensor:

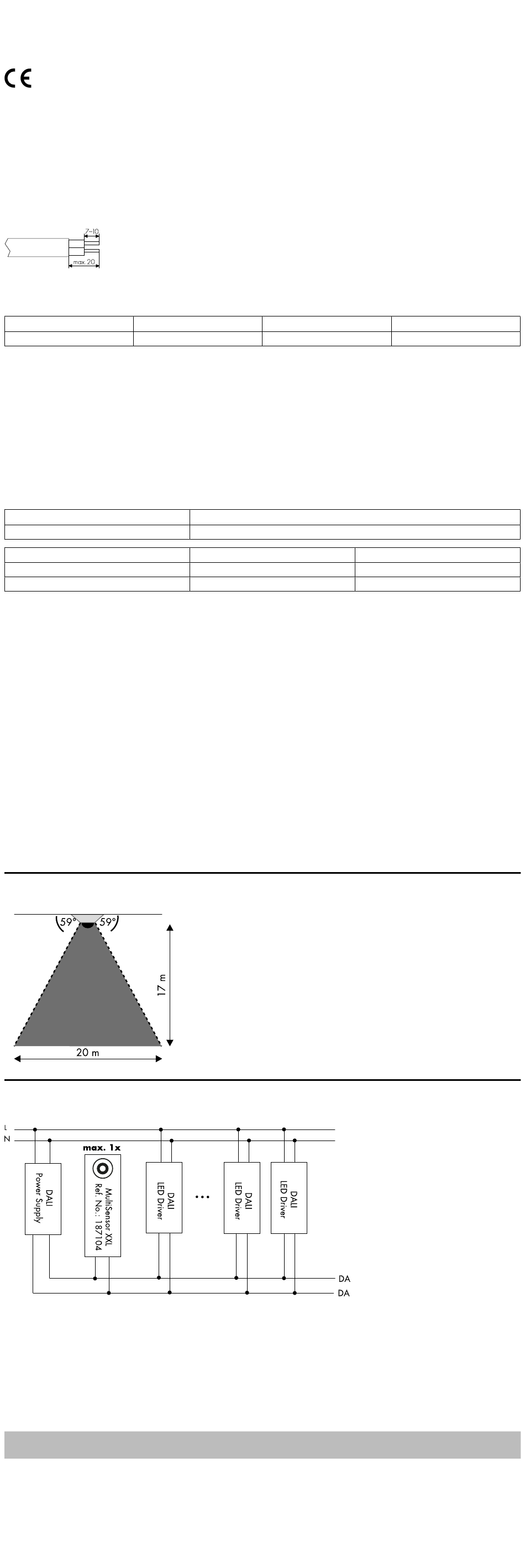

Erfassungsbereich des Sensors / Detection range of the sensor
Schaltbild / Wiring diagram
SERVICE
Vossloh-Schwabe Deutschland GmbH
Wasenstraße 25
D-73660 Urbach, Germany
Phone: +49 (0)7181 8002-0
info.vsv@vossloh-schwabe.com
For further information please visit our website: www.vossloh-schwabe.com
1 mm²
180 m (6.2 Ω max.)
iOS
version 10 and higher
iOS
version 10 and higher
version 10 and higher
Ref. No.: 187104
Blu2Light mesh network
2402–2480 MHz
< 10 mW EIRP
via DALI-Bus
15 mA
: 0–50 °C
a
IP20
II
103 x 36 x 32 mm
Plastics, white
40 g
0.75–2.5 mm²
max. 17 m
0–1000 lx, V(λ) compensated
0.75 mm²
130 m (6.2 Ω max.)
Android
version 5.0 or higher
version 5.0 or higher
0.5 mm²
80 m (6.2 Ω max.)
