TORREY PINES SCIENTIFIC EchoTHerm RIC40 Operating Manual

Digital, electronic chilling/heating dry bath
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

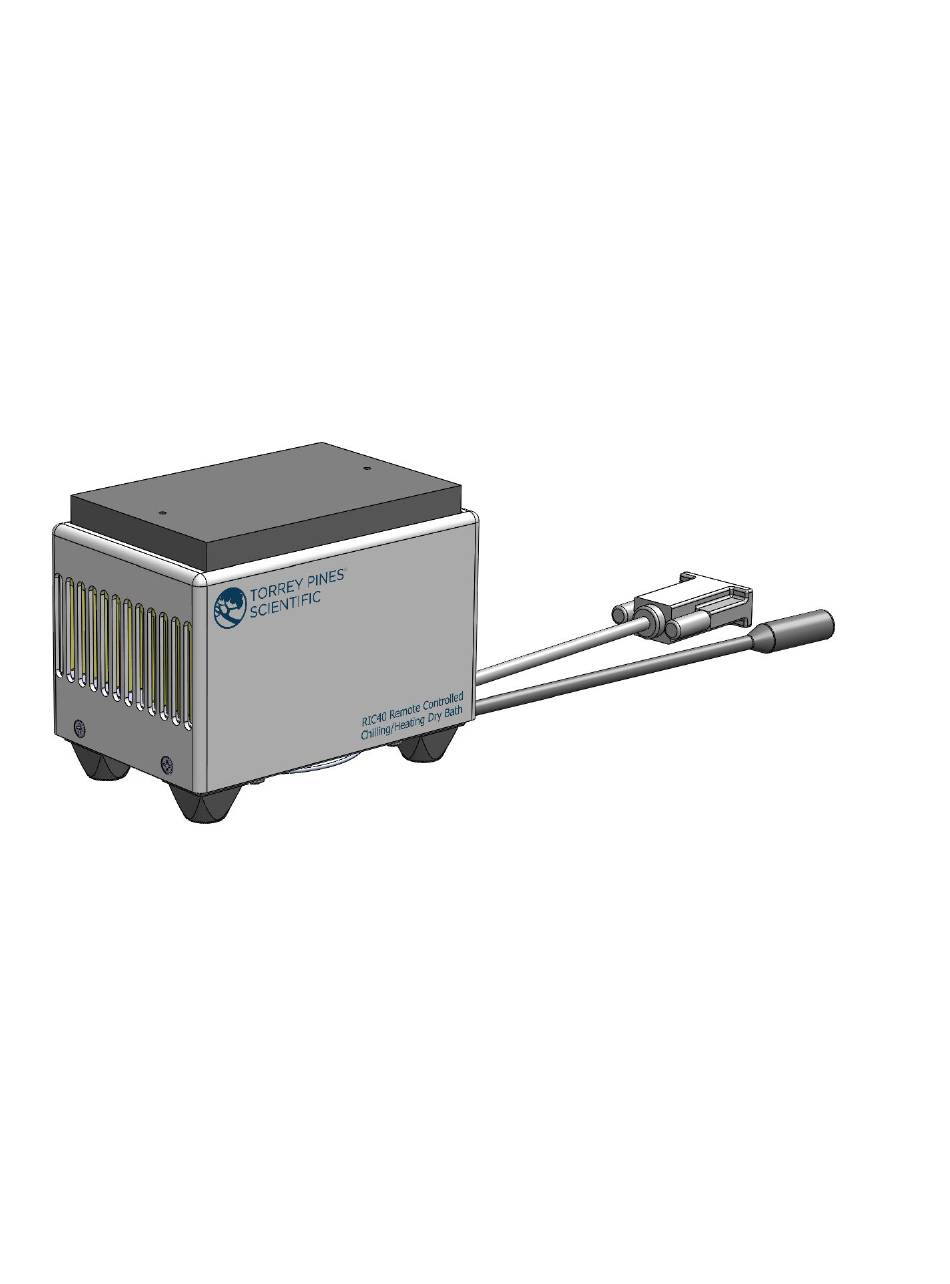

OPERATING MANUAL
TM
EchoTHerm
DIGITAL, ELECTRONIC CHILLING/HEATING DRY BATH
MODEL RIC40 and RIC40XR
DOCUMENT NUMBER RIC40-100
Revised June 30, 2020
TORREY PINES SCIENTIFIC, INC.
2713 Loker Ave. West
Carlsbad, CA 92010
TELEPHONE: (760)-930-9400
TOLL FREE: (866)-573-9104
FAX: (760)-930-9480
E-Mail: info@torreypinesscientific.com
Web site: www.torreypinesscientific.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EchoTHerm RIC40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TORREY PINES SCIENTIFIC EchoTHerm RIC40

Summary of Contents for TORREY PINES SCIENTIFIC EchoTHerm RIC40

  • Page 1 OPERATING MANUAL EchoTHerm DIGITAL, ELECTRONIC CHILLING/HEATING DRY BATH MODEL RIC40 and RIC40XR DOCUMENT NUMBER RIC40-100 Revised June 30, 2020 TORREY PINES SCIENTIFIC, INC. 2713 Loker Ave. West Carlsbad, CA 92010 TELEPHONE: (760)-930-9400 TOLL FREE: (866)-573-9104 FAX: (760)-930-9480 E-Mail: info@torreypinesscientific.com Web site: www.torreypinesscientific.com...

  • Page 2: Table Of Contents

    SET UP INSTRUCTIONS ................9 ENVIRONMENTAL INFORMATION ...............9 IX. TEMPERATURE CALIBRATION ..............10 IX. TEMPERATURE MEASUREMENT ERROR CODES ........11 X. CLEANING, MAINTENANCE, AND CONSUMABLE PARTS ......12 CLEANING ....................12 MAINTENANCE ....................12 SPARE PARTS AND CONSUMABLES ............12 XI. ADDITIONAL SYMBOLS ................13 Torrey Pines Scientific, Inc.

  • Page 3: Introduction

    Pines Scientific, Inc. T-Shirt free. II. WARRANTY Torrey Pines Scientific warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. If repair or adjustment is necessary and has not been the result of abuse or misuse within the one year period, please return---freight prepaid---and correction of the defect will be made without charge.

  • Page 4: Cautions

    Be certain to use a line cord of the same type and rating as the one supplied with this unit. Note: all fuses are fast blow. Bien vérifier que le cordon utilisé est du même type que celui livré avec lunité. Note: tous les fusibles sont à action rapide. Torrey Pines Scientific, Inc.

  • Page 5: General Description

    VI. GENERAL DESCRIPTION The Torrey Pines Scientific Models RIC40 and RIC40XR are Peltier driven chilling/heating dry baths. They come with a universal power supply and the chilling/heating module. These units have only one moving part, the DC fan that cools the unit. Everything else is solid state and should last years without problem.

  • Page 6: Heater/Chiller Plate

    4.375" (11.1 cm). It is designed to accommodate all the aluminum blocks supplied by Torrey Pines Scientific. The temperature of the plate is sensed by a platinum RTD mounted under the plate. The computer in the unit compares the plate temperature with the target temperature and instructs the Peltier module to heat or chill the plate as required to reach and hold the target temperature.

  • Page 7: Timer

    The units are equipped with EEPROM memory that will store user settings such as the last set point, MENU options, user changed calibration points, and program steps. These stored values will be recalled each time the unit powers up to maintain the configuration of the previous session. Torrey Pines Scientific, Inc.

  • Page 8: Ric40 Power And Rs232 Connector

    ASCII characters with carriage return as the terminating character. See instructions at the end of this manual for the Serial Command Set. Note: To comply with CE and to avoid possible EMI radiation from the RS232 cable, use a shielded cable. Torrey Pines Scientific, Inc.

  • Page 9: Set Up Parameters

    1C of the Set Point temperature for 60secs. Note: Do not use this equipment in any manner not specified by the manufacturer. ENVIRONMENTAL INFORMATION 1. This unit is for installation category II. 2. This unit is rated pollution degree 2. Torrey Pines Scientific, Inc.

  • Page 10: Temperature Calibration

    Temperature Value. If the temperatures are not stable when the measured temperature value is entered, significant display and unit performance errors may result. Check with the factory if help is needed. Also, a calibration kit is available. Torrey Pines Scientific, Inc.

  • Page 11: Temperature Measurement Error Codes

    Recommended Action The RTD Sensor is not connected or has RTDo Inspect Sensor and Sensor Connector failed and/or Contact Torrey Pines Scientific RTDs The RTD Sensor has shorted or has failed The Calibrated Temperature Value is out cal0 Reset High, Low, or Both Cal Points...

  • Page 12: Cleaning, Maintenance, And Consumable Parts

    There are very few spare or consumable parts. A simple list is below. For more information contact the factory. Part Number Description 730-0001 Power Cord, US 730-0006 Power Cord, German (European) 730-0008 Power Cord, UK 730-0004 Power Cord, Italian 730-0005 Power Cord, Australian Torrey Pines Scientific, Inc.

  • Page 13: Additional Symbols

    XII. ADDITIONAL SYMBOLS The following are additional symbols found on labels on the instrument Symbol Description Voltage Alternating Current Current Frequency Power Contact Info: For assistance, contact the factory at: Torrey Pines Scientific, Inc. Email: techsupport@torreypinesscientific.com Phone: (760)930-9400 Torrey Pines Scientific, Inc.
  • Page 14 RIC40 Programming Manual Rev A (June 30, 2020) Applicable to RIC40 and RIC40XR firmware v1.0 Torrey Pines Scientific, Inc.
  • Page 15 Plate Temp (User settable period 0-99:59) TEMP_STEADY (User settable enable/disable) TIMER=0 (User settable enable/disable) Non-Volatile Memory On Power Down, the following values are stored: • set point • high and low calibration values • event broadcast settings Torrey Pines Scientific, Inc.
  • Page 16 Characters within parenthesis are strings consisting of 7-bit ASCII characters and the string itself is the argument for a command. The length of the string is clarified in the discussion of the command and the two parenthesis are not included in the transmission of the command string. Torrey Pines Scientific, Inc.
  • Page 17 Terminal Mode is cancelled when the RIC40 is powered off. COM Settings 9600 baud 1 stop bit no parity no hardware handshake 50ms delay after each line sent (after each “;”) Torrey Pines Scientific, Inc.
  • Page 18 <CR><LF>. If the command is not received in the proper syntax, e<CR><LF> will be returned. Example—Return the string that was stored using the >(user defined string) command: send: ><CR> returned: Unit 1<CR><LF> if “Unit 1” was previously stored returned: <CR><LF> if no user string has been stored Torrey Pines Scientific, Inc.
  • Page 19 Example1— Change set point to -10.0C: send: n-10.0<CR> returned: ok <CR><LF> Example2 – Change set point to 9.3C : send: n9.3<CR> returned: ok <CR><LF> Example3 – Change set point to 100.0C : send: n100.0<CR> returned: ok <CR><LF> Torrey Pines Scientific, Inc.
  • Page 20 Example – exit Idle Mode by setting new set point to 25.0C send: n25.0<CR> returned: ok <CR><LF> Example – verify no longer in Idle Mode and set point is 25.0C: send: s<CR> returned: 25.0<CR><LF> Torrey Pines Scientific, Inc.
  • Page 21 Description: When the command au<CR> is received by the RIC40 unit, the current timer value will decrement every second. If the command is not received in the proper syntax, e<CR><LF> will be returned. Example – Verify current timer value is 00:30:00 Torrey Pines Scientific, Inc.
  • Page 22 00:00:00. If the command is not received in the proper syntax, e<CR><LF> will be returned. Example – Clear the Current Timer Value send: ac<CR> returned: ok<CR><LF> Example – Read Current Timer Value send: a<CR> returned: 00:00:00 <CR><LF> Torrey Pines Scientific, Inc.
  • Page 23 The value will always include a decimal point and one character representing the fractional tenth value. If the command is not received in the proper syntax, e<CR><LF> will be returned. Torrey Pines Scientific, Inc.
  • Page 24 Example – The RIC40 Low Calibration Point is 10.0C, the measured temp when the unit is steady at 10.0C is 11.3C. Set the measured Low Calibration Point temperature: send: t11.3<CR> returned: ok <CR><LF> Torrey Pines Scientific, Inc.
  • Page 25 Point and the Measured Temperature at the Low Calibration Point will be set to the default value of - 10.0C. If the command is not received in the proper syntax, e<CR><LF> will be returned. Example – set the Low Calibration Point to Default (-10.0C) send: h<CR> returned: ok <CR><LF> Torrey Pines Scientific, Inc.
  • Page 26 M<CR> returned: StbLH,-10.0,-10.0,00:04:13<CR><LF> (temp is steady, timer not running, unit not broadcasting, low temp cal done, high temp cal done, set point is -10.0, plate temp is -10.0, the timer value is 4 mins 13 sec) Torrey Pines Scientific, Inc.
  • Page 27 Example – set to broadcast when the temperature is steady at the set point but do not broadcast when the timer has reached zero. send: BSz<CR> returned: ok <CR><LF> Example – return the current Broadcast Event settings send: B<CR> returned: Sz <CR><LF> Torrey Pines Scientific, Inc.
  • Page 28 H = high temp cal has been done Example – return the Status String send: S<CR> returned: StbLH <CR><LF> (temp is steady, timer not running, unit not broadcasting, low temp cal done, high temp cal done) Torrey Pines Scientific, Inc.
  • Page 29 = high temp cal not done (default values stored) H = high temp cal has been done <CR> is return char (for example: “enter” keyboard press for HyperTerminal, “\r” for C pgms, ASCII hex char “0D”) Torrey Pines Scientific, Inc.
