Ditron DM-A How To Mount

Magnetic scale

TECHNICAL SPECIFICATIONS

Resolution

Output:

Waterproof and seal rating

Accuracy

Length of the magnetic scale

Magnetic gap

Working temperature

a. The place where the scale is to be installed should be thoroughly cleaned from oil, dust, coolant,

and burrs etc.

b. Appropriate reader head mounting brackets will need to be designed to fix the reader head making sure

that the reader head can freely move along the magnetic scale.

c. Mount the scale so that the magnetic strip on the extrusion will be to the top side of the extrusion.

The magnetic scale (open extrusion) measures the movement precisely and accurately. To ensure

the specified accuracies, installation of the magnetic scale (open extrusion) must be done correctly as

de-scribed in this manual. Please read this manual carefully before use of the products.

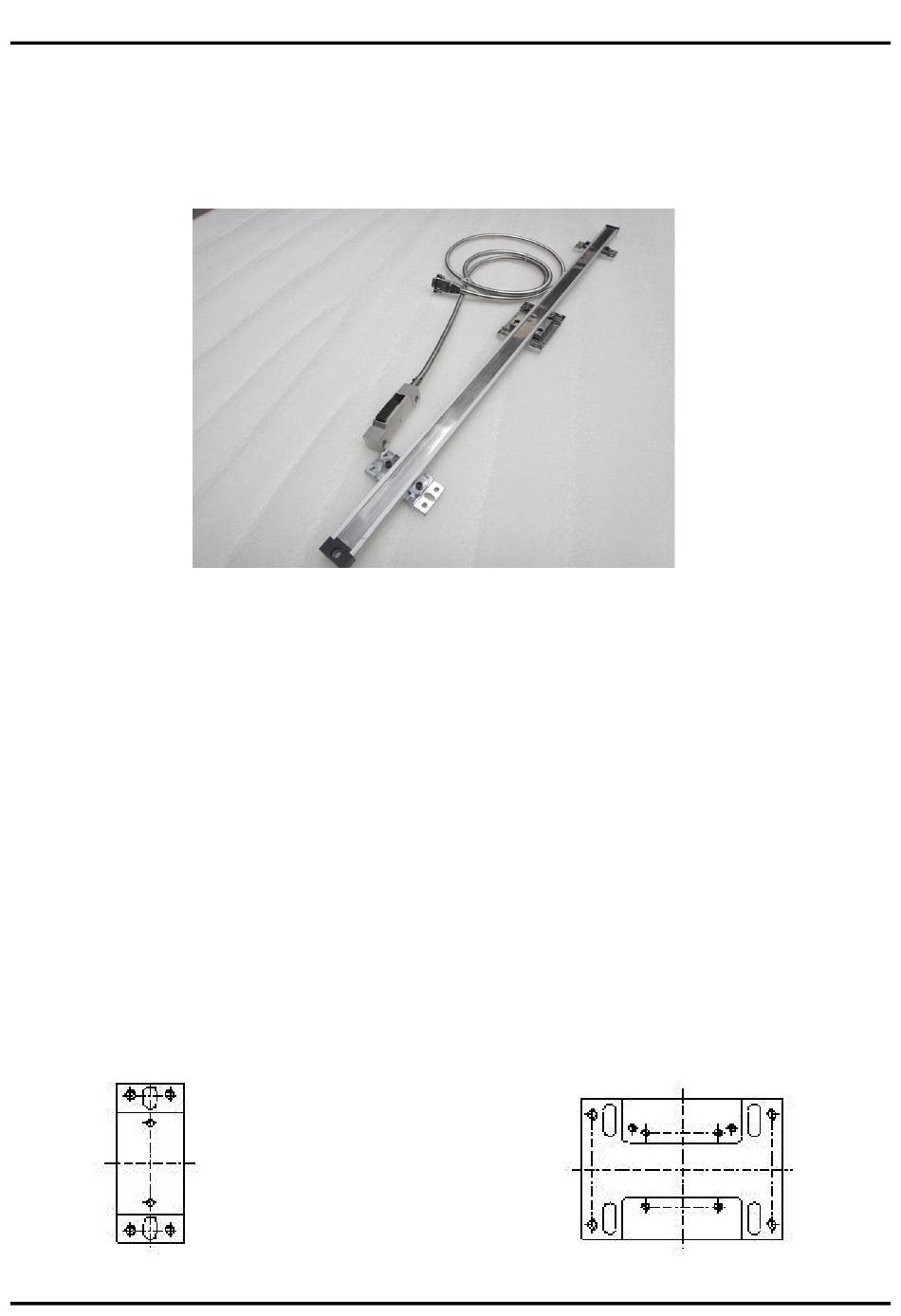

HOW TO MOUNT

DM-A Magnetic Scale

Mounting Bracket

0.025mm,0.01mm,5um,0.5um

line-driver;push-pull

IP67

±10um,15um,30,um

Maximum 32 Meters

1+1mm,2+2mm,5+5mm

-10to 80°C

Connecting Bracket

Table of Contents

Do you have a question about the DM-A and is the answer not in the manual?

Page 1 HOW TO MOUNT DM-A Magnetic Scale TECHNICAL SPECIFICATIONS Resolution 0.025mm,0.01mm,5um,0.5um Output: line-driver;push-pull Waterproof and seal rating IP67 Accuracy ±10um,15um,30,um Length of the magnetic scale Maximum 32 Meters Magnetic gap 1+1mm,2+2mm,5+5mm Working temperature -10to 80°C INSTALLATION CONDITIONS a. The place where the scale is to be installed should be thoroughly cleaned from oil, dust, coolant, and burrs etc.
Page 2 Magnetic scale installation: 1. Select the mounting surface for the scale on the machine insuring that the reader head also can be mounted in such a way to be able to travel along the length of the scale. The surface should be as flat as possible and run parallel with the axis.
