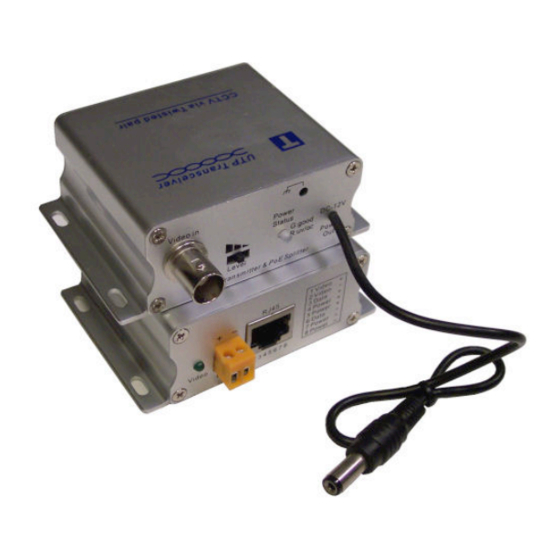

- Page 1 INSTALLATION MANUAL© ST-CCTV-VBAC-POEPTZ 1 Channel Power Over Ethernet UTP Active Video Balun Transceiver Copyright North American Cable Equipment, Inc. v2.0 10/16/10...
- Page 2 PTZ control signal applications. The ST-CCTV-VBAC-POEPTZ also transmits electrical power along with data to remote devices over standard UTP cable. In applications such as security surveillance and elevator surveillance...
- Page 3 INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose.
- Page 4 a. Connect the video source (e.g., security camera) to the ST-CCTV-VBACT-POE’s BNC port using coaxial cable with BNC connectors. b. If the video source requires power connect the ST-CCTV-VBACT-POE’s power lead to the source. Many CCTV cameras are 12V DC. c.
- Page 5 sharpness. Refer to the reference guide below to set the sharpness control’s DIP switches per cable distance. 1000 ft 2130 ft 3278 ft 4261 ft 1327 ft 2458 ft 3442 ft 4590 ft 1639 ft 2622 ft 3770 ft 4753 ft 2000 ft 3000 ft 4100 ft...
- Page 6 Further troubleshooting assistance can be found on-line at www.securitytronix.com addition to support from SecurityTronix sales engineers at 1-610-429-1511. v2.0 10/16/10...
