Canada Comfy Chair Comfy FCC200 Assembly Instructions

ASSEMBLY INSTRUCTIONS
B
A
C
2x
D
2x
E
F F
2x
2x
B
4x
2x
B
C
2x
B
D
Plastic

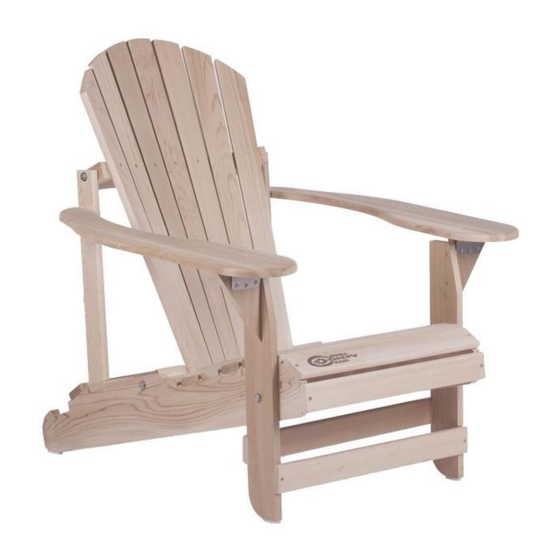

Comfy FCC200
Step 1:
First screw the stopper together by screwing
the slats "B" to "A" using the small screws.
Step 2:
Now screw the backrest "C" to the underside
of the beams "D" using the bolts and nuts.
Tighten it so that the backrest remains in
position (do not overtighten).
Then take the stopper and place it in the first
recess and mount the stopper on the top of
the backrest using the 2 bolts and nuts.
Step 3:
Place the chair on the side and tighten the
legs and armrest "E". The legs by using the
bolt with nut and washer and the handrail by
using a large screw with washer.
Step 4:
Finally, the two slats "F" are mounted on the
front of the chair, in the recesses.
