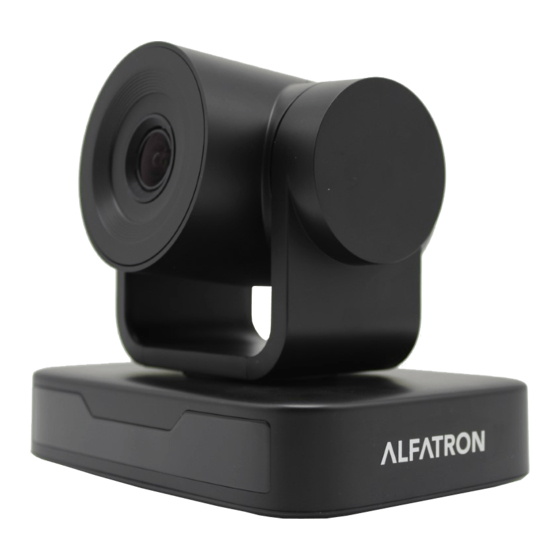

ALFAtron ALF-3XUSB2C User Manual

Full hd ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY
ALF-3XUSB2C and ALF-10XUSB2C Full HD PTZ Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALF-3XUSB2C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALFAtron ALF-3XUSB2C

Summary of Contents for ALFAtron ALF-3XUSB2C

  • Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-3XUSB2C and ALF-10XUSB2C Full HD PTZ Camera User Manual...
  • Page 2 ALFATRON ALF-3XUSB2C Attention FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 ALFATRON ALF-3XUSB2C 1. Precaution 1.1 Avoid damage to the camera caused by heavy pressure, strong vibration or immersion during transportation, storage and installation. 1.2 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids which may corrode the shell.

  • Page 4: Table Of Contents

    ROTOCOL OMMAND 4.3 P -P P ....................28 ELCO ROTOCOL OMMAND 5. MAINTENANCE AND TROUBLESHOOTING ..................28 5.1 C ........................29 AMERA AINTENANCE 5.2 T ........................... 29 ROUBLESHOOTING 6. WARRANTY ............................30 LIMITED WARRANTY IN RESPECT OF ALFATRON PRODUCTS............30...

  • Page 5: Camera Installation

    ALFATRON ALF-3XUSB2C 1. Camera Installation 1.1. Camera Introduction Figure 1.1 Product Interfaces 1. Camera Lens 5. Screw Hole for Tripod 9. USB 2.0 Interface 2.RemoteControl Receiving 6. RS232 Control Interface（Input） 10.DC12V Input Power Indicator Supply Socket 3. Camera Base 7. RS232 Control Interface（Output）...

  • Page 6: Video Output

    ALFATRON ALF-3XUSB2C 1.3 Video Output USB2.0 Video Output a. USB 2.0 video cable connection: as shown in Figure1.1 label 9 b. Connect the camera and the computer via USB2.0 video cable, open the video software and select the image device to output the video.
  • Page 7 ALFATRON ALF-3XUSB2C 2）Ceiling Mounting...

  • Page 8: Product Overview

    ALFATRON ALF-3XUSB2C 2. Product Overview 2.1 Dimension...

  • Page 9: Accessory

    ALFATRON ALF-3XUSB2C Figure 2.2 Product Dimension 2.1.3 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Wall Mount or Ceiling Mount Power adapter IR Remote Control RS232 Cable User Manual USB2.0 Cable 2.2 Main Features This series camera has superior performance, and rich video output interfaces;...

  • Page 10: Technical Parameter

    ALFATRON ALF-3XUSB2C 2.3 Technical Parameter Model Camera Parameter Sensor 1/2.9-inch-high quality CMOS sensor Effective Pixels 2.07 megapixel, 16：9 H264/H265/MJPG:1920×1080P@30/25/20/15/10/5 Video Format fps；1280*720P@30/25/20/15/10/5fps； 960*540@30/25/20/15/10/5fps； 800*600@30/25/20/15/10/5fps； 720*576@30/25/20/15/10/5fps； 720*480@30/25/20/15/10/5fps； 640*480@30/25/20/15/10/5fps； 640*360@30/25/20/15/10/5fps； 352*288@30/25/20/15/10/5fps； 320*240@30/25/20/15/10/5fps； YUY2:1280*720@10/5fps；800*600@10/5fps； 640*480@30/25/20/15/10/5fps； 640*360@30/25/20/15/10/5fps； 320*180@30/25/20/15/10/5fps View Angle 34.1° ～ 85° 8.8° ~ 66°...
  • Page 11 ALFATRON ALF-3XUSB2C PTZ Parameter Pan Rotation -170°～+170° Tilt Rotation -30°～+30° Pan Control Speed 0.1 ～60°/sec Tilt Control Speed 0.1～40°/sec Preset Speed Pan: 60°/sec, Tilt: 40°/sec Preset Number 255 presets (10 presets via remote control) Other Parameter Input Voltage Input Current Maximum: 4.98A...

  • Page 12: Interface Instruction

    ALFATRON ALF-3XUSB2C 2.4 Interface 2.4.1 External Interface Figure2.4 Wiring Diagram 2.4.2 RS-232 Interface 1）RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS...
  • Page 13 ALFATRON ALF-3XUSB2C 2）RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR Commander Signal IR OUT No Connection 3）RS232(DB9) Port Definition Definition Port Data Carrier Detect Receive Data...

  • Page 14: Application Instruction

    ALFATRON ALF-3XUSB2C 3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration The remote-control receiving indicator will flash after the camera powers on, the pan-tilt will turn left to the lowest position, and then returns to the HOME position (both the horizontal and vertical positions are in the middle), while the movement first shrinks and then stretches.
  • Page 15 ALFATRON ALF-3XUSB2C 1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. 2) When a key-combination is required, do it in sequence. For example, “【*】+ 【#】...
  • Page 16 ALFATRON ALF-3XUSB2C 4. Zoom Control ZOOM +: press【ZOOM +】key to zoom in ZOOM -: press 【ZOOM -】key to zoom out Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.

  • Page 17: Menu Introduction

    ALFATRON ALF-3XUSB2C 【MENU】: Open / close the OSD menu 【 HOME 】 : Camera lens back to the middle position; Confirm button; Enter next menu 【↑】 【↓】 ：Choose item 【←】 【→】 ：Modify values 【BLC ON/OFF】 ：Turn on or off the back light compensation 8.

  • Page 18: System Setting

    ALFATRON ALF-3XUSB2C [↑↓] Select: For selecting menu [← →] Change Value: For modifying parameters [MENU] Back: Press [Menu] to return [Home] OK: Press [Home] to confirm 3.3.2 System Setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System...
  • Page 19 ALFATRON ALF-3XUSB2C Color: Enter color setting Image: Enter image setting Focus: Enter focus setting Noise Reduction: Enter noise reduction 1）Exposure Setting Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】key and enter the (Exposure sub menu) as shown below, EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 20 ALFATRON ALF-3XUSB2C COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity High [↑↓]Select [← →]Change Value [Menu]Back WB Mode: Auto, Manual, One Push, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K,7000K Saturation: 60%,70%,80%,90%,100%,110%,120%,130%,140%,150%,160%,170%,180%,190%,200% Red fine-tuning: -10~10 (only available in automatic mode)

  • Page 21: P/T/Z

    ALFATRON ALF-3XUSB2C Flip-V: On/Off B&W Mode: color, black/white Gamma: Default/0.45/0.50/0.5/0.63 DCI: Dynamic Contrast: Off/1～8 Minimum Illumination: On/Off 4）Focus Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow, FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone AF-Sensitivity [↑↓]Select...

  • Page 22: Version

    ALFATRON ALF-3XUSB2C P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Acc Curve Slow [↑↓]Select [← →]Change Value [Menu]Back Depth of Field: Only effective for the remote controller, On/ Off; (When zooming in, the PT control speed by remoter will become slow)

  • Page 23: Serial Port Communication And Control

    ALFATRON ALF-3XUSB2C RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [↑↓]Select [← →]Change Value [Menu]Back [Home]OK Restore default: YES/NO. Color style and video format cannot be restored to factory default Note: If the address of former remoter is not 1 but another one from 2, 3, 4, the corresponding camera address will restore to 1 when all parameters or system parameters are restored.

  • Page 24: Visca Protocol Control Command

    ALFATRON ALF-3XUSB2C 4.1.2 VISCA Protocol Control Command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power...
  • Page 25 ALFATRON ALF-3XUSB2C Command Function Command packet Note Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode Shutter Priority Automatic Exposure CAM_AE Shutter priority 8x 01 04 39 0A FF...

  • Page 26: Visca Protocol Inquiry Command

    ALFATRON ALF-3XUSB2C Command Function Command packet Note 8x 01 04 66 02 FF CAM_PictureFlip Image Flip Vertical ON/OFF 8x 01 04 66 03 FF P=0-E 0:60% 1:70% 2:80% 3:90% 4:100% 5:110% 6:120% 7:130% CAM_ColorSaturation Direct 8x 01 04 49 00 00 00 0p FF...
  • Page 27 ALFATRON ALF-3XUSB2C Command Packet Return Packet Command Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF...

  • Page 28: Pelco-D Protocol Command List

    ALFATRON ALF-3XUSB2C y0 07 7D 01 06 01 FF Pan_titleDriver CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position...

  • Page 29: Pelco-P Protocol Command List

    ALFATRON ALF-3XUSB2C Response Byte Byte Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Query Tilt Position Value High Value Low 0xFF Address 0x00 0x5B Response Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position...

  • Page 30: Camera Maintenance

    ALFATRON ALF-3XUSB2C 5.1 Camera Maintenance 1) Please power off the camera and disconnect the power adapter and socket, if it’s not used for a long time. 2) Use a soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed.

  • Page 31: Warranty

    ALFATRON ALF-3XUSB2C 6. Warranty Limited warranty in respect of Alfatron Products 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
  • Page 32 ALFATRON ALF-3XUSB2C 1.10.2 Replace this product with a direct replacement or with a similar product deemed by the Company to perform substantially the same function as the original product; or 1.10.3 Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

This manual is also suitable for:

Alf-10xusb2c
