ANXELL PBT-1100 Operation Instructions

PBT-1100/1150 Push Button
◆
Specifications
Model
Operating Voltage
Current Draw
Output Contacts
NC/COM/NO
3A/12VDC
Contact Rating
3A/120VAC
LED Indicator Light
Temperature -20~+70°C
◆

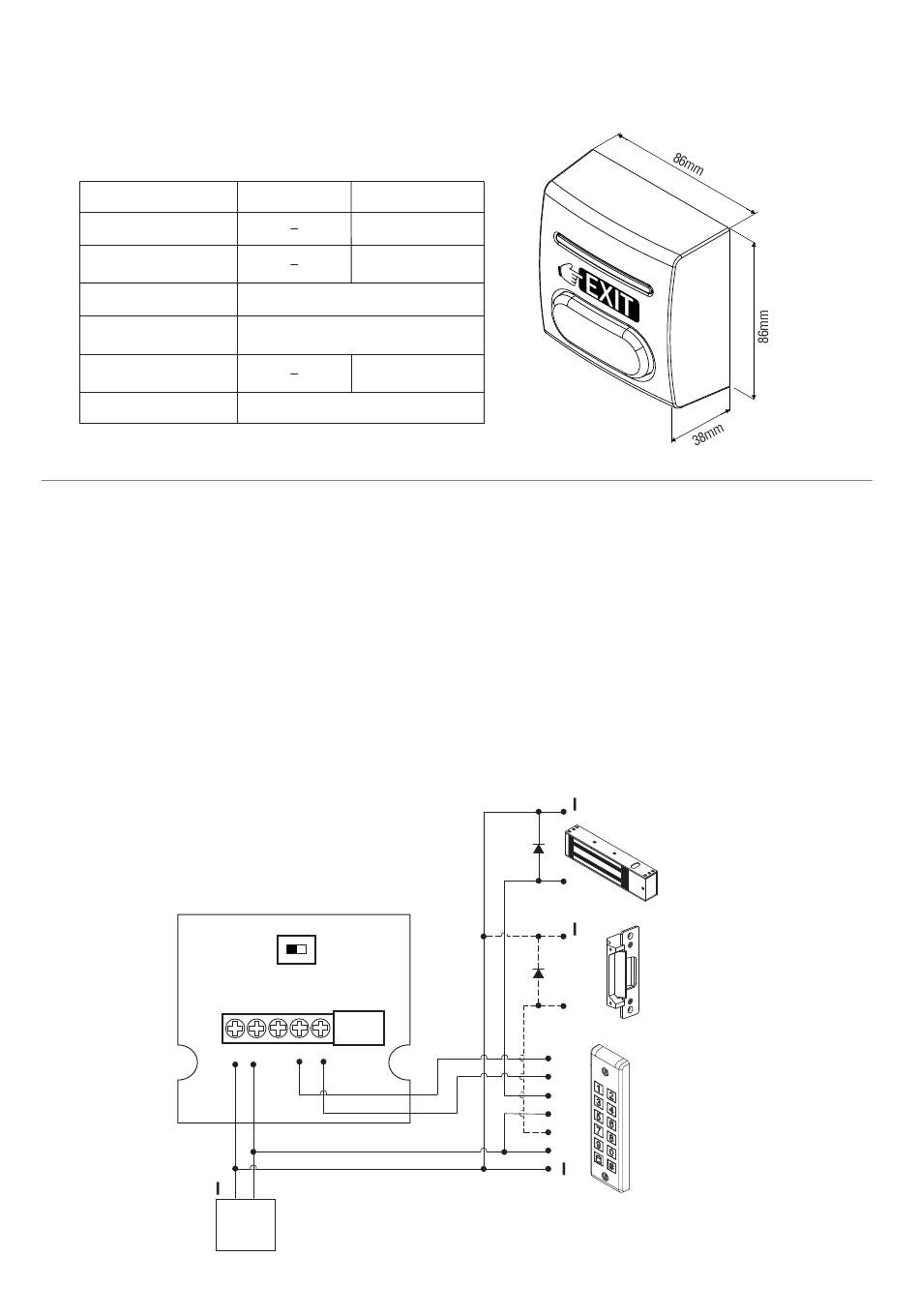

Wiring Diagram
The PBT-1150 includes one pair of NO and
NC output contacts, which can directly
connect to a locking device or connect in
parallel or series with access control systems.
+ -
-
Power
Supply
Operation Instructions
PBT-1100 PBT-1150
12/24 VDC/AC
30~40mA/12VDC
40~60mA/24VDC
Red/Green
(with color switch)
PBT-1150
(INSIDE)
Relay
N.C. COM N.O.
-
Copyright © All rights reserved. P-MU-PBT1100 Published 2020.10.21
Note:
1. Make sure that the power input and relay
rating output (3A 120VAC/3A 12VDC) are correct.
2. Make sure that the "+" and "-" wires are
connected correctly.
3. The door strike or relay must have a varistor
or a diode across the door strike terminals to
suppress the back EMF of the strike. Failure to
do so will damage the relay contacts and
electronic components, or even burn the
controller.
-
-
-
-
P.B.
P.B.
N.C.
COM
-
N.O.
-
Electromagnetic Lock
(fail-safe)
Electric Strike
(fail-secure)
Digital Keypad
(OUTSIDE)
