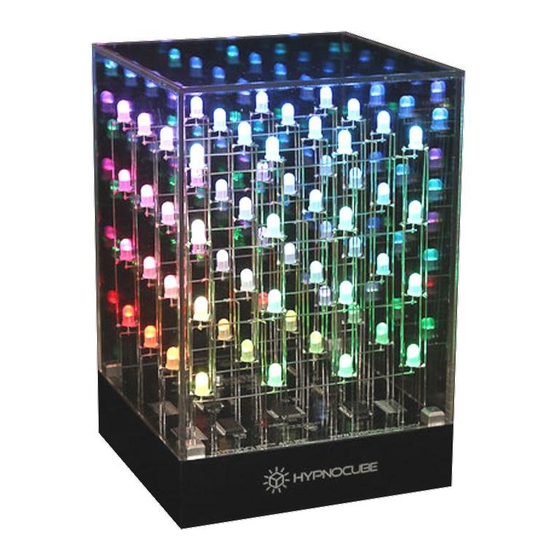

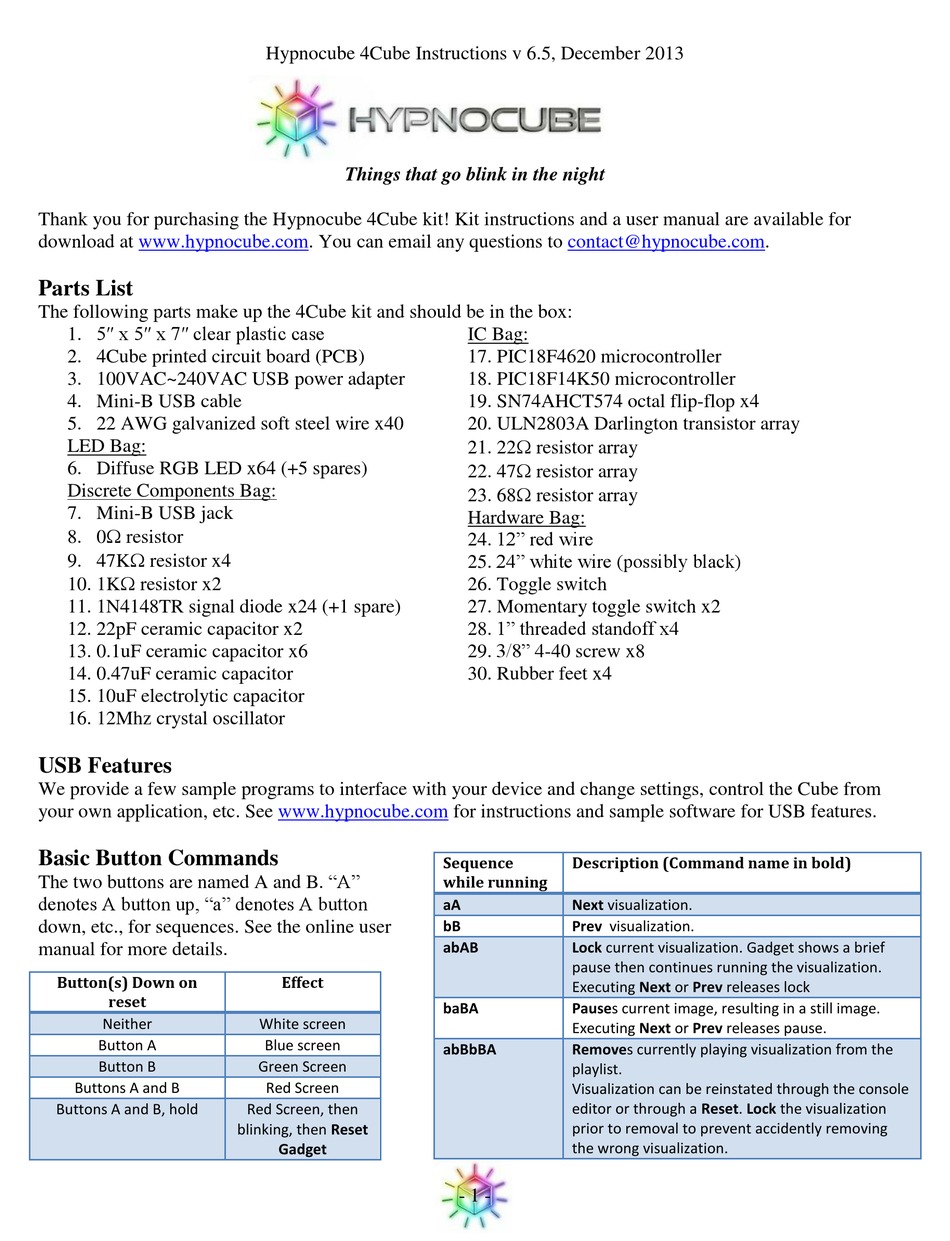

Thank you for purchasing the Hypnocube 4Cube kit! Kit instructions and a user manual are available for
download at www.hypnocube.com. You can email any questions to contact@hypnocube.com.
Parts List
The following parts make up the 4Cube kit and should be in the box:
1. 5" x 5" x 7" clear plastic case
2. 4Cube printed circuit board (PCB)
3. 100VAC~240VAC USB power adapter
4. Mini-B USB cable
5. 22 AWG galvanized soft steel wire x40
LED Bag:
6. Diffuse RGB LED x64 (+5 spares)
Discrete Components Bag:
7. Mini-B USB jack
8. 0 resistor
9. 47K resistor x4
10. 1K resistor x2
11. 1N4148TR signal diode x24 (+1 spare)
12. 22pF ceramic capacitor x2
13. 0.1uF ceramic capacitor x6
14. 0.47uF ceramic capacitor
15. 10uF electrolytic capacitor
16. 12Mhz crystal oscillator
USB Features
We provide a few sample programs to interface with your device and change settings, control the Cube from
your own application, etc. See
Basic Button Commands
The two buttons are named A and B. "A"
denotes A button up, "a" denotes A button
down, etc., for sequences. See the online user
manual for more details.
Button(s) Down on
reset
Neither
Button A
Button B
Buttons A and B
Buttons A and B, hold
Hypnocube 4Cube Instructions v 6.5, December 2013
Things that go blink in the night
www.hypnocube.com
Effect
White screen
Blue screen
Green Screen
Red Screen
Red Screen, then
blinking, then Reset
Gadget
IC Bag:
17. PIC18F4620 microcontroller
18. PIC18F14K50 microcontroller
19. SN74AHCT574 octal flip-flop x4
20. ULN2803A Darlington transistor array
21. 22 resistor array
22. 47 resistor array
23. 68 resistor array
Hardware Bag:
24. 12" red wire
25. 24" white wire (possibly black)
26. Toggle switch
27. Momentary toggle switch x2
28. 1" threaded standoff x4
29. 3/8" 4-40 screw x8
30. Rubber feet x4
for instructions and sample software for USB features.
Sequence
Description (Command name in bold)
while running
aA
Next visualization.
bB
Prev visualization.
abAB
Lock current visualization. Gadget shows a brief
pause then continues running the visualization.
Executing Next or Prev releases lock
baBA
Pauses current image, resulting in a still image.
Executing Next or Prev releases pause.
abBbBA
Removes currently playing visualization from the
playlist.
Visualization can be reinstated through the console
editor or through a Reset. Lock the visualization
prior to removal to prevent accidently removing
the wrong visualization.
- 1 -
