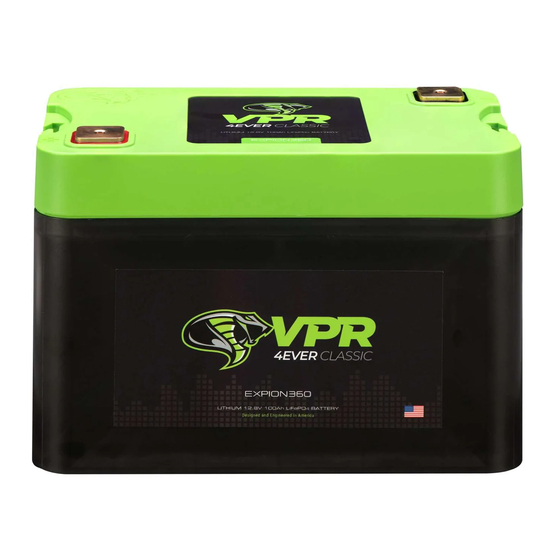

- Page 1 USER MANUAL MODEL EX-100C-27...
- Page 2 Some charge sources will not charge when they detect an open circuit as they will when the BMS has disconnected it. We recommend active power management using a battery monitoring system (coulomb counter) like the Expion360 model to prevent this from occurring.
-
Page 3: Charge Rate
MULTIPLE BATTERY CONNECTION See the series and parallel connection diagram page for information. Parallel Connection: The VPR can be parallel connected with up to 4 batteries in a single string. By parallel connecting the VPR, the available capacity, charge, and discharge rate will increase by the amount per battery up to the maximum allowable of four batteries. -
Page 4: Installation
LiFePO4/LFP. Two of our chargers can be used in parallel to get a 50A charge rate. This model is simple to install and use. The Expion360 25A mobile charger can be used with other LiFePO4/LFP chemistry batteries that meet its specification. -
Page 5: Discharge Rate
The VPR LFP battery will remain between 13.0-13.2V (open circuit) for much of its discharge cycle. The Expion360 battery monitor is an excellent choice as it is very accurate for lithium, easy to program, and use. It shows capacity in amp hours and as a percentage. It has a time counter that will display the time until empty when discharging and time until full while charging. -
Page 6: Voltage Readings
ACCESSORIES The products listed below are just a few items Expion360 manufactures that are available for use with this battery. For questions regarding these products, please email support@expion360.com. Model EV-BM350: Battery monitor with display, 500A shunt, 35’ cable, and mounting bracket. -
Page 7: Electrical Parameters
MODEL EX-100C-27 TECHNICAL SPECIFICATIONS ELECTRICAL PARAMETERS NOMINAL VOLTAGE 12.8V RATED CAPACITY 100Ah ENERGY 1280Wh RESISTANCE ≤50mΩ EFFICIENCY CYCLE LIFE @ 1C, 100% DOD ≥2000 CYCLES SELF DISCHARGE ≤2% PER MONTH CELL CHEMISTRY LiFePO4 / LFP MECHANICAL PARAMETERS DIMENSIONS (L X W X H) INCHES 11.93 X 6.81 X 8.59 WEIGHT 29.76Lbs... - Page 8 BUS BAR AND CABLE CONNECTION PARALLEL CONNECTION SPECIFICATIONS VPR QTY VOLTAGE RANGE CHARGE RATE DISCHARGE RATE CAPACITY 25-50A 100Ah 50-75A 160A 200Ah 75-100A 240A 300Ah 100-125A 320A 400Ah SERIES CONNECTION SPECIFICATIONS VPR QTY VOLTAGE RANGE CHARGE RATE DISCHARGE RATE CAPACITY 25-50A 100Ah 25-50A...
-
Page 9: Parallel Connection
PARALLEL CONNECTION SERIES CONNECTION... - Page 10 NOTICE TO PREVENT DAMAGE AND EXTEND BATTERY LIFE PLEASE FOLLOW THESE PRECAUTIONS DO NOT DROP THE BATTERY DO NOT OPEN THE BATTERY DO NOT SHORT CIRCUIT THE BATTERY DO NOT SUBMERGE THE BATTERY IN WATER DO NOT CHARGE THE BATTERY ABOVE 14.6V DO NOT USE THE BATTERY AS A STARTER BATTERY DO NOT CHARGE THE BATTERY AT OR BELOW 32°F DO NOT CONNECT MORE THAN 4 BATTERIES IN SERIES...
- Page 11 40% off the published market price listed at the time of the offer. The offer is valid for 60 days after a representative from Expion360 has contacted the customer with the repairability decision.
- Page 12 This warranty shall be governed by and interpreted by the laws of Oregon. This warranty is understood to be the exclusive agreement between the parties relating to the subject matter hereof. No employee or representative of Expion360 is authorized to make any warranty in addition to those made in this agreement.
- Page 13 (541) 797-6714 support@expion360.com expion360.com...
