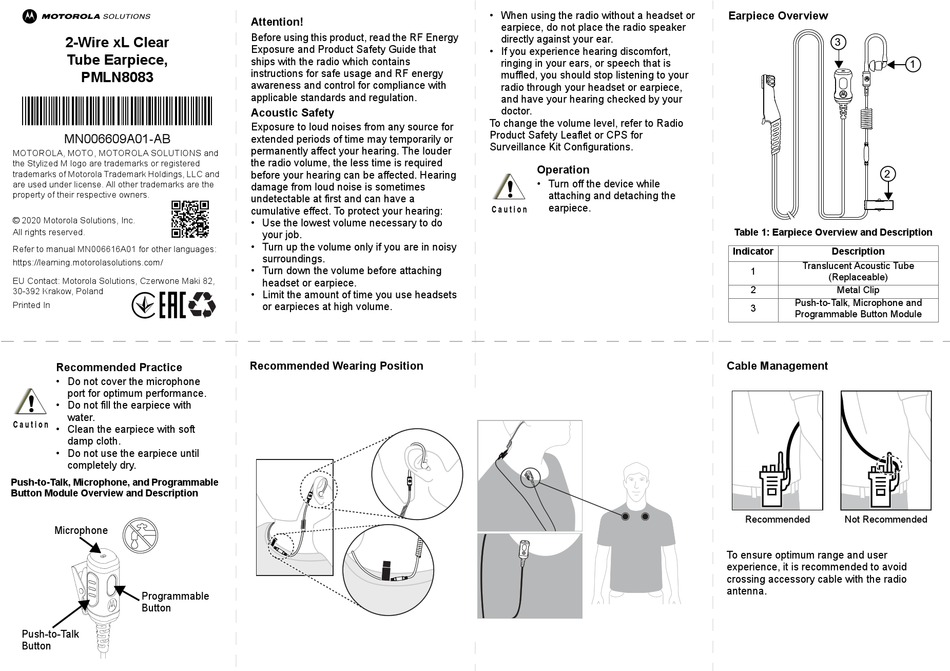

Motorola solutions PMLN8083 Quick Manual

m

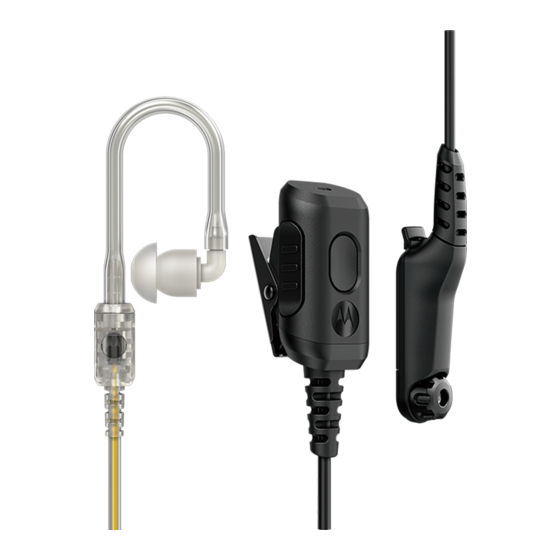

2-Wire xL Clear
Tube Earpiece,
PMLN8083
*MN006609A01*
MN006609A01-AB
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and
the Stylized M logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and
are used under license. All other trademarks are the
property of their respective owners.
© 2020 Motorola Solutions, Inc.
All rights reserved.
Refer to manual MN006616A01 for other languages:
https://learning.motorolasolutions.com/
EU Contact: Motorola Solutions, Czerwone Maki 82,
30-392 Krakow, Poland
Printed In
Recommended Practice
• Do not cover the microphone
port for optimum performance.
!
• Do not fill the earpiece with
water.
C a u t i o n
• Clean the earpiece with soft
damp cloth.
• Do not use the earpiece until
completely dry.
Push-to-Talk, Microphone, and Programmable
Button Module Overview and Description
Microphone
Programmable
Button
Push-to-Talk
Button

Attention!

Before using this product, read the RF Energy
Exposure and Product Safety Guide that
ships with the radio which contains
instructions for safe usage and RF energy
awareness and control for compliance with
applicable standards and regulation.

Acoustic Safety

Exposure to loud noises from any source for
extended periods of time may temporarily or
permanently affect your hearing. The louder
the radio volume, the less time is required
before your hearing can be affected. Hearing
damage from loud noise is sometimes
undetectable at first and can have a
cumulative effect. To protect your hearing:
• Use the lowest volume necessary to do
your job.
• Turn up the volume only if you are in noisy
surroundings.
• Turn down the volume before attaching
headset or earpiece.
• Limit the amount of time you use headsets
or earpieces at high volume.
Recommended Wearing Position
• When using the radio without a headset or
earpiece, do not place the radio speaker
directly against your ear.
• If you experience hearing discomfort,
ringing in your ears, or speech that is
muffled, you should stop listening to your
radio through your headset or earpiece,
and have your hearing checked by your
doctor.
To change the volume level, refer to Radio
Product Safety Leaflet or CPS for
Surveillance Kit Configurations.

Operation

• Turn off the device while
!
attaching and detaching the
earpiece.
C a u t i o n

Earpiece Overview

3
2
Table 1: Earpiece Overview and Description
Indicator Description
Translucent Acoustic Tube
1
(Replaceable)
2 Metal Clip
Push-to-Talk, Microphone and
3
Programmable Button Module
Cable Management
Recommended Not Recommended
To ensure optimum range and user
experience, it is recommended to avoid
crossing accessory cable with the radio
antenna.
1
